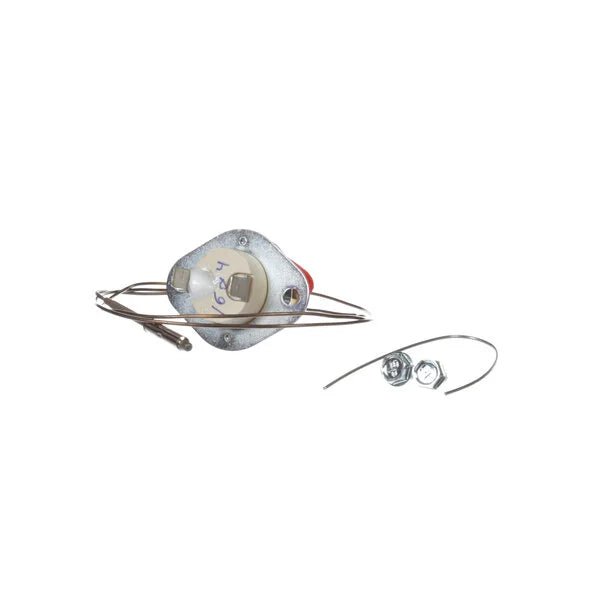

Vulcan Hart 00-913145-00001 Flame Switch Thermocouple Assembly

Vulcan Hart 00-913145-00001 Flame Switch Thermocouple Assembly

The Vulcan Hart 00-913145-00001 assembly is part of the flame-proving and burner-safety system in commercial cooking equipment. Its function is to help the appliance confirm that flame is present where it should be before the burner circuit is allowed to continue operating. In gas cooking equipment, heat demand alone is not enough; the machine must also prove ignition and maintain a safe flame signal. This assembly sits in that safety chain.

In the field, flame-sensing parts are often misdiagnosed because they interact with pilot flame quality, grounding, gas pressure, burner cleanliness, ignition controls, and wiring. When the pilot or burner flame heats the sensing element, the safety circuit receives the condition it expects. If the element is weak, mispositioned, contaminated, or electrically open, the appliance can behave as if there is no flame even when the operator can see one.

Failure Symptoms Technicians See

• Pilot lights, but the main burner does not stay enabled.
• Burner lights briefly and then shuts down because flame is not proven.
• Equipment works cold, then fails after expansion or vibration affects the connection.
• Flame signal is weak because the sensing tip is not properly engulfed by flame.
• Safety circuit opens intermittently during service.
• Technician sees pilot flame problems that must be corrected before condemning the assembly.

Diagnostic Approach

The technician should inspect flame shape, pilot cleanliness, sensing-element position, wire condition, and grounding before replacement. A lazy yellow flame, clogged pilot orifice, loose terminal, or cracked ceramic insulator can create the same shutdown behavior as a failed sensor assembly. If the flame is stable and correctly positioned but the circuit does not prove flame, the 00-913145-00001 assembly becomes a key replacement candidate. Related parts include the pilot burner, ignition module, gas valve, flame switch circuit, thermocouple connections, and equipment ground.

FAQ

What does this Vulcan assembly do?
It helps the appliance prove flame and maintain the burner safety circuit during operation.

What happens when it fails?
The burner may light and then shut down, or the equipment may refuse to continue the ignition sequence.

Can a dirty pilot mimic failure?
Yes. A weak or misdirected flame can keep the sensing element from proving flame correctly.

What should be inspected with it?
Pilot flame, gas pressure, ignition module, gas valve, wiring, terminals, and grounding should all be checked.
