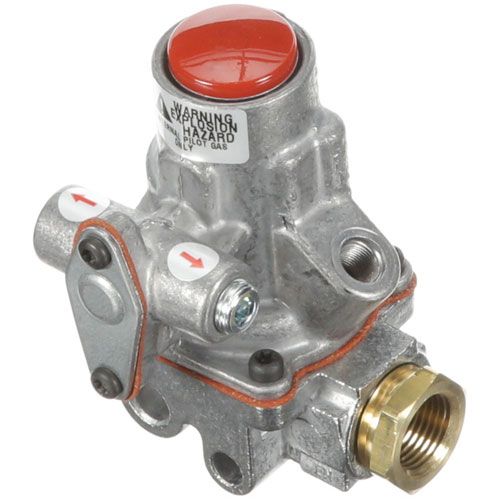

Vulcan Hart 00-498025 BASO H15AB-6 Pilot Safety Gas Valve

Vulcan Hart 00-498025 BASO H15AB-6 Pilot Safety Gas Valve

The Vulcan Hart 00-498025 is a BASO pilot safety gas shutoff valve used in compatible Vulcan commercial gas cooking equipment. Identified in Vulcan manufacturer parts manuals as the BASO H15AB-6, this safety component monitors the standing pilot flame through the associated thermocouple circuit.

When the pilot flame is extinguished and the thermocouple can no longer maintain the safety mechanism, the valve is designed to shut off the associated gas supply. This helps prevent uncontrolled gas flow through the appliance's designated safety circuit.

Vulcan manufacturer number 00-498025 is documented for select commercial griddles, ranges, and related cooking equipment. The original valve number, gas connections, thermocouple arrangement, appliance model, and serial number must be checked before ordering.

Important: This is a gas safety shutoff component, not a general-purpose gas control valve or pilot burner. Use only the manufacturer-approved replacement for the original equipment.

Manufacturer Product Specifications

• Equipment Manufacturer: Vulcan Hart
• Manufacturer Part Number: 00-498025
• Previous Manufacturer Number: 498025
• Component Manufacturer: BASO
• Valve Series: H15
• Manufacturer Valve Designation: H15AB-6
• Product Type: Pilot Safety Gas Shutoff Valve
• Main Gas Inlet: 3/8-inch Female NPT
• Main Gas Outlet: 3/8-inch Female NPT
• Pilot Connections: Confirm against the original BASO configuration and manufacturer documentation
• Reset: Manual Reset Button
• Safety Operation: Thermocouple-Monitored Flame Failure Shutoff
• Application: Compatible Commercial Gas Cooking Equipment
• Quantity: One Valve
• Gas Type: Verify the appliance's approved fuel and valve specifications
• Included Accessories: Confirm with supplier

Technical Specification Note: Supplier listings differ in their description of the pilot connection arrangement. Confirm the actual inlet and outlet ports, pilot fittings, and valve identification before purchase. Published catalog package dimensions should not be treated as installation dimensions.

Compatible Vulcan Hart Equipment Models

Manufacturer service manuals and replacement-parts catalogs identify Vulcan Hart 00-498025 for the following equipment configurations.

Vulcan Restaurant Series Griddles

• VCRG24-T
• VCRG36-T
• VCRG48-T
• WCRG24-T
• WCRG36-T
• WCRG48-T

Vulcan 900RX and MSA Griddles

• 924RX
• 936RX
• 948RX
• 960RX
• 972RX
• MSA24
• MSA36
• MSA48
• MSA60
• MSA72

Additional Vulcan Gas Range References

• Selected Challenger XL gas range configurations
• Selected Endurance gas range configurations

Compatibility Warning: These are documented manufacturer and distributor parts-catalog references, not a guarantee of fitment for every serial-number revision. Confirm that the original equipment's parts breakdown specifically identifies 00-498025.

How the BASO Pilot Safety Valve Works

The BASO H15 series is designed for standing-pilot gas burner systems. A thermocouple heated by the pilot flame provides the signal required to maintain the valve's safety mechanism during normal operation.

If the pilot flame goes out, the resulting change in the thermocouple signal allows the safety mechanism to close the gas flow path as designed.

The manual reset mechanism is part of the manufacturer's lighting and safety arrangement. Its operation must follow the applicable BASO and Vulcan equipment instructions.

This valve is not a replacement thermocouple, pilot burner, pressure regulator, or thermostat. Those components have separate functions within the gas-control system.

Common Symptoms Requiring Pilot Safety System Inspection

• Pilot flame does not remain established.
• Safety valve fails to remain in its normal operating state.
• Main burner gas supply is interrupted after pilot flame loss.
• Reset mechanism does not operate correctly.
• Visible damage appears on the valve housing.
• Gas leakage is suspected around a valve connection.
• Thermocouple or associated safety components show damage.
• Equipment fails its prescribed pilot safety test.

Technician Note: These symptoms do not automatically indicate a defective valve. Thermocouple problems, pilot flame conditions, gas pressure faults, damaged connections, and other safety-system problems can cause similar operating symptoms.

Technician Troubleshooting Guide

Qualified commercial gas equipment service personnel should evaluate the complete pilot safety system before replacing the valve.

• Verify the complete equipment model and serial number.
• Identify the original BASO valve model and manufacturer part number.
• Inspect the valve body for damage or corrosion.
• Check the original gas connections against the manufacturer parts documentation.
• Inspect the thermocouple and related safety circuit.
• Evaluate the pilot burner and flame-sensing arrangement using approved service procedures.
• Check for damaged or improperly installed tubing and fittings.
• Verify the appliance's specified gas supply conditions.
• Confirm that the replacement is approved for the original gas safety system.
• Perform the required manufacturer-prescribed safety verification before returning equipment to service.

Before You Order

1. Confirm the Vulcan Hart manufacturer number 00-498025.
2. Check whether the original valve is labeled BASO H15AB-6 or the corresponding manufacturer-approved configuration.
3. Record the appliance model and serial number.
4. Confirm the original gas inlet and outlet connections.
5. Verify the pilot tap arrangement and supplied fittings.
6. Check thermocouple compatibility using the original equipment documentation.
7. Confirm the approved fuel type and gas-control requirements.
8. Compare the valve body, reset-button configuration, and mounting clearance.
9. Verify the actual supplied valve's manufacturer and OEM or OEM-compatible status.
10. Confirm any separately required fittings or accessories.
11. Do not substitute a visually similar gas safety valve without manufacturer approval.

Installation and Gas Safety

Gas safety valve replacement must be performed by qualified and appropriately licensed commercial gas equipment service personnel using the applicable Vulcan Hart and BASO documentation.

Before service, the appliance must be made safe and the gas supply isolated according to approved procedures and applicable regulations.

The replacement valve must match the original equipment's gas safety requirements, inlet and outlet configuration, fuel specification, and thermocouple arrangement.

Following installation, qualified personnel must complete all manufacturer-required leak checks, pilot operation verification, and flame-failure safety testing before returning the equipment to service.

Safety Warning: Never bypass a thermocouple or gas safety shutoff device, defeat the reset mechanism, install unapproved fittings, or operate equipment with a suspected gas leak.

Frequently Asked Questions

1. What is Vulcan Hart 00-498025?

It is a Vulcan Hart manufacturer-listed BASO pilot safety gas shutoff valve used in compatible commercial gas cooking equipment.

2. What BASO valve model is associated with 00-498025?

Vulcan manufacturer parts manuals identify 00-498025 as a BASO H15AB-6 pilot safety valve.

3. What happens when the pilot flame goes out?

The BASO H15 safety mechanism is designed to shut off the associated gas supply when the thermocouple no longer detects the required pilot flame condition.

4. Which Vulcan equipment models use this valve?

Published manufacturer parts manuals include VCRG24-T, VCRG36-T, VCRG48-T, the 924RX through 972RX griddles, selected MSA models, and other compatible configurations. Verify the exact equipment parts breakdown.

5. What are the gas connection sizes?

Commercial replacement listings identify 3/8-inch female NPT main gas inlet and outlet connections. The pilot port configuration must be independently matched to the original valve.

6. Is 498025 the same as 00-498025?

Commercial OEM parts catalogs identify 498025 as an earlier reference replaced by 00-498025. Confirm the manufacturer-approved replacement for your equipment.

7. Can a faulty thermocouple cause symptoms similar to valve failure?

Yes. Problems with the thermocouple, pilot flame, related connections, or safety system may prevent normal valve operation. Diagnosis must be performed by qualified personnel.

8. How do I confirm the correct replacement pilot safety valve?

Compare the original manufacturer number, BASO model identification, equipment model and serial number, gas ports, thermocouple requirements, and approved manufacturer parts diagram.

Vulcan Hart Commercial Cooking Replacement Parts

PartsDirectOnline supplies commercial cooking replacement components, including gas safety valves, pilot burners, thermocouples, thermostats, ignition components, and related service hardware for restaurants, commercial kitchens, and equipment service technicians throughout the United States.

Browse our Vulcan Hart Parts collection for related commercial cooking replacement components.

Need Help Confirming Fitment? Call PartsDirectOnline at 631-873-0509 with the equipment model, serial number, and original gas valve information before ordering.
