Turbo Air R7253-080 OEM Power Relay – 25A 277VAC

Turbo Air R7253-080 OEM Power Relay – 25A 277VAC

The Turbo Air R7253-080 Power Relay is a manufacturer-identified electrical switching component used in compatible Turbo Air commercial refrigeration equipment. Published Turbo Air parts data identifies R7253-080 as a 25A / 277VAC power relay used within applicable high-load refrigeration control circuits.

A power relay allows a lower-power control circuit to switch a higher-current electrical load. Reliable relay operation is important because worn, overheated, damaged, or intermittent contacts can prevent the connected component from operating correctly, cause inconsistent refrigeration performance, or create excessive heat at the relay terminals.

When qualified electrical diagnosis confirms relay replacement is required, use Turbo Air part number R7253-080 as the primary identification reference and compare the original relay label, terminal layout, electrical rating, equipment model, and serial number before ordering.

Part Details & Specifications

• Manufacturer: Turbo Air
• Manufacturer Part Number: R7253-080
• MPN: R7253-080
• Part Type: Power Relay
• Published Contact Rating: 25A
• Published Voltage Reference: up to 277VAC
• Application: Commercial Refrigeration Equipment
• System: Electrical Control / Power Switching
• Function: Switching High-Current Refrigeration Loads

Current Replacement Information

Turbo Air R7253-080 is currently listed as obsolete / no longer available from Turbo Air by major OEM parts sources.

Current service-parts information identifies the replacement relay as:

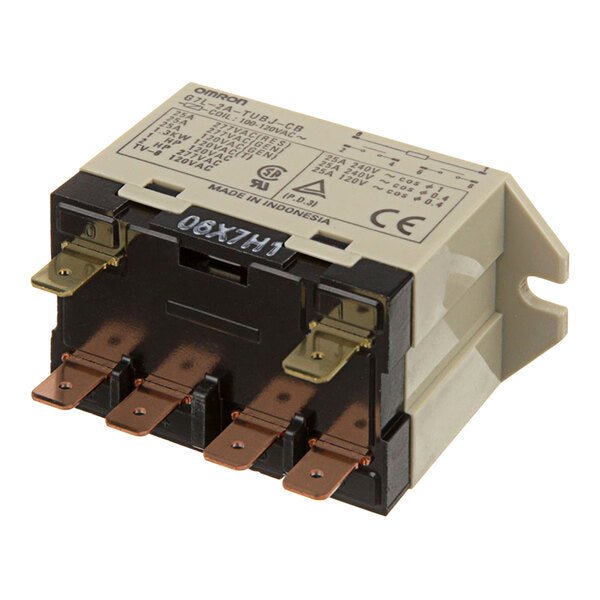

• Replacement: Omron G7L-2A-TUBJ-CB-AC100/120
• Published Rating: 25A
• Voltage References: 120V / 250V / 277V
• Terminal Configuration: 6 male flag terminals

Important: If the item being sold on this page is the replacement Omron relay rather than original Turbo Air old stock, describe it as a replacement for Turbo Air R7253-080 rather than as a current Genuine OEM Turbo Air relay.

What the Turbo Air R7253-080 Power Relay Does

The R7253-080 power relay switches the applicable electrical load when its control circuit is energized. This allows the equipment's control system to command higher-current refrigeration components without routing the full load directly through the lower-current control device.

Proper relay operation helps support:

• Reliable electrical load switching
• Consistent refrigeration-system operation
• Proper response to control signals
• Reduced intermittent electrical operation
• Stable connection of high-current loads
• Dependable commercial refrigeration performance

Published Turbo Air Model Fitment

Current commercial refrigeration parts data associates R7253-080 with Turbo Air models including:

• GSB49DF
• M3F24-1
• M3F47-2
• M3R47-2
• MSF23NM
• MSF49NM
• MSR23NM
• MSR49NM
• TGF23F
• TSF23SD
• TSF49SD
• TSF72SD
• TSR23SD
• TSR49SD
• TSR72SD
• TST60SD
• TUF48SD

Fitment Note: Model compatibility can vary by serial number, electrical revision, and production date. Verify R7253-080 against the equipment model, serial number, original relay, wiring diagram, and terminal arrangement before ordering.

Common Signs of a Power Relay Problem

Qualified commercial refrigeration technicians may inspect the R7253-080 relay when troubleshooting conditions such as:

• Connected load does not operate when commanded
• Relay operates intermittently
• Contacts remain stuck open or closed
• Electrical load cycles unexpectedly
• Relay housing becomes unusually hot
• Terminals show discoloration or heat damage
• Electrical arcing is visible around connections
• Relay clicks but the connected load does not operate
• Control signal is present but output does not switch correctly
• Loose or damaged terminal connections are present

These symptoms do not automatically confirm relay failure. Control boards, thermostats, wiring, supply voltage, connected loads, compressors, motors, and other electrical components can create similar symptoms. Diagnose the complete circuit before replacing the relay.

Relay Clicks but the Load Does Not Start

If the relay can be heard actuating but the connected refrigeration component does not operate, technicians should verify the relay contacts and downstream electrical circuit.

Inspect:

• Control voltage to the relay
• Relay contact continuity
• Supply voltage at the load side
• Terminal condition
• Wiring and connectors
• Connected motor, compressor, heater, or other load
• Associated overload or protection devices

Inspect for Heat-Damaged Terminals

Loose or high-resistance connections can generate heat at relay terminals and may damage an otherwise functional relay.

Inspect for:

• Burned terminal connectors
• Loose flag terminals
• Melted insulation
• Discolored wiring
• Corrosion
• Evidence of arcing
• Loose crimps

Any damaged wiring or connector should be corrected before the replacement relay is energized.

Power Relay vs. Control Board Problem

The relay and control board perform different functions.

• Control Board / Controller: Determines when the applicable refrigeration function should operate.
• Power Relay: Switches the electrical load when commanded by the control circuit.

A missing control signal can make a functional relay appear defective, while a relay with failed contacts may receive a correct control signal but fail to energize the connected load.

Power Relay vs. Failed Load

A relay may switch correctly while the connected compressor, fan motor, heater, or other electrical load has failed.

Before replacing the relay, qualified technicians should verify:

• Relay input/control signal
• Relay output voltage
• Connected load resistance or continuity where appropriate
• Supply voltage
• Protection devices
• Equipment wiring

Technician Checks Before Ordering

Before ordering a replacement for Turbo Air R7253-080, verify:

• Manufacturer part number R7253-080
• Complete Turbo Air equipment model
• Equipment serial number
• Original relay markings
• 25A contact requirement
• Applicable voltage rating
• Control / coil voltage
• Terminal configuration
• Number and orientation of terminals
• Mounting arrangement
• Connected electrical load
• Equipment wiring diagram

Do not select a power relay based solely on appearance. Similar relay housings can use different coil voltages, contact ratings, terminal arrangements, and internal switching configurations.

Commercial Refrigeration Applications

Turbo Air commercial refrigeration equipment is used in demanding foodservice environments including:

• Restaurants
• Commercial kitchens
• Supermarkets
• Convenience stores
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Bars
• Foodservice facilities

Installation & Electrical Safety Notes

Disconnect electrical power before servicing commercial refrigeration relays or high-current circuits.

Before removing the original R7253-080 relay, document:

• Every terminal position
• Wire locations
• Relay orientation
• Mounting position
• Control-circuit connections
• Load-circuit connections

Compare the replacement relay with the original component before transferring wiring.

After installation, qualified technicians should verify:

• Relay receives the correct control signal
• Relay switches normally
• Connected load operates correctly
• Electrical terminals remain secure
• No abnormal heating occurs
• No electrical arcing is present
• Equipment completes normal refrigeration cycles

Why Correct Turbo Air Part Identification Matters

Power relays can appear nearly identical while using different control voltages, contact ratings, terminal arrangements, mounting configurations, and equipment applications.

Using Turbo Air manufacturer part number R7253-080 provides the strongest historical identification point for the original relay. Because the original Turbo Air part is now listed as obsolete, also verify the current replacement configuration before ordering.

Frequently Asked Questions

What is Turbo Air R7253-080?

Turbo Air R7253-080 is a power relay historically used in compatible Turbo Air commercial refrigeration equipment.

What is the published contact rating?

Turbo Air parts listings identify R7253-080 as a 25A / 277VAC power relay.

Is Turbo Air R7253-080 still available from Turbo Air?

Current OEM parts sources list the original R7253-080 as obsolete or no longer available from Turbo Air.

What is the current replacement for R7253-080?

Current commercial service information identifies Omron G7L-2A-TUBJ-CB-AC100/120 as the replacement relay.

How many electrical terminals does the current replacement have?

Published service information identifies six male flag terminals.

Can a bad relay cause refrigeration components not to operate?

Yes. Failed or burned contacts can prevent the connected load from receiving power even when the control signal is present.

Can a relay click and still be bad?

Yes. Mechanical actuation does not guarantee that the power contacts are switching correctly.

Which Turbo Air models use R7253-080?

Published fitment references include GSB49DF, M3F24-1, M3F47-2, M3R47-2, MSF23NM, MSF49NM, MSR23NM, MSR49NM, TGF23F, TSF23SD, TSF49SD, TSF72SD, TSR23SD, TSR49SD, TSR72SD, TST60SD, and TUF48SD.

Can I replace R7253-080 with any 25A relay?

No. Verify control voltage, contact rating, terminal configuration, mounting, model, serial number, and electrical circuit before ordering.

How do I confirm R7253-080 is correct?

Verify manufacturer part number R7253-080, complete Turbo Air model and serial number, original relay label, control voltage, contact rating, terminals, mounting configuration, and wiring diagram.

Is professional installation recommended?

Yes. Commercial refrigeration power relays and high-current electrical circuits should be diagnosed and serviced by qualified refrigeration personnel.
