Turbo Air C962300102 Drawer Gasket

Turbo Air C962300102 Drawer Gasket

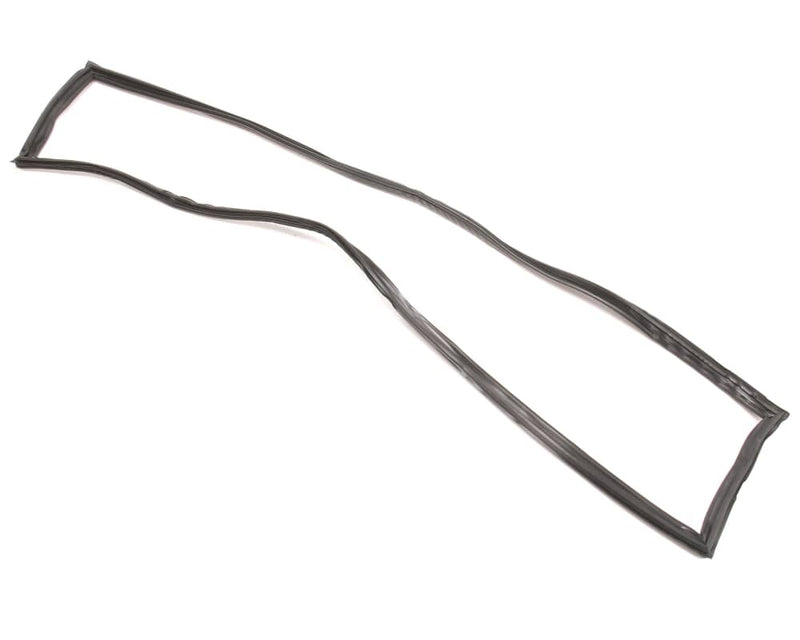

Turbo Air C962300102 identifies a replacement drawer gasket for selected TCBE52SDR equipment. Its listed outside dimensions are 8-1/4 by 43 inches. The narrow rectangular seal must match the drawer opening, mounting profile and corner layout of the original assembly.

Specifications

Weight is a published catalog reference rounded for the shipping field; actual packed weight can vary.

Fitment and ordering checks

Catalog model references include TCBE52SDR. Verify the complete model, serial number and installed drawer configuration; model references do not establish fit for every production revision.

Measure the original gasket outside edge to outside edge and compare the 8-1/4 by 43-inch outside dimensions. Inspect the drawer slides and front alignment before replacing the seal; a drawer that sits unevenly can leave a gap even with a new gasket.

When to inspect the seal

Torn corners, hardened sections, loose seating or visible gaps can indicate a worn gasket. Condensation or uneven temperatures also warrant checking the closing hardware and sealing surface. A temperature problem alone does not identify the gasket as the failed component.

Frequently asked questions

What is Turbo Air C962300102 used for?

C962300102 identifies a replacement drawer gasket for compatible Turbo Air commercial refrigeration equipment. The seal closes the gap between the drawer and cabinet to limit warm-air entry during normal operation.

What size should I compare?

Measure the original gasket outside edge to outside edge and compare the 8-1/4 by 43-inch outside dimensions. Inspect the drawer slides and front alignment before replacing the seal; a drawer that sits unevenly can leave a gap even with a new gasket.

Which equipment models are referenced?

Catalog model references include TCBE52SDR. Verify the complete model, serial number and installed drawer configuration; model references do not establish fit for every production revision.

Will a new gasket fix a drawer that does not close?

Not necessarily. Check the drawer slides, front alignment, mounting channel and sealing surface. A damaged slide or crooked drawer front can prevent even contact.

What should be checked during installation?

Follow the equipment service procedure, clean the mounting channel and avoid stretching the gasket. Seat the corners and straight sections evenly, then close the drawer and inspect contact around the full perimeter. Confirm normal closing movement and monitor cabinet temperature after service.

How can I verify C962300102 before ordering?

Call PartsDirectOnline at 631-873-0509 with part reference C962300102, the complete model and serial number, gasket measurements and details of the original mounting profile. Check whether the existing gasket was measured at its outside edges or attachment centerlines.

Browse commercial refrigerator door gaskets and Turbo Air replacement parts. Call 631-873-0509 for part-matching help.
