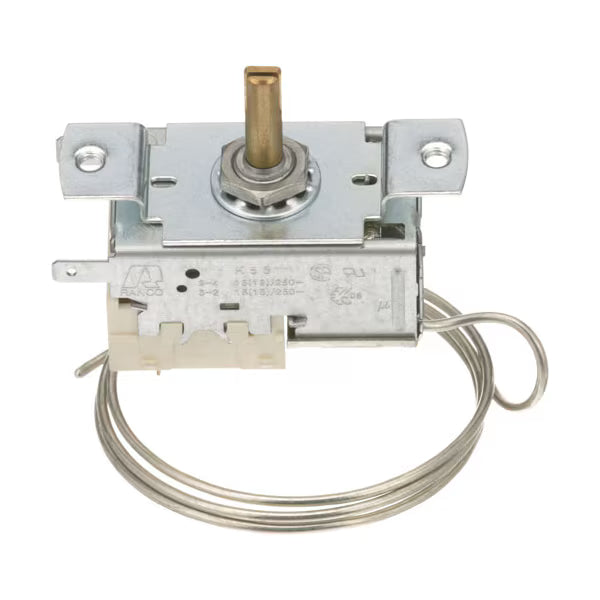

Turbo Air 30283L0100 OEM Thermostat – 28-1/4" Capillary

Turbo Air 30283L0100 OEM Thermostat – 28-1/4" Capillary

The Turbo Air 30283L0100 Thermostat is a genuine OEM mechanical refrigeration temperature control designed for compatible Turbo Air commercial refrigeration equipment. This thermostat uses a 28-1/4" plain-end capillary tube to sense temperature conditions and switch the refrigeration control circuit according to the equipment's operating requirements.

Reliable thermostat operation is critical to commercial refrigeration performance. A control that no longer senses or switches correctly can contribute to warm cabinet temperatures, excessive cooling, continuous compressor operation, irregular cycling, or temperature conditions that do not respond properly to control adjustment.

When qualified diagnosis confirms thermostat replacement is required, using the correct Turbo Air OEM 30283L0100 helps restore the original mechanical temperature-control configuration intended for compatible Turbo Air refrigeration equipment.

OEM Part Details & Specifications

• Manufacturer: Turbo Air
• OEM Part Number: 30283L0100
• MPN: 30283L0100
• Part Type: Mechanical Refrigeration Thermostat / Temperature Control
• Capillary Length: 28-1/4"
• Capillary End: Plain End
• Published Temperature Range: +21°F to +42°F
• Published Cut-In: +40°F
• Published Cut-Out: +21°F
• Application: Commercial Refrigeration Equipment
• System: Mechanical Temperature Control
• Function: Cabinet Temperature Regulation / Compressor Control

What the Turbo Air 30283L0100 Thermostat Does

The Turbo Air 30283L0100 temperature control responds to temperature through its sensing system and mechanically opens or closes the applicable refrigeration control circuit. Turbo Air documentation describes its mechanical thermostat as controlling compressor ON/OFF operation by sensing cabinet temperature.

Proper thermostat operation helps support:

• Stable refrigerated cabinet temperatures
• Proper compressor cycling
• Reliable response to changing cabinet temperature
• Normal cabinet pull-down
• Temperature recovery after door openings
• Reduced excessive compressor run time
• Consistent commercial refrigeration operation

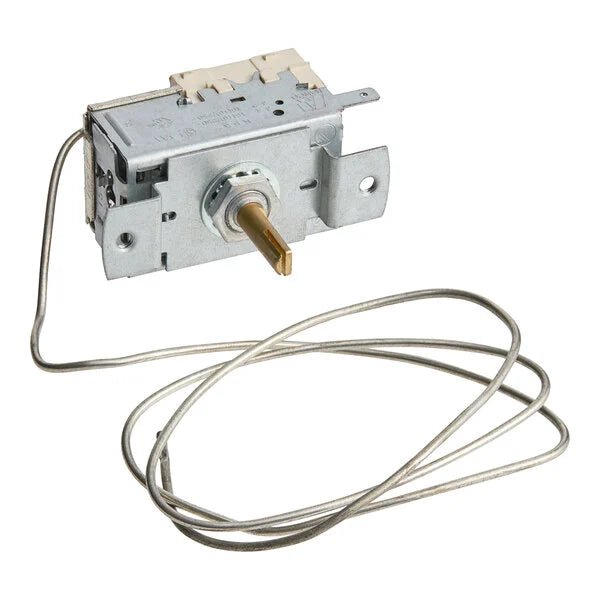

28-1/4" Plain-End Capillary Tube

The 30283L0100 thermostat is identified with a 28-1/4-inch plain-end capillary tube. Capillary length and sensing configuration are critical replacement details because the sensing element must reach the intended location without being stretched, crushed, kinked, or routed differently from the original installation.

Before ordering, compare the removed thermostat for:

• Capillary length
• Plain-end sensing configuration
• Sensing location
• Capillary routing
• Terminal arrangement
• Control shaft
• Mounting pattern
• Original thermostat markings

Published Operating Temperature Range

Current commercial service-parts data specifies the Turbo Air 30283L0100 thermostat with the following operating references:

• Temperature Range: +21°F to +42°F
• Cut-In: +40°F
• Cut-Out: +21°F

These specifications should be matched to the original equipment application and service documentation. Do not substitute another thermostat solely because the capillary length or physical appearance appears similar.

Verified Turbo Air Model Fitment

Published service-parts data currently associates Turbo Air 30283L0100 with compatible models including:

• MST28
• MST2812
• MST36
• MST48
• MST4818
• MST60
• MST6024
• MST72
• MST7230
• MUR28
• MUR48
• MUR60
• MUR72
• TSF49
• TSR23
• TSR23D
• TSR23SD
• TSR49
• TSR49D
• TSR49SD
• TST28SD
• TST28SD12
• TST36SD
• TST48SD
• TST48SD18
• TST60SD
• TST60SD24
• TST72SD
• TST72SD30
• TUR28SD
• TUR48SD
• TWR48SD
• TWR48SDD4

Fitment Note: Turbo Air equipment can vary by serial number, production revision, thermostat configuration, and electrical design. Always verify OEM part number 30283L0100, complete model, serial number, original thermostat, capillary arrangement, terminals, and service documentation before ordering.

Common Signs of a Thermostat Problem

Qualified commercial refrigeration technicians may inspect Turbo Air 30283L0100 when troubleshooting conditions such as:

• Cabinet temperature remains warmer than intended
• Cabinet becomes excessively cold
• Compressor runs continuously
• Compressor does not start when cabinet temperature rises
• Refrigeration cycles too frequently
• Temperature fluctuates excessively
• Control adjustment produces little or no response
• Equipment operates intermittently
• Capillary tube is kinked or physically damaged
• Electrical terminals show overheating or corrosion
• Thermostat contacts operate inconsistently

These symptoms do not automatically confirm thermostat failure. Sensors, wiring, relays, compressor problems, evaporator airflow, condenser restrictions, door gaskets, refrigerant-system conditions, and other controls can produce similar symptoms. Diagnose the complete refrigeration system before replacing the thermostat.

Diagnosing a Cabinet That Runs Too Warm

A warm Turbo Air cabinet does not automatically have a failed thermostat.

Qualified technicians should inspect applicable:

• Actual cabinet temperature
• Thermostat response
• Compressor operation
• Evaporator fan operation
• Condenser airflow
• Condenser cleanliness
• Refrigerant-system performance
• Door gasket condition
• Evaporator frost pattern
• Electrical connections

Diagnosing a Cabinet That Runs Too Cold

A thermostat that does not open the refrigeration circuit at the proper point can contribute to excessive cooling or unusually long compressor run times.

Inspect:

• Thermostat switching operation
• Capillary condition
• Control setting
• Sensing position
• Associated wiring
• Relay or contactor operation where applicable
• Actual cabinet temperature

Inspect the Capillary Tube

The capillary is part of the thermostat's sealed sensing system and must be handled carefully.

Inspect for:

• Sharp bends
• Kinks
• Crushed sections
• Cuts
• Pinching
• Incorrect routing
• Contact with sharp cabinet edges

Do not cut, shorten, splice, or sharply bend the capillary tube.

Thermostat vs. Refrigeration-System Problem

A temperature complaint may originate from several different refrigeration-system conditions. Before replacing the thermostat, technicians should confirm whether the control is actually switching correctly.

Other possible causes include:

• Low refrigerant charge
• Restricted refrigerant flow
• Dirty condenser
• Failed evaporator fan
• Blocked airflow
• Compressor problems
• Door gasket leakage
• Excessive door openings
• Improper product loading

Inspect Wiring & Electrical Connections

A damaged electrical connection can prevent a functional thermostat from controlling the refrigeration circuit correctly.

Inspect for:

• Loose terminals
• Burned connectors
• Discolored wiring
• Melted insulation
• Corrosion
• Damaged crimps
• Broken conductors
• Evidence of electrical arcing

Correct damaged wiring before installing a replacement thermostat.

Technician Checks Before Ordering

Before ordering Turbo Air 30283L0100, verify:

• OEM part number 30283L0100
• Complete Turbo Air equipment model
• Equipment serial number
• 28-1/4" capillary length
• Plain-end capillary configuration
• Original thermostat markings
• Terminal arrangement
• Electrical rating
• Mounting arrangement
• Control shaft and knob configuration
• Capillary routing and sensing location

Do not select a refrigeration thermostat by appearance alone. Similar controls can use different temperature ranges, capillary lengths, electrical ratings, terminal arrangements, and equipment applications.

Commercial Refrigeration Applications

Turbo Air commercial refrigeration equipment using mechanical thermostats is commonly installed in:

• Restaurants
• Commercial kitchens
• Supermarkets
• Convenience stores
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Bars
• Foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing commercial refrigeration temperature controls.

Before removing the original thermostat, document:

• Wire positions
• Terminal locations
• Thermostat orientation
• Mounting arrangement
• Capillary routing
• Sensing location
• Control-knob position

Compare the replacement Turbo Air 30283L0100 with the original component before installation.

After installation, operate the equipment through normal refrigeration cycles and verify:

• Compressor starts when cooling is required
• Compressor cycles off appropriately
• Temperature adjustment produces the expected response
• Cabinet pulls down normally
• Final cabinet temperature remains stable
• No abnormal electrical heating occurs

Why Correct Turbo Air OEM Identification Matters

Mechanical refrigeration thermostats can appear nearly identical while having different temperature ranges, electrical ratings, capillary lengths, terminals, and equipment applications.

Using Turbo Air OEM part number 30283L0100 together with the verified 28-1/4" plain-end capillary and published temperature-control specifications provides the strongest replacement reference.

Frequently Asked Questions

What is Turbo Air 30283L0100?

Turbo Air 30283L0100 is a genuine OEM mechanical refrigeration thermostat / temperature control used in compatible Turbo Air commercial refrigeration equipment.

How long is the capillary tube?

The thermostat is identified with a 28-1/4" plain-end capillary tube.

What temperature range is 30283L0100 rated for?

Published service data identifies a temperature range of approximately +21°F to +42°F.

What are the published cut-in and cut-out temperatures?

Current service information lists approximately +40°F cut-in and +21°F cut-out.

What does the Turbo Air thermostat control?

Turbo Air documentation describes the mechanical thermostat as controlling compressor ON/OFF operation based on sensed cabinet temperature.

Can a bad thermostat cause the refrigerator to run continuously?

Yes. A thermostat that does not open the refrigeration circuit correctly can contribute to continuous compressor operation.

Can a damaged capillary cause incorrect temperature control?

Yes. A kinked, crushed, or damaged capillary sensing system can prevent the thermostat from responding correctly.

Can I replace 30283L0100 with another thermostat that has the same capillary length?

No. Verify temperature range, electrical rating, terminals, mounting, capillary configuration, model, and serial number as well.

Is 302-83L0100 related to 30283L0100?

Yes. Parts Town lists the older 302-83L0100 reference as obsolete and replaced by 30283L0100.

How do I confirm Turbo Air 30283L0100 is correct?

Verify OEM part number 30283L0100, complete Turbo Air model and serial number, original thermostat markings, 28-1/4" capillary, terminals, mounting, and sensing arrangement before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.
