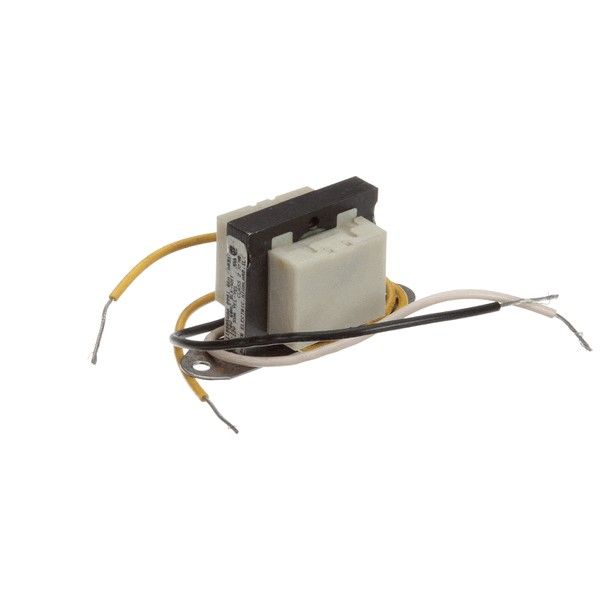

True 831970 Control Transformer – BE110805GAA

True 831970 Control Transformer

The True 831970 control transformer, identified as BE110805GAA, supplies power to the matched control circuit in applicable True commercial refrigeration equipment. True identifies this part for digital Fahrenheit applications and the Dixell XR160C-0P0F1 control, with replacement references 831909 and 015-0054-01.

Confirm the cabinet’s model, serial number and control configuration before ordering. A matching controller brand or similar-looking transformer does not establish compatibility.

Part Details and Specifications

• Manufacturer part reference: True 831970

• Transformer identification: BE110805GAA

• Replaces: 831909 and 015-0054-01, where specified by True

• Control reference: Dixell XR160C-0P0F1

• Application reference: Digital Fahrenheit controls

• Manufacturer-listed dimensions: 3.50″ L × 2.65″ W × 1.85″ H

• Manufacturer-listed part weight: 0.35 lb; packaged shipping weight may differ

Compatibility and Ordering

Verify True 831970 against the parts information for your specific cabinet. Compare the original transformer’s identification, electrical ratings, mounting arrangement and wire connections with the equipment wiring diagram.

Do not assume this transformer fits every True refrigerator or freezer, or every Dixell controller. Cabinet production changes and control configurations can affect the required part.

Technician Service Notes

A blank control display or missing secondary power can have several causes. Before replacing the transformer, a qualified technician should check the incoming supply, wiring connections and downstream circuit for faults.

Overheating, damaged insulation or an incorrect secondary output warrants further diagnosis. Correct any short circuit or excessive load before installing a replacement. Disconnect and isolate equipment power before service; electrical testing should be performed by a qualified technician.

Frequently Asked Questions

What is True 831970 used for?
It is a control transformer listed by True for digital Fahrenheit applications and the Dixell XR160C-0P0F1 control in applicable equipment.

What does BE110805GAA identify?
BE110805GAA is the transformer identification associated with True part number 831970. Compare this marking with the original component and cabinet parts documentation.

Does this replace True 831909?
True lists 831909 and 015-0054-01 as replacement references for 831970. Confirm the replacement applies to your cabinet and control configuration before ordering.

Will it work with any Dixell controller?
No universal compatibility is established. The manufacturer identifies XR160C-0P0F1; other controller designations require separate verification.

What are the dimensions and weight?
True lists the part at 3.50″ long × 2.65″ wide × 1.85″ high, with a part weight of 0.35 lb. Shipping packaging can increase the shipment’s weight and dimensions.

What should I check before ordering?
Confirm the equipment model and serial number, original part markings, controller designation, primary and secondary electrical ratings, mounting and connections. Use the cabinet wiring diagram and applicable parts documentation.

Need Help Matching Your Part?

Contact PartsDirectOnline with your cabinet model, serial number and clear photos of the original transformer and its label.

Call: 631-873-0509

Explore our True refrigeration parts guide for additional part-selection guidance.
