True 802804 OEM Universal BR1 Temperature Control Kit

True 802804 OEM Universal BR1 Temperature Control Kit

The True 802804 Universal Control Kit BR1 is a genuine OEM electronic refrigeration control kit designed for compatible True commercial refrigerators and freezers. This complete retrofit kit combines the LAE BR1 temperature controller, digital display, temperature probes, display cable, programming control, electrical connectors, mounting hardware, and installation components required for the applicable True refrigeration control system.

Reliable electronic temperature control is critical to commercial refrigeration performance. A failed controller, damaged probe, faulty display, poor electrical connection, or incorrect control input can contribute to unstable cabinet temperatures, compressor-control problems, abnormal refrigeration cycling, display faults, intermittent operation, or equipment that does not respond correctly to temperature changes.

When qualified diagnosis confirms a BR1 control-system replacement is required, using the correct True OEM 802804 Universal Control Kit helps restore the temperature sensing, display, programming, and refrigeration-control configuration intended for compatible True equipment.

OEM Part Details

• Manufacturer: True Manufacturing
• OEM Part Number: 802804
• MPN: 802804
• Part Type: Universal BR1 Temperature Control Kit
• Control Family: LAE BR1
• Application: Commercial Refrigeration
• System: Electronic Temperature Control
• Function: Temperature Sensing, Display, Programming & Refrigeration Control
• Approx. Kit Length: 7.75"
• Approx. Kit Width: 7.75"
• Approx. Kit Height: 2.00"
• Approx. Weight: 1.2 lb.

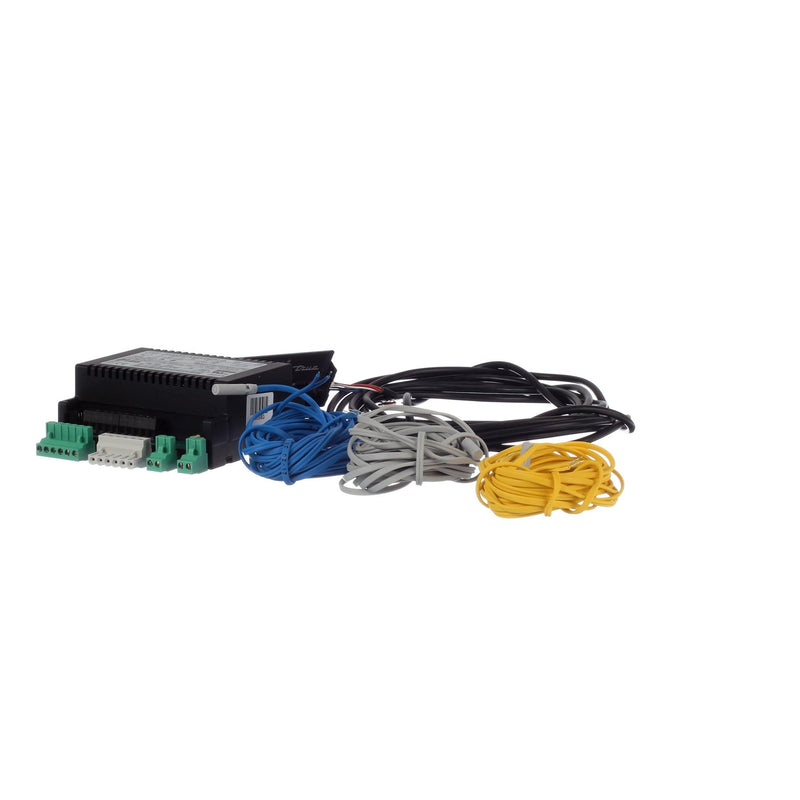

True 802804 Kit Includes

• 871083: LAE BR1 Temperature Control
• 960461: Temperature Probe
• 970103: Temperature Probe
• 970102: Temperature Probe
• 976439: Display Cable
• 971381: Display
• 226994: Program Control
• 222046: Instructions
• 801489: Wire Label
• 4 × 802203: Clamps
• 4 × 830592: Screws
• 802149: Cable Tie
• 8 × 802179: Terminals
• 943173: Connector
• 943174: Connector
• 2 × 937360: Connectors

What the True 802804 BR1 Control Kit Does

The True 802804 provides the central electronic temperature-control components required by compatible True refrigeration equipment. Temperature probes provide operating information to the LAE BR1 controller, while the controller processes those inputs and manages applicable refrigeration outputs according to the programmed control logic.

The included display provides the visible operator interface, while the program control and installation hardware support the complete retrofit arrangement.

Proper BR1 control-system operation helps support:

• Stable refrigerated cabinet temperatures
• Reliable probe input
• Consistent refrigeration cycling
• Proper compressor operation
• Normal response to temperature changes
• Accurate visible control information
• Reliable electronic refrigeration operation
• Consistent product-storage conditions

Universal BR1 Retrofit Kit

True identifies 802804 as a Universal Control Kit BR1. The kit is more than a replacement controller alone because it includes the controller, display, display cable, probes, programming control, connectors, terminals, clamps, screws, and other installation hardware.

This makes 802804 different from control-only or smaller BR1 retrofit kits. Use the exact True OEM number when determining which assembly the equipment requires.

802804 vs. 219716

True 802804 and True 219716 are different OEM kits.

• 802804: Universal BR1 Control Kit with controller, display, three probes, program control, connectors, terminals, clamps, screws, cable tie, wire label, and instructions.
• 219716: LAE BR1 temperature control / display / probe retrofit kit with fewer installation components.

Both may use several of the same core BR1 components, but they are not interchangeable solely because the controller or display looks similar. Always verify the exact True OEM kit required for the cabinet.

Verified True Equipment Examples

True's current OEM catalog lists 802804 on multiple model-specific parts pages, including examples such as:

• T-23F-2-MC
• T-23F-2-MC-BK
• STR2RRI-2S
• STR2RPT-2G-2G
• STA1RPT-1S-1S
• STA3F-3S
• GDM-72F-LD Dollar General

Fitment Note: This is not a complete compatibility list. True recommends confirming the exact cabinet model and serial number before purchasing electronic control components. Production revisions and control-system changes can affect fitment.

Common Signs of a BR1 Control-System Problem

• Cabinet temperature does not match the intended setting
• Temperature display remains blank
• Displayed temperature is incorrect or unstable
• Compressor does not start when expected
• Refrigeration runs continuously
• Equipment cycles irregularly
• Controller resets intermittently
• Probe-related fault or abnormal reading is present
• Control outputs do not respond correctly
• Connectors or terminals show heat damage
• Moisture or corrosion is present around the control system

These symptoms do not automatically confirm failure of the 802804 kit. Probe problems, wiring, power supply, relays, compressor issues, fan motors, poor connections, or refrigeration-system faults can produce similar symptoms. Diagnose the complete control system before replacing the kit.

Controller vs. Probe Diagnosis

The LAE BR1 controller depends on accurate information from its temperature probes. A damaged or incorrectly installed probe can create abnormal temperature readings and control behavior even when the main controller remains functional.

Inspect the supplied probe circuits for:

• Damaged sensing probes
• Incorrect probe placement
• Broken probe wiring
• Loose electrical connectors
• Corrosion
• Moisture contamination
• Pinched or damaged harnesses

The 802804 kit includes True probe numbers 960461, 970102, and 970103.

Controller vs. Display Diagnosis

The controller and display perform separate but connected functions.

• 871083 Controller: Processes sensor information and manages applicable refrigeration control outputs.
• 971381 Display: Provides the operator-visible interface.
• 976439 Display Cable: Connects the applicable display and control assembly.

A blank or abnormal display does not automatically confirm controller failure. The display, display cable, wiring, connector, or power-supply circuit may also require inspection.

Programming Control

The True 802804 kit includes 226994 Program Control. Programming is an important part of electronic refrigeration-control replacement because compatible True cabinets may require the controller to operate with equipment-specific parameters.

Always verify the complete True model and serial number before installation so the control can be configured correctly for the cabinet.

Inspect Wiring & Connectors

Loose, damaged, corroded, or overheated electrical connections can create symptoms similar to a failed electronic controller.

Inspect for:

• Loose plugs
• Broken locking tabs
• Corroded terminals
• Heat-damaged connectors
• Broken conductors
• Pinched wiring
• Moisture contamination
• Loose crimps
• Previous improper wiring repairs

Correct damaged wiring or connections before installing the replacement kit.

Inspect for Moisture & Electrical Damage

Electronic refrigeration controls are sensitive to moisture, shorts, excessive heat, incorrect voltage, and poor electrical connections.

Inspect the original control system for:

• Burned components
• Discolored terminals
• Corrosion
• Moisture residue
• Damaged connectors
• Loose components
• Evidence of electrical arcing

If an external electrical problem damaged the original control, correct the underlying cause before installing the replacement kit.

Technician Checks Before Ordering

• OEM part number 802804
• Complete True equipment model
• Equipment serial number
• Original controller identification
• BR1 control-system configuration
• Display configuration
• Probe arrangement
• Harness and connector layout
• Mounting arrangement
• Required programming information
• Existing control-system revision

Do not select an electronic refrigeration control kit by appearance alone. Similar True BR1 controls may use different programming, probes, connectors, installation hardware, or equipment-specific configurations.

Commercial Refrigeration Applications

True commercial refrigeration equipment using BR1 electronic controls is commonly found in:

• Restaurants
• Commercial kitchens
• Supermarkets
• Convenience stores
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Bars
• Foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing commercial refrigeration electronic controls.

Before removing the original control system, photograph or document:

• Controller wiring
• Display connections
• Probe locations
• Probe wiring
• Connector positions
• Control mounting
• Display mounting
• Harness routing

Compare all components in the True 802804 kit with the original control arrangement before installation.

After installation and correct programming, qualified technicians should verify:

• Controller powers normally
• Display operates correctly
• Probe readings are reasonable
• Compressor responds correctly
• Refrigeration cycles normally
• No probe faults are present
• No intermittent resets occur
• Cabinet pulls down correctly
• Final cabinet temperature remains stable

Why Correct True OEM Identification Matters

Electronic refrigeration control kits can appear nearly identical while containing different hardware, programming accessories, probes, connectors, and installation components.

Using True OEM part number 802804 as the primary identification reference helps distinguish this Universal BR1 Control Kit from other True BR1 control kits and control-only replacements.

Frequently Asked Questions

What is True 802804?

True 802804 is a genuine OEM Universal BR1 Control Kit used in compatible True commercial refrigeration equipment.

What controller comes in True 802804?

The kit includes True 871083 LAE BR1 temperature control.

Does True 802804 include a display?

Yes. It includes True 971381 display and 976439 display cable.

Does True 802804 include temperature probes?

Yes. The kit includes True probes 960461, 970102, and 970103.

Does True 802804 include a programming control?

Yes. The kit includes 226994 Program Control.

What other installation hardware is included?

The kit includes connectors, terminals, clamps, screws, a cable tie, wire label, and installation instructions in addition to the controller, display, probes, cable, and program control.

What are the approximate package dimensions?

True lists the kit at approximately 7.75" long x 7.75" wide x 2.00" high.

Is True 802804 the same as True 219716?

No. Both are BR1-related control kits, but 802804 is the larger Universal BR1 Control Kit with additional programming and installation components.

Can a bad probe make the controller appear defective?

Yes. Incorrect probe input can cause abnormal temperature readings or control behavior even when the controller itself remains functional.

Can I replace 802804 with a BR1 controller that looks similar?

No. Verify the exact OEM number, equipment model, serial number, programming requirements, probes, display, connectors, and installation hardware before ordering.

How do I confirm True 802804 is correct?

Verify OEM part number 802804, the complete True model and serial number, original control system, probe arrangement, display configuration, connector layout, and programming requirements before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration electronic controls should be diagnosed, programmed, and installed by qualified refrigeration service personnel.
