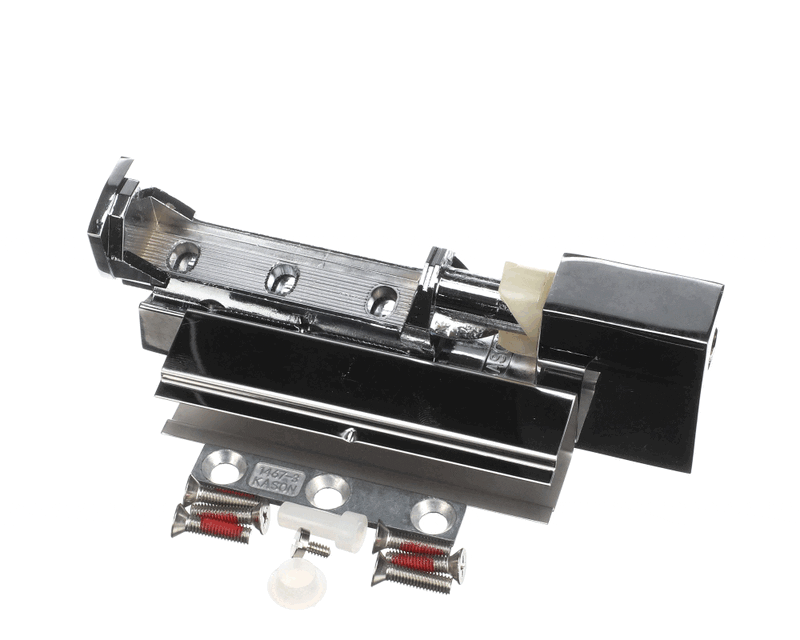

Traulsen SER-28583-00 Cam-Lift Glide Hinge Assembly, 1-5/8 Inch Offset

Traulsen SER-28583-00 Cam-Lift Glide Hinge Assembly, 1-5/8 Inch Offset

The Traulsen SER-28583-00 cam-lift glide hinge assembly, 1-5/8 inch offset is a commercial replacement part identified by the manufacturer reference shown below. It supports the intended movement and alignment of the refrigerator door. Correct identification matters because components that share a general appearance can differ in mounting, electrical characteristics, dimensions or operating function.

Offset is the spacing needed to align the door and cabinet mounting surfaces. Compare that spacing and the mounting pattern; a matching finish alone is insufficient.

Use the equipment model, serial number and existing part identification together when selecting this cam-lift door hinge. The listed specifications describe the researched reference; they do not establish universal compatibility across Traulsen equipment. Inspect the related system before ordering so a separate wiring, alignment, airflow or drainage problem is not mistaken for failure of this component.

Part Identification & Specifications

• Compatible equipment brand: Traulsen
• Manufacturer part-number reference: SER-28583-00
• Product type: Cam-Lift Door Hinge
• Product classification: Commercial Replacement Part
• Offset: 1-5/8 inches
• Design: Cam-lift glide hinge
• Assembly style: New style
• Reference catalogue weight: 1.3 lb

Function & Application

This cam-lift door hinge supports the intended movement and alignment of the refrigerator door. Its role should be checked against the equipment parts diagram and service documentation, including any production changes affecting the assembly.

Compatibility & Ordering Reference

Reference-catalogue equipment examples: G12000-032, G22010. These examples are not an exhaustive fit list. Confirm the complete model and serial number before ordering.

Do not assume that another part number supersedes this reference unless the equipment manufacturer documents that replacement for the specific unit.

Symptoms to Investigate

Reasons to inspect this component include excessive play, scraping, a door that sags or will not return smoothly, or visible damage to the particular hinge component. These symptoms are diagnostic clues, not proof that this part has failed.

Technician Diagnostic Checks

• Support the door before loosening hardware
• Inspect pivot wear, mounting holes and bracket alignment
• Check cams, bushings and stops separately
• Inspect the gasket and cabinet level so their faults are not mistaken for hinge failure

Document the findings before replacing parts. Use the equipment service procedure and correct test equipment; component appearance alone does not establish a service diagnosis.

Before You Order

• Confirm manufacturer reference SER-28583-00 and the complete equipment model and serial number.
• Compare the existing part with the listed specifications and mounting arrangement.
• Offset is the spacing needed to align the door and cabinet mounting surfaces. Compare that spacing and the mounting pattern; a matching finish alone is insufficient.
• Verify whether related fasteners, fittings, keys, sensors or other service items are included or required separately.
• Confirm the supplied item and its provenance before releasing the order.

Installation & Return-to-Service Checks

Service should be performed by personnel qualified for the equipment and component. Isolate relevant power and support moving parts before disassembly. Record the original mounting, connections and routing, then follow the equipment-specific service procedure.

Cycle the door several times and check for smooth travel, correct stopping position and even gasket contact. Verify that fasteners remain secure.

Maintenance & Related Components

During routine service, inspect the surrounding mounting points and the related components identified in the diagnostic checks. Correct the cause of wear, moisture, vibration or misalignment before fitting a replacement. Use cleaning and maintenance methods specified for the equipment and materials.

Frequently Asked Questions

What is Traulsen SER-28583-00?

It is the manufacturer reference for this cam-lift door hinge. The component supports the intended movement and alignment of the refrigerator door.

Which specifications should I compare?

Offset: 1-5/8 inches; Design: Cam-lift glide hinge; Assembly style: New style. Also compare the original mounting and connection arrangement.

Will it fit every Traulsen unit?

No. Verify the complete model, serial number and manufacturer reference. Similar-looking components may belong to different equipment revisions.

What should I check before replacing it?

Support the door before loosening hardware. Inspect pivot wear, mounting holes and bracket alignment. Symptoms may come from related components, so diagnose the system before ordering.

What is the key ordering caution for this part?

Offset is the spacing needed to align the door and cabinet mounting surfaces. Compare that spacing and the mounting pattern; a matching finish alone is insufficient.

Is the listed weight a packed shipping weight?

The reference catalogue lists 1 lb. Packed shipping weight has not been measured and can differ with packaging or supplied assembly contents.

Is this guaranteed to be genuine OEM?

Genuine OEM manufacture of the supplied item has not been independently confirmed. It is described as a Commercial Replacement Part using the researched manufacturer reference.
