Traulsen 322-09525-00 Evaporator Coil

Traulsen 322-09525-00 Evaporator Coil

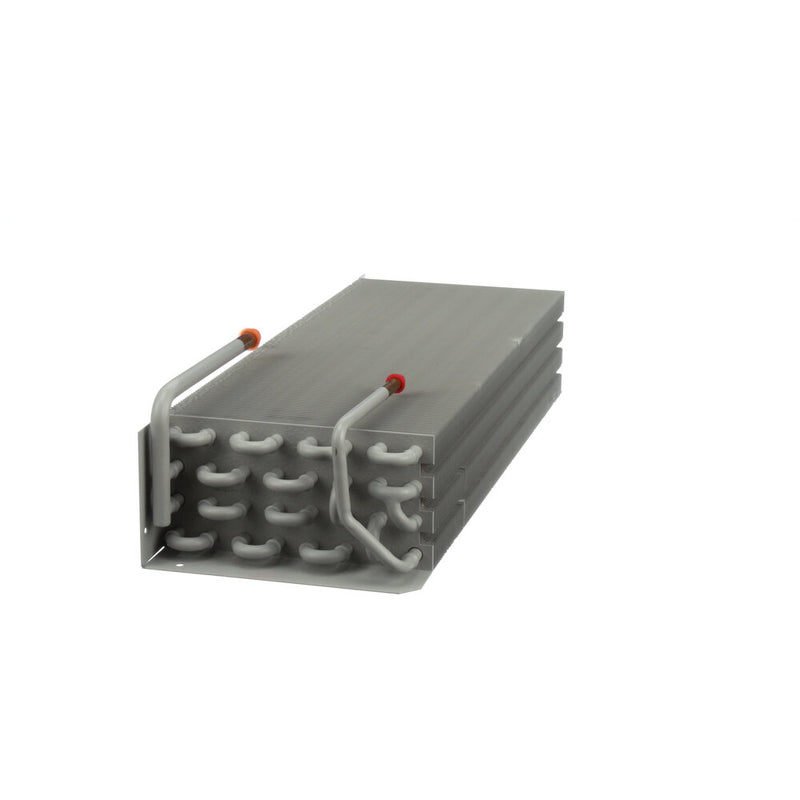

This coated refrigerator evaporator coil is listed for selected Traulsen equipment, including AHT132WUT and G10000 configurations. Compare the part reference and tube connections when selecting a replacement.

Use part reference 322-09525-00 when checking the equipment parts diagram or preparing a replacement order. Matching the correct coil helps your service team plan the repair around the cabinet configuration.

Specifications

Weight is a catalog reference; packed shipment weight can vary.

Referenced equipment models

AHT132WPUT, AHT132WUT, AHT232N, AHT232NUT, ARI132LUT, DHT232NUT, G10000, G10000MC, G20000, G20000MC, RHT132WUT, RHT132WUTHHS

Confirm the full model, serial number and production revision before ordering. These references do not imply compatibility with every version of a model.

Replacement planning

Compare the original coil's dimensions, connection orientation and mounting points with the specifications above. Have the installation requirements checked before removing the existing component.

Frequently asked questions

What is Traulsen 322-09525-00 used for?

It is an evaporator coil referenced for compatible Traulsen commercial refrigeration equipment. Match the complete part number to the equipment parts list before ordering.

Which equipment models are referenced?

Catalog references include AHT132WPUT, AHT132WUT, AHT232N, AHT232NUT, ARI132LUT, DHT232NUT. The model list is a starting point: the cabinet serial number, production revision and original coil configuration must also match.

What dimensions should I compare?

Compare the overall dimensions (4" × 8" × 22-5/8") with the existing coil. Also check the finned section, mounting points, tube positions and available cabinet clearance; equal dimensions alone do not establish interchangeability.

Does the listing include the complete cooling assembly?

This listing identifies the evaporator coil. Confirm any required fans, controls, valves, heaters or mounting hardware separately against the equipment parts diagram.

How do I confirm refrigerant and connection compatibility?

Use the equipment data plate and current service documentation. Have a qualified refrigeration technician check refrigerant requirements, circuit layout and connection sizes before installation.

Can PartsDirectOnline help confirm the part?

Call 631-873-0509 with part reference 322-09525-00, the complete equipment model and serial number. Details from the original coil and its connections help resolve fitment questions.
