Randell Black Recessed Door Handle HD HDL0103

Randell HD HDL0103 Black Recessed Door Handle – 7-7/16"

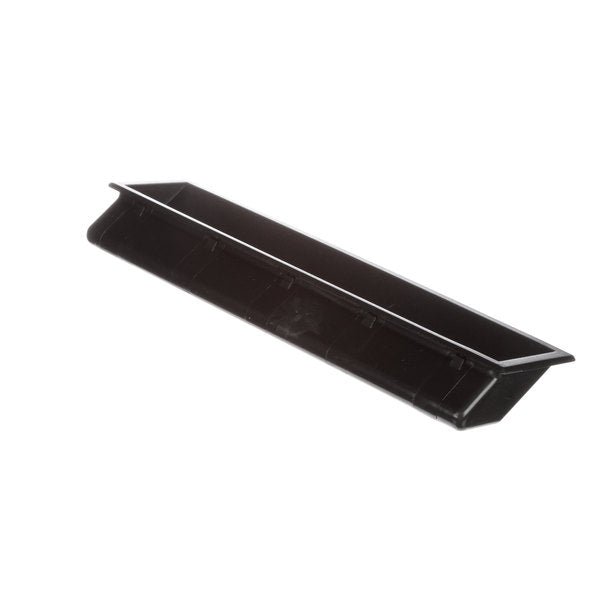

The Randell HD HDL0103 is a black ABS plastic recessed door pull handle for compatible Randell commercial refrigeration equipment and refrigerated prep tables. Designed for snap-in installation within the appropriate rectangular door opening, this replacement handle provides a recessed gripping surface for opening and closing the equipment door.

Randell manufacturer part number HD HDL0103 is identified in official door-assembly parts manuals for multiple 8000, 9000 and refrigerated prep-table models.

This handle features an overall length of 7-7/16 inches and a width of 1-3/4 inches. The published installation specification identifies a rectangular mounting opening measuring 7-3/16 inches by 1-1/2 inches.

Important: Match the original handle, rectangular door cutout, mounting arrangement and equipment model before ordering. This is a recessed pull handle, not a door hinge, latch or door-closing mechanism.

Manufacturer Product Specifications

• Manufacturer: Randell
• Manufacturer Part Number: HD HDL0103
• Part Type: Recessed Door Pull Handle
• Color: Black
• Material: ABS Plastic
• Overall Length: 7-7/16 inches
• Overall Width: 1-3/4 inches
• Required Rectangular Opening: 7-3/16 inches x 1-1/2 inches
• Mounting Design: Snap-In Recessed Handle
• Application: Select Randell Commercial Refrigeration and Prep-Table Doors
• Quantity: One Handle
• Electrical Requirements: None
• Equipment Compatibility: Verify model, serial number and original door configuration

Measurement Note: Overall handle dimensions and the required installation cutout are different measurements. Both must be checked before ordering.

Compatible Randell Equipment Models

Randell manufacturer parts documentation identifies HD HDL0103 as the recessed door handle for the following commercial refrigeration equipment models.

Randell 8000 and 9000 Series Prep Tables

• 8148N-290
• 8260N-290
• 8268N-290
• 8383N-290
• 8395N-290
• 84111N-290
• 8148W-290
• 8268W-290
• 8395W-290

Randell 9000K and 9200 Series

• 9030K-513
• 9040K-513
• 9045K-513
• 9050K-513
• 9210-513
• 9200-513
• 9230-513
• 9220-513

Additional Randell Prep-Table Models

• PT48-18W-L
• PT60-24W-L
• PT72-30W-L
• PT84-36W-L

Compatibility Warning: These model references are documented in Randell parts manuals. Equipment revisions, door replacement history and production changes can affect fitment. Confirm the complete model, serial number, original handle profile and mounting cutout before purchasing.

Product Function and Purpose

A recessed door pull handle provides a gripping area within the face of the equipment door rather than projecting outward from two external mounting feet.

Its recessed configuration allows personnel to pull the door open while maintaining the manufacturer's intended door-hardware arrangement.

The handle must fit securely within the designated rectangular opening. A damaged handle, incorrect profile or distorted mounting cutout may prevent proper installation or normal use.

This replacement is a mechanical handle. It does not support the primary door weight, provide hinge rotation or generate automatic closing force.

Features and Benefits

• Randell manufacturer part number HD HDL0103.
• Black ABS plastic construction.
• Recessed gripping design.
• Snap-in mounting arrangement.
• 7-7/16-inch overall length.
• Published applications across multiple Randell equipment models.
• Replacement for a damaged, broken or missing original recessed handle.
• Suitable for compatible commercial refrigeration maintenance applications.

Common Signs of a Damaged Recessed Handle

• Handle is cracked or broken.
• Recessed grip becomes loose within the door opening.
• Plastic retaining edges become damaged.
• Handle shifts or separates from its mounting location.
• Visible distortion affects the handle profile.
• Original handle is missing.
• Grip area becomes damaged through repeated use.
• Replacement handle does not seat securely in the original cutout.

Technician Troubleshooting Guide

Before replacing the recessed handle, inspect the original component and the surrounding door mounting area.

• Identify the original Randell manufacturer part number.
• Inspect the plastic handle for cracking or distortion.
• Examine retaining edges for damage.
• Measure the rectangular door cutout.
• Compare overall handle length and width.
• Inspect the door panel for deformation near the opening.
• Check for loose or damaged original mounting features.
• Verify sufficient clearance for the recessed grip.
• Inspect other door hardware if the door is unusually difficult to open.
• Compare the removed component with the manufacturer's parts diagram.

Before You Order

1. Confirm Randell manufacturer part number HD HDL0103.
2. Record the equipment model and serial number.
3. Verify the original handle is a black recessed pull design.
4. Measure the overall handle length and width.
5. Confirm the rectangular cutout is compatible with the published 7-3/16-inch by 1-1/2-inch requirement.
6. Inspect the original snap-in mounting arrangement.
7. Check the condition of the door panel around the cutout.
8. Compare the original handle profile with the product photograph.
9. Check applicable Randell door-assembly parts documentation.
10. Do not substitute a similar-looking recessed handle without confirming dimensions and fitment.

Installation and Maintenance Guidance

Recessed door handle replacement should follow the applicable Randell equipment service instructions.

Inspect the original mounting location before removing the damaged handle. Take care not to damage the surrounding door panel or insulation.

Compare the replacement with the original handle and verify the rectangular opening dimensions.

Install the replacement using the manufacturer's intended snap-in arrangement. Do not force an incorrect handle into the opening or enlarge the cutout without approved installation instructions.

After installation, confirm that the handle is firmly seated and provides a secure grip. Test the door for normal opening and closing operation.

Frequently Asked Questions

1. What is Randell HD HDL0103?

It is a Randell manufacturer-listed black ABS plastic recessed door pull handle used on compatible commercial refrigeration equipment and prep tables.

2. What are the dimensions of the Randell HD HDL0103 handle?

The published overall measurements are 7-7/16 inches long by 1-3/4 inches wide.

3. What size opening is required for installation?

Published replacement specifications identify a rectangular opening measuring 7-3/16 inches by 1-1/2 inches. Verify the original door cutout before ordering.

4. Which Randell models use this recessed handle?

Randell service documentation lists applications including 8148N-290, 8260N-290, 8268N-290, 8383N-290, 8395N-290, 9030K-513, 9210-513 and additional documented models listed above. Verify the equipment serial number and original handle configuration.

5. Is Randell HD HDL0103 made from metal?

No. The replacement is described as a black plastic recessed handle, with ABS construction identified in published supplier specifications.

6. Is HD HDL0103 a door hinge?

No. HD HDL0103 is a recessed door pull handle. Door hinges are separate components that support and guide door rotation.

7. Does this handle use mounting screws?

The published design is a snap-in recessed handle. Confirm the original door installation and supplied components rather than assuming separate screws or fasteners are required.

8. How do I verify the correct Randell replacement handle?

Compare the original manufacturer part number, equipment model and serial number, overall dimensions, rectangular cutout, and mounting configuration. Contact PartsDirectOnline if additional identification assistance is needed.

Randell Commercial Refrigeration Door Hardware

PartsDirectOnline supplies commercial refrigeration door handles, recessed pulls, hinges, latches, gaskets and related replacement components for refrigeration technicians, restaurants, maintenance departments and commercial foodservice operators throughout the United States.

Browse our Commercial Door Pull Handles collection for related replacement parts.

Need Help Confirming Fitment? Call PartsDirectOnline at 631-873-0509 with your Randell model, serial number and original handle dimensions.
