Commercial Chrome Door Pull Handles – 5-3/4" & 8" Options

Commercial Chrome Door Pull Handles – 5-3/4" and 8" Options

These heavy-duty chrome door pull handles are available in two configurations for compatible commercial refrigeration cabinets, equipment doors, and commercial door-hardware applications.

Choose between a 5-3/4-inch Kason Classic Pull Handle and an 8-inch Heavy-Duty Chrome Pull Handle. Both provide a secure gripping surface, but the mounting dimensions and handle designs differ.

Important: The two sizes are not interchangeable based on overall length alone. Compare the original mounting-hole centers, base dimensions, screw requirements, and door construction before ordering.

Available Handle Options

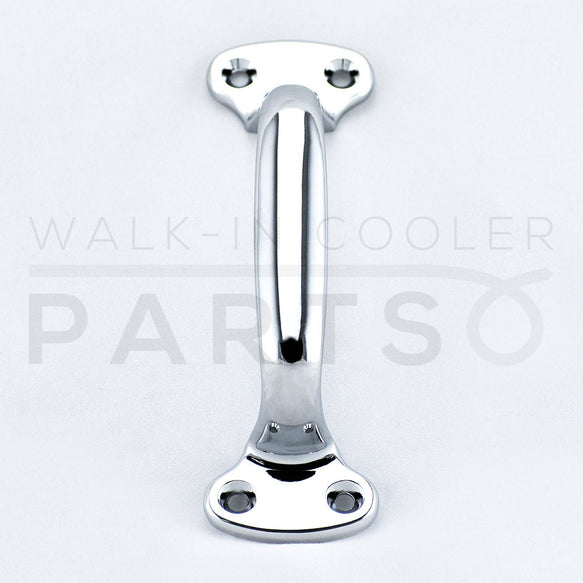

Option 1: 5-3/4" Chrome Pull Handle

• Manufacturer: Kason
• Manufacturer Part Number: 10382000004
• Series: 0382 Classic Pull
• Overall Length: 5-3/4 inches
• Mounting-Hole Centers: 4-1/2 inches
• Material: High-pressure die-cast zinc
• Finish: Polished Chrome
• Mounting: Countersunk for No. 8 screws
• Application: Compatible commercial refrigerator, cooler, cabinet, and equipment doors

Option 2: 8" Heavy-Duty Chrome Pull Handle

• Manufacturer Reference: Polar Hardware 815
• Overall Length: 8 inches
• Mounting-Hole Centers: 7 inches lengthwise
• Base-Hole Spacing: 1 inch across each base
• Base Width: 2 inches
• Grip Length: 5 inches
• Material: Solid die-cast zinc
• Finish: Bright Chrome
• Mounting: Countersunk for 1/4-inch flat-head or oval-head screws
• Application: Compatible commercial doors and refrigeration door-hardware installations

8-Inch Identification Note: The 8-inch variant corresponds to published Polar Hardware 815 specifications. Confirm the actual supplied component matches this manufacturer reference before ordering.

Product Function and Purpose

Commercial door pull handles provide a gripping surface for opening and closing compatible equipment doors. Their mounting bases transfer pulling force into the door structure.

Proper handle selection depends on the required overall length, mounting-hole spacing, fastener type, and surrounding door clearance.

Both configurations are mechanical pull handles. They are not replacement hinges, locking latches, door closers, or magnetic door gaskets.

Features and Benefits

• Two selectable chrome handle sizes.
• Heavy-duty die-cast zinc construction.
• Chrome-plated finish.
• Different mounting configurations for different applications.
• Replacement options for damaged or missing original handles.
• Suitable for commercial door maintenance when fitment is verified.

Common Signs of a Damaged Pull Handle

• Loose or unstable handle.
• Cracked handle body or mounting bases.
• Damaged or stripped mounting holes.
• Handle pulls away from the door.
• Visible bending or mechanical damage.
• Mounting screws repeatedly loosen.
• Original grip is missing or broken.

Technician Troubleshooting Guide

• Inspect the original handle for cracks or distortion.
• Measure overall length.
• Confirm the mounting-hole center-to-center spacing.
• Inspect the door mounting surface.
• Determine whether the original fasteners are No. 8 or 1/4-inch hardware.
• Check clearance around the handle and surrounding door components.
• Inspect hinges and latches if the door is difficult to operate.
• Compare the original component with the correct selected product image.

Before You Order

1. Select either the 5-3/4-inch or 8-inch handle.
2. Measure the original overall handle length.
3. Measure the original mounting-hole centers.
4. Compare mounting-base dimensions.
5. Confirm the required screw diameter and fastening arrangement.
6. Verify the original door construction and mounting strength.
7. Check the handle finish and profile.
8. Confirm any separately required mounting hardware.
9. Do not assume both variants fit the same door.

Installation Guidance

Inspect the original mounting surface before removing the existing handle. Remove damaged hardware carefully and check for stripped or enlarged holes.

Position the selected replacement and verify the mounting points align correctly. Install using the appropriate manufacturer-specified fasteners.

Do not force an incompatible handle into the existing mounting arrangement or modify insulated refrigeration doors without verifying the manufacturer's installation requirements.

After installation, verify secure attachment and normal door movement.

Frequently Asked Questions

1. What sizes are available?

This product offers two options: a 5-3/4-inch Kason Classic Pull Handle and an 8-inch heavy-duty chrome pull handle.

2. What is the manufacturer number for the 5-3/4-inch handle?

The Kason 0382 Classic Pull Handle is identified by manufacturer part number 10382000004.

3. What is the manufacturer reference for the 8-inch handle?

The published 8-inch configuration corresponds to Polar Hardware 815. Confirm the exact supplied component before ordering.

4. Do both handles have the same mounting-hole spacing?

No. The Kason Classic Pull uses 4-1/2-inch mounting centers, while the 8-inch Polar-style handle has 7-inch lengthwise mounting centers.

5. Are the handles stainless steel?

No. Both published configurations use die-cast zinc construction with chrome-plated finishes.

6. Can these handles be used on walk-in cooler or freezer doors?

They may be suitable for compatible commercial doors when mounting dimensions, hardware requirements, and the original equipment design agree.

7. Do mounting screws come included?

Confirm the actual supplied hardware before ordering. The two handle configurations require different fastener specifications.

8. How do I select the correct handle?

Compare overall length, mounting-hole centers, base dimensions, screw requirements, and original door construction. Contact PartsDirectOnline for assistance if identification is uncertain.

Commercial Refrigeration Door Handles

PartsDirectOnline supplies commercial door pull handles, hinges, latches, door closers, gaskets, and related refrigeration door hardware for service technicians and commercial equipment operators.

Browse our Commercial Door Pull Handles collection for related replacement hardware.

Need Help Confirming Fitment? Call 631-873-0509 with the original handle measurements and photographs.
