Pivot Hinge Bracket
Sku: PD-780-417, PD-780-418, PD-780-419, PD-780-420
-
Regular price
-
$27.69 USD
-
Sale price
-
$27.69 USD
-
Regular price
-
-
Unit price
- per
Availability : In Stock
Before ordering, compare the part number, measurements, mounting points, voltage, and equipment model. Send us photos and your model/serial number if you want help checking the match.
Help other repair pros find PartsDirectOnline
If our team helped you find the right refrigeration part, a quick Google review helps other technicians and restaurant owners shop with confidence.
Check compatibility before ordering
Match the part number, model number, dimensions, and mounting points before checkout. If the part is used across multiple refrigeration units, compare your existing part to the product photos and SKU above.
Refrigeration parts FAQ
How do I confirm this part fits my unit?
Use the SKU, measurements, brand, and product photos to compare against the part currently installed on your refrigerator, freezer, prep table, merchandiser, or ice machine.
Can I order this for a commercial refrigeration repair?
Yes. PartsDirectOnline specializes in commercial refrigeration replacement parts for service companies, restaurants, convenience stores, and maintenance teams.
What should I do if I am unsure about compatibility?
Contact the store with your model number, serial number, photos, and measurements before ordering so the team can help verify the best match.
Pivot Hinge Bracket — TL/BR or TR/BL | Vertical or Horizontal Mount | Slotted for 1/4" (6.4 mm) Screws
Versatile pivot hinge bracket for commercial cooler/freezer doors and equipment panels. Configure as Top Left (TL) or Bottom Right (BR) and the mirror Top Right (TR) or Bottom Left (BL) in either vertical or horizontal mounting. Slotted holes for 1/4" (6.4 mm) screws make alignment fast and precise.

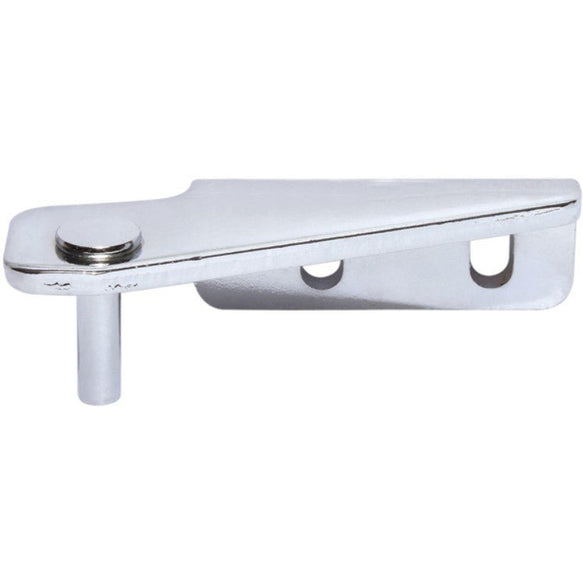

Photo shown: Horizontal mount — Top Left or Bottom Right configuration.
✅ Options (Choose Configuration)
- Vertical Mount — Top Left / Bottom Right
- Vertical Mount — Top Right / Bottom Left
- Horizontal Mount — Top Left / Bottom Right
- Horizontal Mount — Top Right / Bottom Left
Key Features & Benefits
- Universal handing (TL/BR or TR/BL) for flexible installs
- Vertical or horizontal mounting orientations
- Slotted for 1/4" (6.4 mm) screws — easy adjustment & alignment
- Supports door alignment and gasket compression for a tight seal
- Heavy-duty construction for commercial environments
Applications
- Reach-in & walk-in cooler/freezer doors
- Back-bar, undercounter, and service cabinets
- Equipment access panels
Specifications
| Product Type | Pivot Hinge Bracket |
|---|---|
| Mounting Orientation | Vertical or Horizontal |
| Hand Options | Top Left / Bottom Right, Top Right / Bottom Left |
| Fastener Slots | Slotted for 1/4" (6.4 mm) screws |
| Installation | Surface mount; verify hole pattern and door hand |
| Material/Finish | Heavy-duty metal (model dependent) |
Fit Tip: Match your existing bracket’s hand, orientation, and hole spacing. Replace worn pins/bushings and check latch alignment for the best seal.
Shop Hinges · Door Hardware · Door Gaskets
Order Pivot Hinge Brackets in your required hand/orientation for precise alignment and long-lasting performance.
