Norlake 123268 Inside Release Assembly, NL9800

Norlake 123268 Inside Release Assembly, NL9800

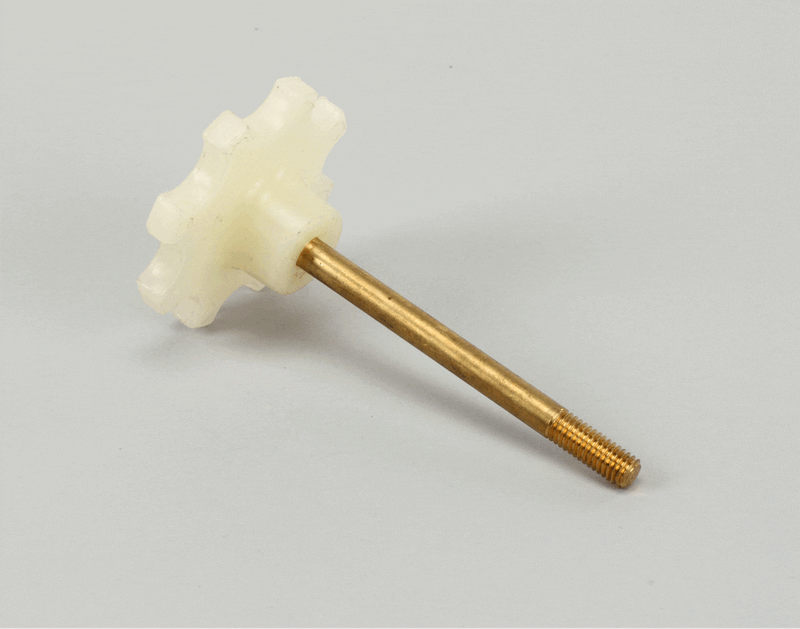

The Norlake 123268 inside release assembly, nl9800 is a commercial replacement part identified by the manufacturer reference shown below. It allows the compatible walk-in latch to be operated from inside the enclosure. Correct identification matters because components that share a general appearance can differ in mounting, electrical characteristics, dimensions or operating function.

Verify the latch system, spindle engagement and door thickness. After service, test free release from inside with the door secured open before returning the enclosure to use.

Use the equipment model, serial number and existing part identification together when selecting this walk-in door inside release. The listed specifications describe the researched reference; they do not establish universal compatibility across Norlake equipment. Inspect the related system before ordering so a separate wiring, alignment, airflow or drainage problem is not mistaken for failure of this component.

Part Identification & Specifications

• Compatible equipment brand: Norlake
• Manufacturer part-number reference: 123268
• Product type: Walk-In Door Inside Release
• Product classification: Commercial Replacement Part
• Assembly reference: NL9800
• Location: Inside door release
• Reference catalogue weight: 1.0 lb

The listed weight is a published reference-part weight, not a measured packed-shipment weight.

Function & Application

This walk-in door inside release allows the compatible walk-in latch to be operated from inside the enclosure. Its role should be checked against the equipment parts diagram and service documentation, including any production changes affecting the assembly.

Compatibility & Ordering Reference

A complete model compatibility list has not been established for this part. Confirm the part-number reference against the equipment parts diagram and serial-number range before ordering.

Do not assume that another part number supersedes this reference unless the equipment manufacturer documents that replacement for the specific unit.

Symptoms to Investigate

Reasons to inspect this component include binding, incomplete latch travel, a loose handle, or failure of the release to disengage the latch. These symptoms are diagnostic clues, not proof that this part has failed.

Technician Diagnostic Checks

• Keep the door open while checking the mechanism
• Match the release to the latch system and door thickness
• Inspect the spindle and internal linkage
• Check fasteners and obstructions throughout the operating travel

Document the findings before replacing parts. Use the equipment service procedure and correct test equipment; component appearance alone does not establish a service diagnosis.

Before You Order

• Confirm manufacturer reference 123268 and the complete equipment model and serial number.
• Compare the existing part with the listed specifications and mounting arrangement.
• Verify the latch system, spindle engagement and door thickness. After service, test free release from inside with the door secured open before returning the enclosure to use.
• Verify whether related fasteners, fittings, keys, sensors or other service items are included or required separately.
• Confirm the supplied item and its provenance before releasing the order.

Installation & Return-to-Service Checks

Service should be performed by personnel qualified for the equipment and component. Isolate relevant power and support moving parts before disassembly. Record the original mounting, connections and routing, then follow the equipment-specific service procedure.

With the door secured open, confirm the release fully disengages the latch repeatedly. Follow the equipment service procedure before allowing the door to close.

Maintenance & Related Components

During routine service, inspect the surrounding mounting points and the related components identified in the diagnostic checks. Correct the cause of wear, moisture, vibration or misalignment before fitting a replacement. Use cleaning and maintenance methods specified for the equipment and materials.

Frequently Asked Questions

What is Norlake 123268?

It is the manufacturer reference for this walk-in door inside release. The component allows the compatible walk-in latch to be operated from inside the enclosure.

Which specifications should I compare?

Assembly reference: NL9800; Location: Inside door release. Also compare the original mounting and connection arrangement.

Will it fit every Norlake unit?

No. Verify the complete model, serial number and manufacturer reference. Similar-looking components may belong to different equipment revisions.

What should I check before replacing it?

Keep the door open while checking the mechanism. Match the release to the latch system and door thickness. Symptoms may come from related components, so diagnose the system before ordering.

What is the key ordering caution for this part?

Verify the latch system, spindle engagement and door thickness. After service, test free release from inside with the door secured open before returning the enclosure to use.

Is the listed weight a packed shipping weight?

The reference catalogue lists 1.0 lb. Packed shipping weight has not been measured and can differ with packaging or supplied assembly contents.
