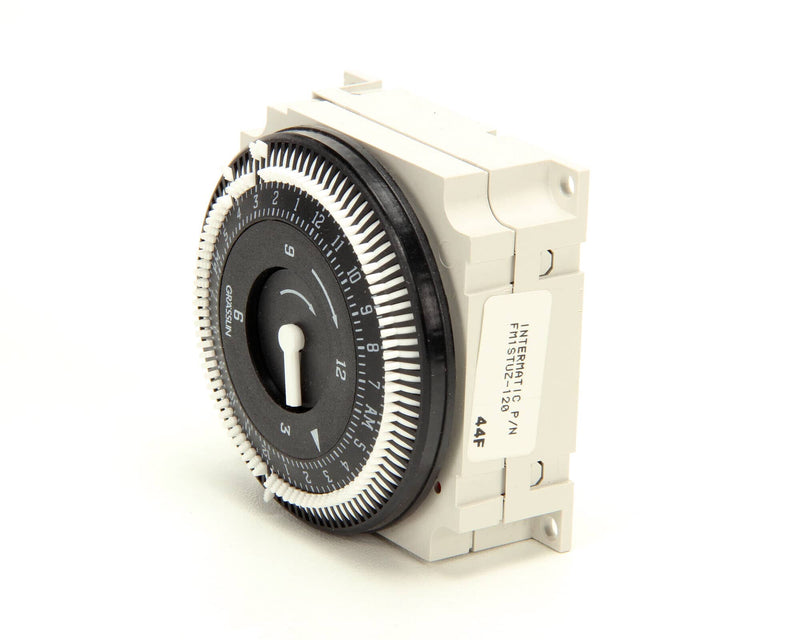

Norlake 091692 Defrost Timer, Clock 115V

Norlake 091692 Defrost Timer

The Norlake 091692 is identified as defrost timer, clock 115v. This component coordinates the defrost cycle in the specified refrigeration control circuit. Match the manufacturer reference to the equipment documentation so the replacement addresses the correct assembly and operating application.

Verified part identification and specifications

Commercial application and model references

Documented equipment model references include CPB0751C, CPB075DCA. Confirm the exact model suffix, serial range and component revision before ordering.

Symptoms and technician checks

Inspect this component when the equipment shows missing defrost cycles, irregular cycling or a timer that fails to advance. Check timer supply, terminal identification, control wiring and the existing defrost settings before attributing the fault to this part. These symptoms guide diagnosis; they do not establish that replacement is necessary.

A defrost problem may originate at the heater, termination control or wiring. Establish whether the timer is switching correctly before ordering a replacement.

Before you order

Use manufacturer reference 091692 and compare the item identification above with the removed part. Check the model and serial label, the corresponding parts diagram and any revision or serial break. Confirm the component supplied rather than assuming related brackets, wiring or accessories are included.

Frequently asked questions

What is Norlake 091692?

It is identified as defrost timer, clock 115v. It coordinates the defrost cycle in the specified refrigeration control circuit.

Which models are referenced for 091692?

Documented equipment model references include CPB0751C, CPB075DCA. Confirm the exact model suffix, serial range and component revision before ordering.

What specifications distinguish 091692?

Electrical identification: 115V; Documented catalog weight: 0.14 lb.

Will a timer with the same number of terminals work?

Terminal count alone is insufficient. Verify supply voltage, contact arrangement, cycle behavior and the manufacturer part reference.

What should be checked before replacing 091692?

Check timer supply, terminal identification, control wiring and the existing defrost settings. A defrost problem may originate at the heater, termination control or wiring. Establish whether the timer is switching correctly before ordering a replacement.

What information should I provide to confirm 091692?

Provide the equipment model and serial number, the number on the removed component and a clear photograph of its connections or mounting. Ask for confirmation of Norlake 091692 against the equipment diagram.
