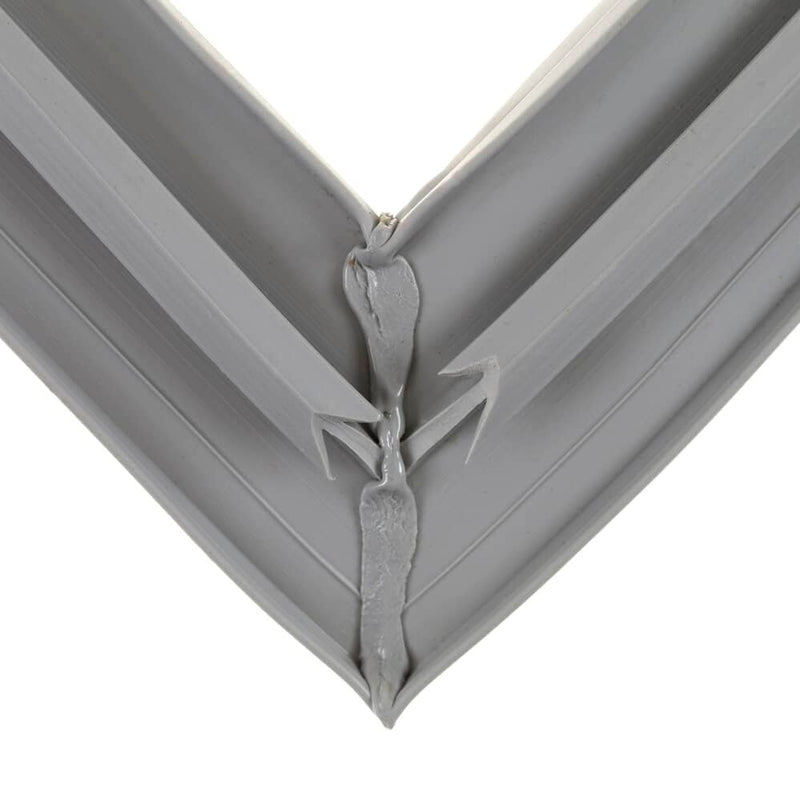

Norlake 077930 Left-Hand Magnetic Door Gasket

Norlake 077930 Left-Hand Magnetic Door Gasket

This reference identifies the Norlake 077930 left-hand magnetic door gasket. It forms a flexible seal around the corresponding refrigerated door or drawer opening. Use the manufacturer reference together with the equipment model and serial number when selecting a service component.

Reference Specifications

Application and Compatibility

A complete serial-specific compatibility list has not been established. Confirm the reference against the equipment parts diagram and check for production changes before ordering. Do not infer compatibility with all equipment from the same brand.

Compare mounting profile, corner design, magnet placement and dimensions measured from the same reference points. Do not substitute nominal door size for gasket size.

Symptoms to Investigate

Reasons to inspect this component include tears, hardened or flattened sealing sections, loose corners, condensation at the seal, or warm air leakage. These observations are not proof of component failure; inspect related parts before deciding on replacement.

Diagnostic Checks

• Clean the gasket and mating surface before judging the seal
• Check door or drawer alignment and slide or hinge condition
• Compare mounting profile and corner shape
• Measure the frame using the specified reference points

Record the equipment identification and findings. Use the manufacturer service procedure and the correct test equipment; appearance alone cannot establish fitment or a diagnosis.

Ordering Checklist

• Match reference 077930 to the equipment parts diagram.
• Confirm the complete model and serial number.
• Compare mounting profile, corner design, magnet placement and dimensions measured from the same reference points. Do not substitute nominal door size for gasket size.
• Confirm the quantity supplied, accessories and any separate hardware.
• Verify the actual supplied item before releasing an order.

Installation and Return to Service

Use personnel qualified for the equipment and service involved. Isolate relevant power, protect stored contents and support moving components before disassembly. Preserve the original mounting, wire routing and airflow clearances unless the manufacturer specifies a change.

Check contact around the entire opening and cycle the door or drawer. Confirm corners remain seated and the seal is not folded or stretched.

Maintenance

Inspect related supports, connections and seals during routine service. Correct the cause of wear, moisture, vibration or misalignment before fitting a replacement. Use the cleaning methods and service intervals specified for the equipment.

Frequently Asked Questions

What does 077930 identify?

It is the researched Norlake reference for this left-hand magnetic door gasket. The component forms a flexible seal around the corresponding refrigerated door or drawer opening.

Will it fit every model from this brand?

No. Confirm the model, serial number and parts diagram. Similar-looking parts can have different mounting or operating requirements.

What should I compare before ordering?

Compare mounting profile, corner design, magnet placement and dimensions measured from the same reference points. Do not substitute nominal door size for gasket size.

How should I assess whether replacement is needed?

Clean the gasket and mating surface before judging the seal. Check door or drawer alignment and slide or hinge condition. Inspect related components before attributing the symptom to this part.

Are accessories automatically included?

No. Confirm the supplied assembly and hardware quantity before ordering. A reference photo can show components not included in a particular supplier offering.

Is the reference weight a verified shipping weight?

The reference catalogue lists 2.695 lb. The supplied item and packaging have not been weighed. Verify the actual packed weight before configuring shipping.

What information helps confirm this part?

Provide the equipment model, serial number and clear photos of the existing part, its markings and mounting arrangement.
