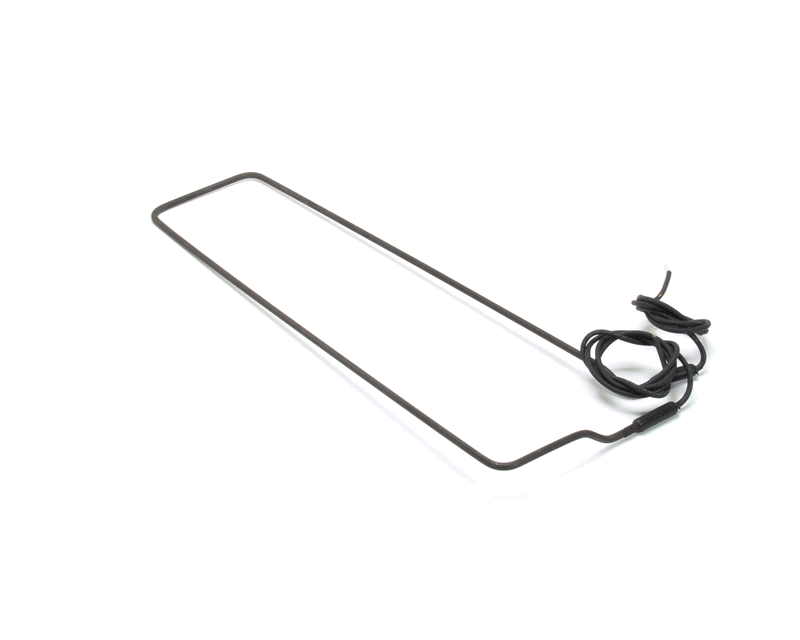

Norlake 029151 Evaporator Pan Heater Element, 115V, 200W

Norlake 029151 Evaporator Pan Heater Element, 115V, 200W

The Norlake 029151 evaporator pan heater element, 115v, 200w is a commercial replacement part identified by the manufacturer reference shown below. It helps prevent frozen condensate from obstructing the intended drain or pan area. Correct identification matters because components that share a general appearance can differ in mounting, electrical characteristics, dimensions or operating function.

This heater serves the evaporator pan. Verify its formed shape and clearances so it cannot contact wiring or an unintended surface.

Use the equipment model, serial number and existing part identification together when selecting this evaporator pan heater element. The listed specifications describe the researched reference; they do not establish universal compatibility across Norlake equipment. Inspect the related system before ordering so a separate wiring, alignment, airflow or drainage problem is not mistaken for failure of this component.

Part Identification & Specifications

• Compatible equipment brand: Norlake
• Manufacturer part-number reference: 029151
• Product type: Evaporator Pan Heater Element
• Product classification: Commercial Replacement Part
• Voltage: 115V
• Power: 200W
• Location: Evaporator pan
• Reference catalogue weight: 1.56 lb

The listed weight is a published reference-part weight, not a measured packed-shipment weight.

Function & Application

This evaporator pan heater element helps prevent frozen condensate from obstructing the intended drain or pan area. Its role should be checked against the equipment parts diagram and service documentation, including any production changes affecting the assembly.

Compatibility & Ordering Reference

Reference-catalogue equipment examples: NF803, NF522. These examples are not an exhaustive fit list. Confirm the complete model and serial number before ordering.

Do not assume that another part number supersedes this reference unless the equipment manufacturer documents that replacement for the specific unit.

Symptoms to Investigate

Reasons to inspect this component include recurring drain icing, a frozen pan outlet, or an open or damaged heater. These symptoms are diagnostic clues, not proof that this part has failed.

Technician Diagnostic Checks

• Clear and inspect the drain path before replacing the heater
• Check heater identification and rated supply
• Inspect the installed contact and routing
• Check defrost duration and drainage as possible contributing problems

Document the findings before replacing parts. Use the equipment service procedure and correct test equipment; component appearance alone does not establish a service diagnosis.

Before You Order

• Confirm manufacturer reference 029151 and the complete equipment model and serial number.
• Compare the existing part with the listed specifications and mounting arrangement.
• This heater serves the evaporator pan. Verify its formed shape and clearances so it cannot contact wiring or an unintended surface.
• Verify whether related fasteners, fittings, keys, sensors or other service items are included or required separately.
• Confirm the supplied item and its provenance before releasing the order.

Installation & Return-to-Service Checks

Service should be performed by personnel qualified for the equipment and component. Isolate relevant power and support moving parts before disassembly. Record the original mounting, connections and routing, then follow the equipment-specific service procedure.

Observe drainage during defrost and confirm water leaves the pan correctly. Verify the heater is secured away from moving parts and vulnerable wiring.

Maintenance & Related Components

During routine service, inspect the surrounding mounting points and the related components identified in the diagnostic checks. Correct the cause of wear, moisture, vibration or misalignment before fitting a replacement. Use cleaning and maintenance methods specified for the equipment and materials.

Frequently Asked Questions

What is Norlake 029151?

It is the manufacturer reference for this evaporator pan heater element. The component helps prevent frozen condensate from obstructing the intended drain or pan area.

Which specifications should I compare?

Voltage: 115V; Power: 200W; Location: Evaporator pan. Also compare the original mounting and connection arrangement.

Will it fit every Norlake unit?

No. Verify the complete model, serial number and manufacturer reference. Similar-looking components may belong to different equipment revisions.

What should I check before replacing it?

Clear and inspect the drain path before replacing the heater. Check heater identification and rated supply. Symptoms may come from related components, so diagnose the system before ordering.

What is the key ordering caution for this part?

This heater serves the evaporator pan. Verify its formed shape and clearances so it cannot contact wiring or an unintended surface.

Is the listed weight a packed shipping weight?

The reference catalogue lists 1.56 lb. Packed shipping weight has not been measured and can differ with packaging or supplied assembly contents.
