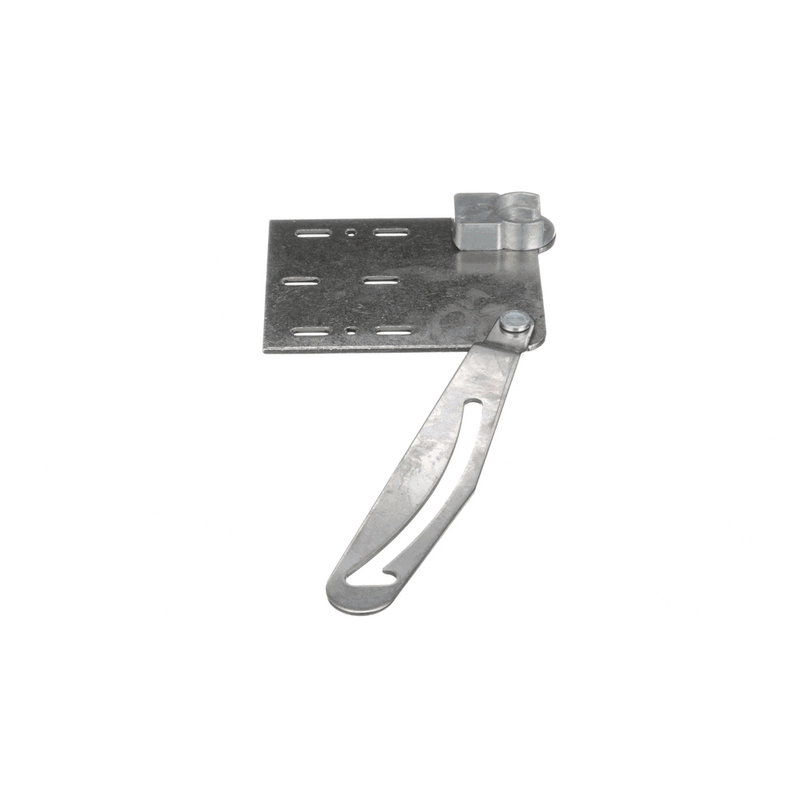

Master-Bilt 35-01468 Bottom Right Door Hinge Plate

Master-Bilt 35-01468 Bottom Right Door Hinge Plate

The Master-Bilt 35-01468 bottom right door hinge plate is a commercial replacement part identified by the manufacturer reference shown below. It supports the intended movement and alignment of the refrigerator door. Correct identification matters because components that share a general appearance can differ in mounting, electrical characteristics, dimensions or operating function.

Verify the lower-right mounting position, fastener spacing and pivot location. A hinge plate does not include every component of a complete door hinge.

Use the equipment model, serial number and existing part identification together when selecting this refrigerator door hinge plate. The listed specifications describe the researched reference; they do not establish universal compatibility across Master-Bilt equipment. Inspect the related system before ordering so a separate wiring, alignment, airflow or drainage problem is not mistaken for failure of this component.

Part Identification & Specifications

• Compatible equipment brand: Master-Bilt
• Manufacturer part-number reference: 35-01468
• Product type: Refrigerator Door Hinge Plate
• Product classification: Commercial Replacement Part
• Position: Bottom right
• Component: Hinge plate
• Reference catalogue weight: 0.895 lb

The listed weight is a published reference-part weight, not a measured packed-shipment weight. Genuine OEM manufacture of the supplied item has not been independently confirmed; this listing does not claim genuine OEM status.

Function & Application

This refrigerator door hinge plate supports the intended movement and alignment of the refrigerator door. Its role should be checked against the equipment parts diagram and service documentation, including any production changes affecting the assembly.

Compatibility & Ordering Reference

A complete model compatibility list has not been established for this part. Confirm the part-number reference against the equipment parts diagram and serial-number range before ordering.

Do not assume that another part number supersedes this reference unless the equipment manufacturer documents that replacement for the specific unit.

Symptoms to Investigate

Reasons to inspect this component include excessive play, scraping, a door that sags or will not return smoothly, or visible damage to the particular hinge component. These symptoms are diagnostic clues, not proof that this part has failed.

Technician Diagnostic Checks

• Support the door before loosening hardware
• Inspect pivot wear, mounting holes and bracket alignment
• Check cams, bushings and stops separately
• Inspect the gasket and cabinet level so their faults are not mistaken for hinge failure

Document the findings before replacing parts. Use the equipment service procedure and correct test equipment; component appearance alone does not establish a service diagnosis.

Before You Order

• Confirm manufacturer reference 35-01468 and the complete equipment model and serial number.
• Compare the existing part with the listed specifications and mounting arrangement.
• Verify the lower-right mounting position, fastener spacing and pivot location. A hinge plate does not include every component of a complete door hinge.
• Verify whether related fasteners, fittings, keys, sensors or other service items are included or required separately.
• Confirm the supplied item and its provenance before releasing the order.

Installation & Return-to-Service Checks

Service should be performed by personnel qualified for the equipment and component. Isolate relevant power and support moving parts before disassembly. Record the original mounting, connections and routing, then follow the equipment-specific service procedure.

Cycle the door several times and check for smooth travel, correct stopping position and even gasket contact. Verify that fasteners remain secure.

Maintenance & Related Components

During routine service, inspect the surrounding mounting points and the related components identified in the diagnostic checks. Correct the cause of wear, moisture, vibration or misalignment before fitting a replacement. Use cleaning and maintenance methods specified for the equipment and materials.

Frequently Asked Questions

What is Master-Bilt 35-01468?

It is the manufacturer reference for this refrigerator door hinge plate. The component supports the intended movement and alignment of the refrigerator door.

Which specifications should I compare?

Position: Bottom right; Component: Hinge plate. Also compare the original mounting and connection arrangement.

Will it fit every Master-Bilt unit?

No. Verify the complete model, serial number and manufacturer reference. Similar-looking components may belong to different equipment revisions.

What should I check before replacing it?

Support the door before loosening hardware. Inspect pivot wear, mounting holes and bracket alignment. Symptoms may come from related components, so diagnose the system before ordering.

What is the key ordering caution for this part?

Verify the lower-right mounting position, fastener spacing and pivot location. A hinge plate does not include every component of a complete door hinge.

Is the listed weight a packed shipping weight?

The reference catalogue lists 0.895 lb. Packed shipping weight has not been measured and can differ with packaging or supplied assembly contents.

Is this guaranteed to be genuine OEM?

Genuine OEM manufacture of the supplied item has not been independently confirmed. It is described as a Commercial Replacement Part using the researched manufacturer reference.
