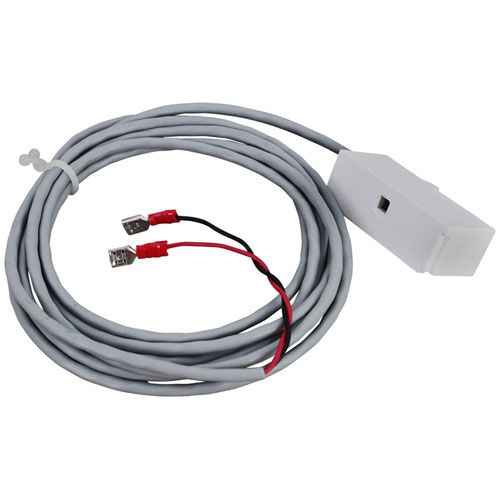

Manitowoc 2301483 Magnetic Bin Switch Assembly

Manitowoc 2301483 Magnetic Bin Switch Assembly

The Manitowoc 2301483 magnetic bin switch assembly is a service component for compatible Manitowoc commercial ice machines. Use the manufacturer part number and your equipment’s model-specific parts diagram to confirm the correct replacement before ordering.

Product Details

• Brand reference: Manitowoc
• Manufacturer part number: 2301483
• Part type: Magnetic bin switch assembly
• Equipment application: Compatible commercial ice machines
• Documented model reference: Manitowoc Q0800C

Compatibility and Ordering Guidance

Manitowoc’s Q0800C parts documentation lists 2301483 as the magnetic bin switch in the evaporator compartment. This is a documented application, not a complete compatibility list. Confirm your full model number, serial number, and applicable production revision before purchasing.

Compare the original assembly’s mounting arrangement, wire routing, and connections with the replacement. Appearance alone does not establish compatibility. Do not substitute a switch solely because its housing looks similar.

Service Considerations

Before replacing a suspected failed switch, have a qualified technician follow the equipment manufacturer’s diagnostic procedure. Inspect the associated wiring, connections, and mechanical components so that a separate fault is not mistaken for a defective switch. Disconnect electrical power before servicing and verify correct operation after installation.

Frequently Asked Questions

What is Manitowoc part number 2301483?

It is a magnetic bin switch assembly used in compatible Manitowoc commercial ice machines.

Is 2301483 listed for the Manitowoc Q0800C?

Yes. Manitowoc’s Q0800C parts list identifies 2301483 as the magnetic bin switch. Confirm the applicable parts list for your machine’s serial number before ordering.

Does this switch fit every Manitowoc ice machine?

No universal fit is claimed. Use the exact model and serial number to verify the required part number.

Can I select this part by matching the photograph?

A photograph can help compare physical features, but the manufacturer’s parts documentation should determine compatibility.

Does an ice-making problem automatically mean this switch needs replacement?

No. A technician should diagnose the machine and check related components before replacing parts.

What information should I have ready for fitment assistance?

Have the full equipment model number, serial number, and any markings on the existing switch available. A clear photograph of the original assembly and connections can also help.

Need Help Confirming the Correct Part?

Call PartsDirectOnline at 631-873-0509 with your equipment model and serial number before ordering.
