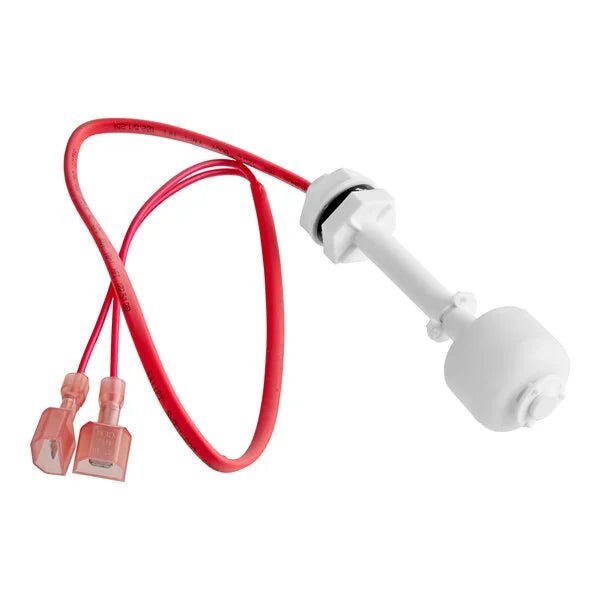

The Manitowoc Ice 040002396 Harvest Float Switch is a genuine OEM water-level sensing component used in compatible Manitowoc NEO commercial ice machines. The switch monitors water level in the water trough and provides electrical feedback to the machine control system during the freeze and harvest sequence.

Manitowoc identifies 040002396 as the NEO Harvest Float Switch. The harvest float is part of the machine's cycle-control system and helps indicate when conditions have been reached for the equipment to initiate the harvest sequence.

Reliable float-switch operation is important to consistent ice-machine performance. A float that sticks, becomes coated with scale, is assembled incorrectly, has damaged wiring, or no longer switches electrically can contribute to premature harvest, delayed harvest, failure to enter harvest, inconsistent ice production, or abnormal machine cycling.

OEM Part Details

• Manufacturer: Manitowoc Ice
• OEM Part Number: 040002396
• MPN: 040002396
• Part Type: Harvest Float Switch
• Product Family: Manitowoc NEO
• Switch Type: Float-Operated Magnetic Reed Switch
• Normal Contact State: Normally Closed
• Application: Commercial Ice Machines
• System: Water Level / Freeze & Harvest Control
• Function: Harvest-Cycle Water-Level Feedback

How the Manitowoc Harvest Float Switch Works

The float switch changes electrical state as water level changes in the machine's trough. Manitowoc service information describes the float switch as a normally closed magnetic reed switch: with the float in the down position the contacts are closed, and as water raises the float, the magnet causes the contacts to open.

Within the Manitowoc control sequence, the harvest float provides the water-level signal associated with initiating the harvest cycle, while the separate ice-thickness float performs a different sensing function.

Harvest Float vs. Ice Thickness Float

These are two separate controls and should not be confused.

• Harvest Float Switch: Provides the water-level condition associated with initiating harvest.
• Ice Thickness Float Switch: Provides a separate water-level condition used by the machine during ice formation.

For this listing, the correct OEM reference is Manitowoc 040002396 Harvest Float Switch.

Common Signs of a Harvest Float Switch Problem

• Ice machine does not enter harvest when expected
• Machine enters harvest too early
• Freeze-to-harvest timing becomes inconsistent
• Float does not move freely
• Mineral scale restricts float travel
• Float remains stuck in the raised or lowered position
• Switch contacts do not change state correctly
• Control-board harvest indication does not match float position
• Connector or wiring is damaged
• Moisture or corrosion is present at electrical connections
• Machine experiences intermittent cycle progression

These symptoms do not automatically confirm float-switch failure. Water level, water inlet components, pump operation, wiring, connectors, the ice-thickness float, and the control board can create overlapping symptoms. Diagnose the complete machine sequence before replacing the switch.

Scale & Mineral Buildup

The float operates directly in the ice machine's water system, making scale and mineral buildup important inspection points. Deposits can restrict movement and prevent the float from changing position correctly.

Inspect for:

• Mineral scale
• Sediment
• Debris
• Mechanical binding
• Restricted float movement
• Damage to the float stem or body

Follow Manitowoc cleaning and descaling procedures when servicing water-system components.

Important Float Assembly Warning

Manitowoc service documentation specifically cautions against incorrectly disassembling and reassembling the float during descaling, sanitizing, or troubleshooting because the magnet is not centered in the float. Incorrect reassembly can cause harvest-control problems.

Maintain the correct float orientation and compare the replacement assembly with the original before installation.

Diagnosing Premature Harvest

If the ice machine enters harvest before expected, qualified technicians should evaluate the harvest float switch, ice-thickness float, wiring, connectors, and control-board response as part of the complete sequence.

Possible inspection points include:

• Harvest float movement
• Switch contact state
• Water level
• Float orientation
• Harness connections
• Control-board harvest input
• Ice-thickness float operation
• Scale or debris

Diagnosing Failure to Enter Harvest

If the machine remains in freeze and does not progress to harvest, technicians should determine whether the harvest float reaches its intended position and whether the electrical switch changes state correctly.

The complete sequence should be evaluated before condemning the float because water-system or control-related problems may prevent the required harvest condition from occurring.

Inspect Wiring & Connectors

A wiring problem can create the same symptoms as a failed float switch.

Inspect for:

• Loose connectors
• Corroded terminals
• Broken conductors
• Pinched wiring
• Moisture contamination
• Damaged insulation
• Incorrect previous repairs

Technician Checks Before Ordering

• OEM part number 040002396
• Complete Manitowoc Ice model
• Machine serial number
• Original harvest float switch identification
• Float configuration
• Float orientation
• Mounting arrangement
• Wire length and routing
• Electrical connector configuration
• Condition of the water trough
• Control-board connection

Do not select a replacement float switch solely by appearance. Manitowoc uses different sensing components for different functions and equipment generations. Match the OEM number and equipment information before ordering.

Commercial Ice Machine Applications

Manitowoc NEO commercial ice machines are used in demanding foodservice environments including restaurants, bars, hotels, convenience stores, supermarkets, schools, hospitals, institutional kitchens, cafeterias, and other commercial operations requiring dependable ice production.

Installation & Service Notes

Disconnect electrical power before servicing commercial ice-making equipment and follow applicable Manitowoc procedures.

Before removing the original 040002396 harvest float switch, document:

• Float orientation
• Mounting position
• Wire routing
• Connector location
• Relationship to the water trough

After installation, verify that the float moves freely, the electrical connection is secure, and the machine progresses normally through the freeze and harvest sequence.

Why Correct Manitowoc OEM Identification Matters

The harvest float and ice-thickness float can appear similar but perform different functions. Using Manitowoc OEM part number 040002396 provides the clearest replacement reference and helps prevent confusion with other float-switch components.

Frequently Asked Questions

What is Manitowoc 040002396?

Manitowoc 040002396 is the OEM NEO harvest float switch used in compatible Manitowoc commercial ice machines.

What does the Manitowoc harvest float switch do?

The harvest float monitors water level and provides the applicable signal used by the machine control system during the transition to harvest.

Is 040002396 the harvest float or ice-thickness float?

040002396 is the harvest float switch. The ice-thickness float is a separate component.

Is the switch normally open or normally closed?

Manitowoc service documentation describes the float switch as normally closed. The contacts are closed with the float down and open as water raises the float.

Can scale cause the harvest float to malfunction?

Yes. Mineral buildup can restrict float movement and interfere with reliable cycle-control feedback.

Can a bad harvest float cause premature harvest?

A float-switch, wiring, or control problem can contribute to premature harvest. The complete harvest-control sequence should be diagnosed.

Can a bad harvest float prevent the machine from entering harvest?

Yes. If the switch does not reach or report the expected state, the machine may not progress through the sequence correctly.

Should the float be taken apart for cleaning?

Follow Manitowoc service procedures carefully. Incorrect float reassembly can affect operation because the magnet orientation is important.

Can I replace this with another Manitowoc float switch that looks similar?

No. Verify OEM part number 040002396, equipment model, serial number, connector, mounting, and float function before ordering.

How do I confirm Manitowoc 040002396 is the correct replacement?

Verify OEM part number 040002396, the complete Manitowoc model and serial number, original harvest float, wiring, connector, and mounting arrangement before ordering.

Is professional installation recommended?

Yes. Commercial ice-machine sensing and water-control components should be diagnosed and serviced by qualified foodservice-equipment technicians.
