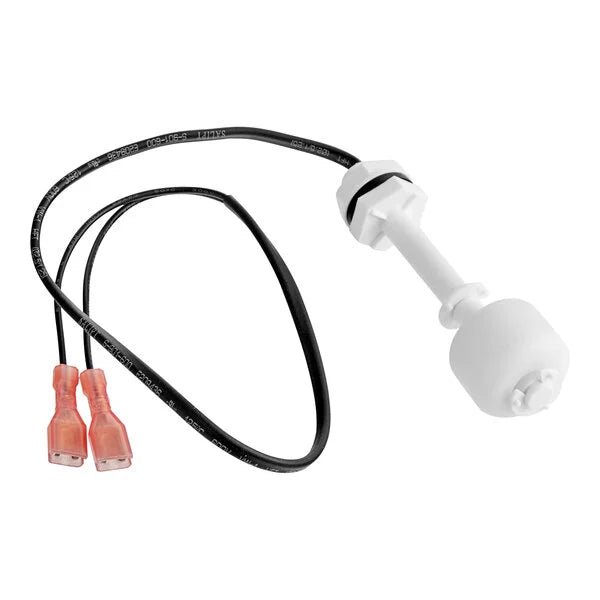

Manitowoc Ice 040001783 OEM NEO Ice Thickness Float Switch

Manitowoc Ice 040001783 OEM NEO Ice Thickness Float Switch

The Manitowoc Ice 040001783 Ice Thickness Float Switch is a genuine OEM sensing component used in compatible Manitowoc NEO commercial ice machines. The switch works within the machine's water-level and ice-production control system to provide feedback associated with ice thickness and the freeze-cycle sequence.

Manitowoc identifies OEM part number 040001783 as the NEO Ice Thickness Float Switch. It is a separate component from the NEO harvest float switch, so correct part identification is especially important before ordering.

Reliable float-switch operation is critical to consistent ice production. A float that sticks, becomes restricted by scale, is incorrectly positioned, has damaged wiring, or no longer changes electrical state correctly can contribute to inconsistent ice thickness, abnormal freeze-cycle behavior, early or delayed cycle transitions, or reduced ice-machine performance.

OEM Part Details

• Manufacturer: Manitowoc Ice
• OEM Part Number: 040001783
• MPN: 040001783
• SKU: 040001783
• Part Type: Ice Thickness Float Switch
• Product Family: Manitowoc NEO
• Application: Commercial Ice Machines
• System: Ice Thickness / Freeze-Cycle Sensing
• Function: Ice-Thickness Related Water-Level Feedback

What the Manitowoc 040001783 Ice Thickness Float Switch Does

The Manitowoc 040001783 float switch provides the machine control system with sensing feedback related to the water level and ice-thickness condition during the freeze cycle. Proper float movement and electrical switching help the machine progress through its operating sequence according to the original Manitowoc control design.

Proper operation helps support:

• Consistent ice-thickness control
• Reliable freeze-cycle feedback
• Normal machine sequencing
• Consistent ice bridge formation
• Reduced abnormal cycle behavior
• Reliable commercial ice production
• Proper interaction with related Manitowoc controls

Ice Thickness Float vs. Harvest Float

These are two separate Manitowoc controls and should not be confused.

• 040001783: NEO Ice Thickness Float Switch
• 040002396: NEO Harvest Float Switch

The ice-thickness float is associated with ice formation and freeze-cycle sensing, while the harvest float performs a separate function in the harvest-control sequence. Manitowoc documentation lists both components separately in the same machine family.

Verified Manitowoc Application

Manitowoc's official U0240 parts documentation lists 040001783 as the Ice Thickness Float Switch in the evaporator compartment. Always verify the complete model, serial number, and original float assembly before ordering because NEO equipment can vary by production revision.

• Verified Model: U0240

Common Signs of an Ice Thickness Float Switch Problem

Qualified commercial ice-machine technicians may inspect the Manitowoc 040001783 when troubleshooting conditions such as:

• Ice thickness is inconsistent
• Ice forms thinner than expected
• Ice forms thicker than expected
• Freeze cycle duration becomes inconsistent
• Machine does not progress normally through the freeze sequence
• Float does not move freely
• Float sticks in one position
• Mineral scale restricts movement
• Switch operates intermittently
• Wiring or connector is damaged
• Electrical feedback does not match float position
• Physical damage is visible on the float assembly

These symptoms do not automatically confirm float-switch failure. Water level, water inlet operation, water pump performance, water distribution, refrigeration-system condition, wiring, control-board operation, and the separate harvest float switch can create overlapping symptoms. The complete machine sequence should be diagnosed before replacing the float.

Scale & Mineral Buildup

Because the float operates in the machine's water system, scale and mineral accumulation are important inspection points. Deposits can restrict movement and prevent the float from responding correctly.

Inspect for:

• Mineral scale
• Sediment
• Debris
• Mechanical binding
• Restricted float travel
• Damage to the float or stem
• Contamination around the mounting area

Cleaning and maintenance should follow applicable Manitowoc procedures. If the float remains unreliable after the water system has been properly serviced, replacement may be required.

Diagnosing Thin Ice

Thin ice does not automatically mean the 040001783 float switch has failed. Technicians should evaluate the complete ice-production system.

Possible inspection points include:

• Ice thickness float movement
• Float switch electrical state
• Water level
• Water pump operation
• Water distribution
• Refrigeration-system performance
• Evaporator condition
• Control-board response

Diagnosing Thick Ice

Excessive ice thickness can also result from more than one cause. Technicians should verify that the float moves correctly and that the machine control system receives the expected signal.

Inspect:

• Float position
• Float travel
• Electrical switch operation
• Scale or debris
• Water level
• Control-board input
• Related wiring and connectors

Inspect Wiring & Connectors

A wiring or connection problem can create the same symptoms as a failed float switch.

Inspect for:

• Loose terminals
• Damaged connectors
• Broken conductors
• Pinched wiring
• Corrosion
• Moisture contamination
• Damaged insulation
• Previous wiring repairs

Any damaged electrical connection should be corrected before installing a replacement float switch.

Technician Checks Before Ordering

• OEM part number 040001783
• Complete Manitowoc Ice model
• Machine serial number
• Original ice-thickness float identification
• Float shape and configuration
• Mounting arrangement
• Wire length and routing
• Connector configuration
• Float position
• Relationship to the water trough
• Control-board connection

Do not select a replacement float switch solely by appearance. Manitowoc uses different float switches for different sensing functions, including a separate harvest float switch. Match the OEM number and machine information before ordering.

Commercial Ice Machine Applications

Manitowoc NEO commercial ice machines are used in demanding foodservice environments where dependable water control and consistent ice production are important.

• Restaurants
• Bars
• Hotels
• Convenience stores
• Supermarkets
• Schools
• Hospitals
• Universities
• Institutional kitchens
• Corporate cafeterias
• Catering operations
• Commercial foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing commercial ice-making equipment and follow applicable Manitowoc service procedures.

Before removing the original 040001783 ice thickness float switch, document:

• Float orientation
• Mounting position
• Wire routing
• Connector location
• Relationship to the water trough

After installation, verify that the float moves freely, the electrical connection is secure, and the machine proceeds normally through the freeze and harvest sequence.

Why Correct Manitowoc OEM Identification Matters

The ice-thickness float and harvest float can appear similar but perform different functions. Using Manitowoc OEM part number 040001783 provides the clearest replacement reference and helps prevent confusion with other float-switch components.

Frequently Asked Questions

What is Manitowoc 040001783?

Manitowoc 040001783 is the OEM NEO ice thickness float switch used in compatible Manitowoc commercial ice machines.

Is 040001783 the ice thickness float or harvest float?

040001783 is the ice thickness float switch. Manitowoc 040002396 is the separate harvest float switch.

What does the ice thickness float switch do?

The float provides sensing feedback associated with water level and ice formation during the freeze cycle so the machine control system can manage normal ice production.

Does Manitowoc 040001783 fit the U0240?

Yes. Manitowoc's official U0240 parts documentation lists 040001783 as the Ice Thickness Float Switch.

Can a bad ice thickness float cause thin ice?

A float-switch or sensing problem can contribute to inconsistent ice thickness, but water distribution, refrigeration performance, water level, and control-system problems should also be inspected.

Can a bad ice thickness float cause thick ice?

Yes, incorrect float feedback can contribute to abnormal ice thickness, but the complete machine sequence should be diagnosed before replacement.

Can scale make the float switch stick?

Yes. Mineral deposits can restrict float movement and interfere with normal sensing operation.

Can damaged wiring make the float appear defective?

Yes. Loose, corroded, broken, or damaged wiring can interrupt the float-switch signal even when the float itself still moves correctly.

Can I replace 040001783 with the Manitowoc harvest float?

No. They are separate controls with different functions. Use OEM part number 040001783 for the NEO Ice Thickness Float Switch.

How do I confirm Manitowoc 040001783 is the correct replacement?

Verify OEM part number 040001783, the complete Manitowoc model and serial number, original float, wiring, connector, mounting arrangement, and applicable service documentation before ordering.

Is professional installation recommended?

Yes. Commercial ice-machine sensing and water-control components should be diagnosed and serviced by qualified foodservice-equipment technicians.
