Lincoln OEM Conveyor Drive Coupling Center Sleeve – 1.5"

Lincoln OEM Conveyor Drive Coupling Center Sleeve – 1.5"

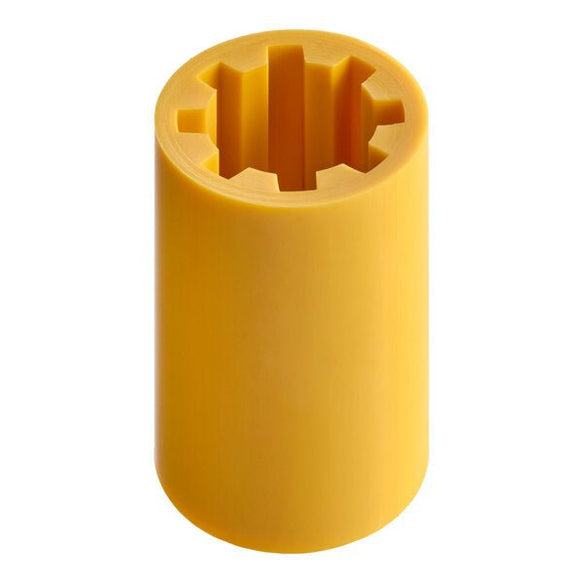

The Lincoln Conveyor Drive Coupling Center is a commercial cooking-equipment drive component designed for compatible Lincoln conveyor oven systems. This 1.5-inch coupling sleeve installs within the applicable conveyor drive assembly and helps transfer rotational movement between mating drive components.

Reliable conveyor-drive engagement is critical to consistent commercial oven operation. A coupling that becomes worn, cracked, stripped, distorted, loose, or otherwise damaged can allow the drive system to slip or disconnect, potentially causing intermittent conveyor movement, abnormal noise, inconsistent belt travel, or complete loss of conveyor operation.

When inspection confirms coupling wear or damage, replacing the original component with the correct Lincoln-compatible coupling center helps restore the mechanical connection required by the conveyor drive system.

Product Details

• Manufacturer: Lincoln
• Part Type: Conveyor Drive Coupling Center / Coupling Sleeve
• Length: 1.5"
• Application: Commercial Conveyor Cooking Equipment
• System: Conveyor Drive System
• Function: Mechanical Drive Coupling / Torque Transfer

What the Lincoln Conveyor Coupling Does

The Lincoln conveyor coupling center provides a mechanical connection between applicable components in the conveyor-drive system. As the drive motor and gearbox operate, the coupling helps transfer rotational movement through the drive arrangement so the conveyor can travel at the intended operating speed.

Proper coupling condition helps support:

• Consistent conveyor movement
• Reliable mechanical drive engagement
• Proper transfer of rotational force
• Reduced drive-system slippage
• Stable conveyor speed
• Reduced vibration and mechanical play
• Dependable commercial conveyor-oven operation

1.5-Inch Coupling Sleeve

This coupling is identified with an overall 1.5-inch length. Length is an important replacement characteristic, but it should not be used as the only method of identifying compatibility.

Before ordering, compare the original coupling for:

• Overall length
• Outside diameter
• Internal drive profile
• Number and shape of internal splines or drive surfaces
• Material and construction
• Relationship to the mating shafts
• Equipment model and serial number

Common Signs of a Worn Conveyor Coupling

Qualified commercial cooking-equipment technicians may inspect the coupling when troubleshooting conditions such as:

• Conveyor does not move
• Conveyor moves intermittently
• Drive motor runs but conveyor remains stationary
• Conveyor hesitates or slips
• Abnormal clicking or mechanical noise
• Excessive play in the conveyor drive
• Coupling is visibly cracked
• Internal drive surfaces are rounded or stripped
• Coupling no longer fits securely on the mating drive components
• Conveyor stops under normal load
• Drive components rotate without transferring movement to the conveyor

These symptoms do not automatically confirm coupling failure. The drive motor, gearbox, shafts, sprockets, chains, bearings, conveyor belt, and other mechanical components can create similar symptoms. The complete conveyor-drive system should be inspected before replacing parts.

Motor Runs but Conveyor Does Not Move

If the Lincoln conveyor motor operates but the conveyor does not travel, the mechanical connection between the motor, gearbox, coupling, and conveyor drive should be inspected.

Technicians may need to check:

• Coupling center
• Drive motor output
• Gearbox output
• Drive shaft
• Sprockets
• Chains
• Keys or retaining hardware where applicable
• Conveyor shaft
• Mechanical obstructions

A motor can operate normally while a damaged coupling prevents torque from reaching the conveyor.

Inspect the Internal Drive Profile

The internal shape of a conveyor coupling is critical to correct engagement with the mating drive components. Wear inside the sleeve may not always be obvious from the exterior.

Inspect for:

• Rounded internal drive surfaces
• Stripped splines
• Cracking
• Distortion
• Excessive clearance
• Evidence of slipping
• Heat or friction damage

If the mating shaft or drive component is also worn, installing a new coupling alone may not provide a durable repair.

Inspect Related Conveyor Drive Components

When replacing the coupling, inspect the surrounding conveyor-drive system for conditions that may have contributed to the original failure.

Related components may include:

• Conveyor drive motor
• Gear reduction assembly
• Drive shafts
• Sprockets
• Chains
• Bearings
• Conveyor belt
• Retaining hardware
• Speed-control components where applicable

A binding conveyor or damaged downstream drive component can place excessive mechanical load on the coupling and cause premature wear.

Technician Checks Before Ordering

Before ordering this Lincoln conveyor coupling center, verify:

• Lincoln equipment manufacturer
• Complete conveyor oven model
• Equipment serial number
• Original coupling identification where available
• 1.5" overall length
• Internal drive profile
• Outside diameter
• Mating shaft configuration
• Drive orientation
• Condition of the surrounding conveyor drive system

Do not order by length or appearance alone. Conveyor couplings can have similar outside dimensions while using different internal profiles, shaft interfaces, materials, and equipment applications.

Commercial Conveyor Oven Applications

Lincoln conveyor cooking equipment is commonly used in high-volume foodservice operations where consistent belt movement and repeatable cooking time are important.

• Pizzerias
• Restaurants
• Quick-service restaurants
• Commercial kitchens
• Convenience stores
• Hotels
• Schools
• Universities
• Institutional kitchens
• Foodservice production lines

Installation & Service Notes

Disconnect electrical power and allow the commercial cooking equipment to cool to a safe service temperature before working on the conveyor-drive system.

Before removing the original coupling, document its position, orientation, mating components, and relationship to the drive motor or gearbox.

Compare the replacement coupling with the original component before installation.

After installation, verify:

• The coupling engages both mating components correctly
• No excessive mechanical play is present
• The conveyor travels smoothly
• The conveyor direction is correct
• No abnormal clicking or slipping occurs
• The coupling remains securely engaged under normal load
• The conveyor completes normal operating cycles

Commercial conveyor cooking equipment should be serviced by qualified foodservice-equipment personnel.

Why Correct Coupling Identification Matters

Commercial conveyor-drive couplings can appear nearly identical while using different lengths, diameters, internal drive profiles, shaft interfaces, and equipment applications.

For the strongest replacement match, compare the original Lincoln coupling with the 1.5-inch length, internal profile, complete equipment model, serial number, and mating drive components before ordering.

Frequently Asked Questions

What is this Lincoln conveyor coupling?

It is a mechanical coupling center or sleeve used within a compatible Lincoln commercial conveyor-oven drive system.

How long is this coupling?

This coupling is identified as approximately 1.5 inches long.

What does a conveyor drive coupling do?

The coupling transfers rotational movement between mating conveyor-drive components so the conveyor can move during normal equipment operation.

Can a bad coupling cause the conveyor to stop?

Yes. A cracked, stripped, or worn coupling can prevent torque from being transferred through the drive system.

Why does the motor run but the conveyor not move?

Possible causes include a damaged coupling, gearbox, shaft, sprocket, chain, retaining hardware, or another mechanical drive problem.

Can a worn coupling cause intermittent conveyor movement?

Yes. Internal wear can allow the coupling to slip under load and cause intermittent or inconsistent conveyor movement.

Should the shafts be inspected when replacing the coupling?

Yes. Worn mating drive surfaces can damage a new coupling or prevent proper engagement.

Can I order this coupling based only on the 1.5-inch length?

No. Verify the internal profile, diameter, shaft configuration, equipment model, serial number, and original component before ordering.

How do I confirm this is the correct Lincoln coupling?

Compare the original coupling's length, internal drive profile, outside diameter, mating shaft configuration, equipment model, and serial number with the replacement.

Is professional installation recommended?

Yes. Commercial conveyor-drive equipment combines mechanical, electrical, and high-temperature systems and should be serviced by qualified foodservice-equipment personnel.
