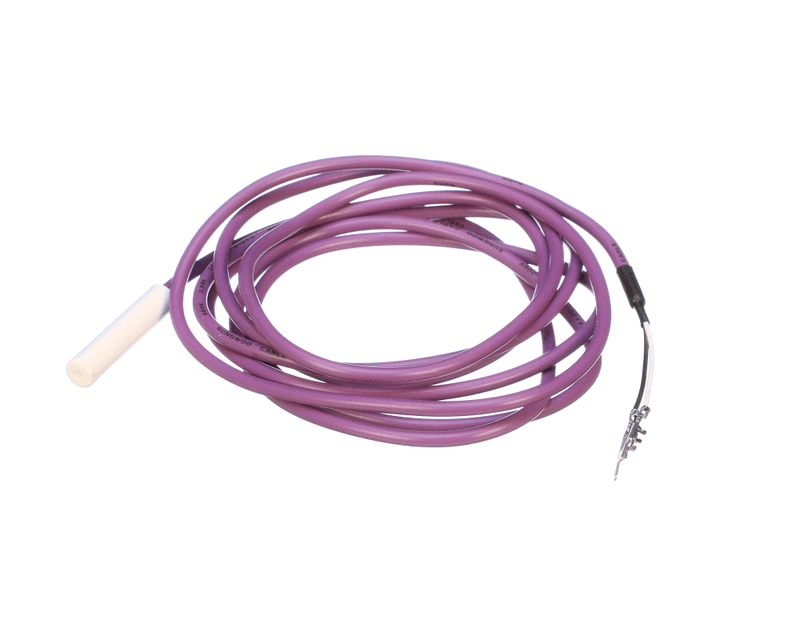

Everest RS01-00 Cabinet Temperature Sensor, Purple Wire

Everest RS01-00 Cabinet Temperature Sensor, Purple Wire

The Everest RS01-00 measures cabinet temperature for a matching Everest electronic control. Its purple wire identifies the cabinet-sensing application; it is distinct from the gray-wire evaporator-coil sensor.

Verified part details

• Manufacturer part number: RS01-00
• Sensor application: cabinet temperature
• Wire identification: purple
• Sensor type: NTC

Function and repair symptoms

An implausible temperature display, probe-related alarm, or erratic cycling may involve the cabinet sensor. Loose connectors, damaged cable insulation and incorrect probe placement should also be checked.

Use this component for the specified commercial refrigeration application in restaurant, foodservice and facility equipment. Symptoms alone do not identify a failed part; check the related assembly before ordering.

Compatibility and ordering checks

Documented model references include ESR2D2, ESWF2. These references apply only to the matching factory configuration; confirm the serial number, original part and any production changes before ordering.

Before you order: Compare the original sensor part number, cable and connector arrangement, control-board version and sensing location. Verify the sensor against the equipment model and serial number; wire color alone is not a fit test.

Frequently asked questions

Is RS01-00 a cabinet sensor or an evaporator sensor?

RS01-00 is the purple-wire cabinet temperature sensor. Do not substitute it for an evaporator-coil probe solely because the connectors look similar.

Will a new sensor fix every temperature alarm?

No. A technician should inspect the cable and connector and compare the sensor response with the controller's specified test values.

Does RS01-00 change the temperature setting?

No. It supplies temperature information. The controller's setpoint and operating parameters determine when cooling is called for.

What should I check before ordering RS01-00?

Confirm the original sensor part number, cable and connector arrangement, control-board version and sensing location. Verify the sensor against the equipment model and serial number; wire color alone is not a fit test.

How do I confirm the RS01-00 repair is complete?

After installation by a qualified technician, verify the relevant circuit and normal equipment operation using the manufacturer's service procedure. Recheck connections and confirm the original symptom has been resolved.

Browse Everest commercial refrigeration parts for related service components. For part-identification help, email jmatos@partsdirectonline.com with the equipment model, serial number and a photo of the original part.
