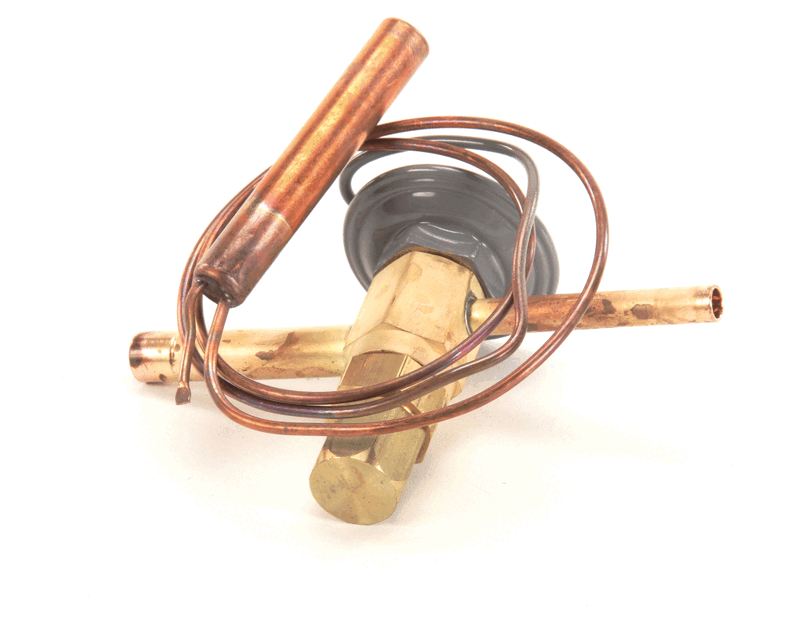

Delfield 3516224 Valve, Expansion R22

Delfield 3516224 Expansion Valve

The Delfield 3516224 is identified as valve, expansion r22. This component meters refrigerant into the specified evaporator circuit. Match the manufacturer reference to the equipment documentation so the replacement addresses the correct assembly and operating application.

Verified part identification and specifications

Commercial application and model references

Documented equipment model references include 15048R22, 15072R22, 15148R22, 15172R22, 15248R22, 15272R22, 15948R22, 15972R22, 18666BUC, 18666PTB, 18693BST, 18699PTB, 18699PTBM, N14, SLR29SH, SLR56S, SLR56SH, SLRPT29SHSH, SLRPT56GS, SLRPT56SS, SLRRI34G, SLRRI34S, SLRRI66G, SLRRI66S, SLRRI99GR. Confirm the exact model suffix, serial range and component revision before ordering.

Symptoms and technician checks

Inspect this component when the equipment shows abnormal evaporator feeding after the refrigeration system has been diagnosed. Check refrigerant, capacity, fittings, equalization and sensing-bulb arrangement before attributing the fault to this part. These symptoms guide diagnosis; they do not establish that replacement is necessary.

Valve diagnosis requires checking system conditions and bulb installation. Match refrigerant and capacity; an incorrect valve can cause poor operation even if the fittings connect.

Before you order

Use manufacturer reference 3516224 and compare the item identification above with the removed part. Check the model and serial label, the corresponding parts diagram and any revision or serial break. Confirm the component supplied rather than assuming related brackets, wiring or accessories are included.

Frequently asked questions

What is Delfield 3516224?

It is identified as valve, expansion r22. It meters refrigerant into the specified evaporator circuit.

Which models are referenced for 3516224?

Documented equipment model references include 15048R22, 15072R22, 15148R22, 15172R22, 15248R22, 15272R22, 15948R22, 15972R22, 18666BUC, 18666PTB, 18693BST, 18699PTB, 18699PTBM, N14, SLR29SH, SLR56S, SLR56SH, SLRPT29SHSH, SLRPT56GS, SLRPT56SS, SLRRI34G, SLRRI34S, SLRRI66G, SLRRI66S, SLRRI99GR. Confirm the exact model suffix, serial range and component revision before ordering.

What specifications distinguish 3516224?

Refrigerant: R22; Inlet: 1/4 inch sweat; Outlet: 3/8 inch sweat; Capacity: 1/4 ton; Equalization: Internal; Application: Medium temperature; Documented catalog weight: 0.92 lb.

Will a valve with the same fittings be suitable?

Not on that basis alone. Refrigerant, capacity, equalization and temperature application must also match the specified circuit.

What should be checked before replacing 3516224?

Check refrigerant, capacity, fittings, equalization and sensing-bulb arrangement. Valve diagnosis requires checking system conditions and bulb installation. Match refrigerant and capacity; an incorrect valve can cause poor operation even if the fittings connect.

What information should I provide to confirm 3516224?

Provide the equipment model and serial number, the number on the removed component and a clear photograph of its connections or mounting. Ask for confirmation of Delfield 3516224 against the equipment diagram.
