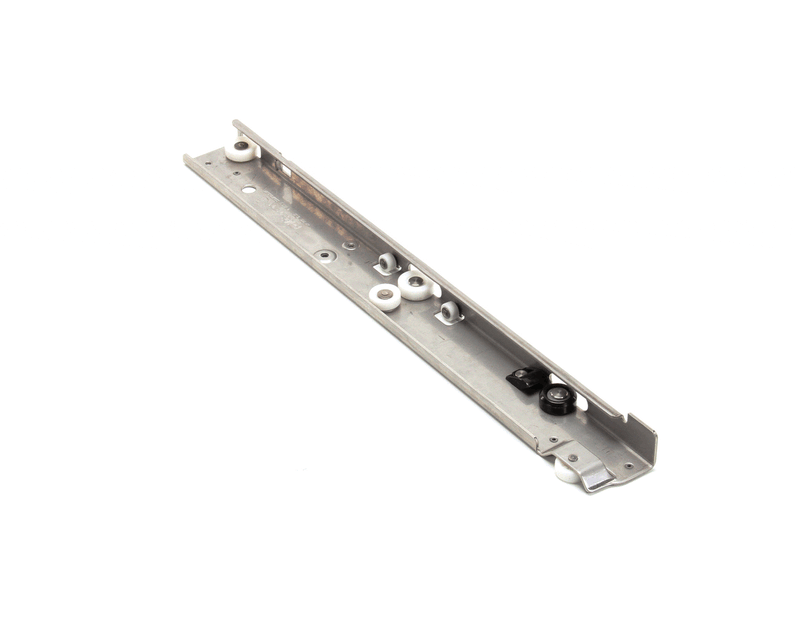

Delfield 3234578 Drawer Slide, 20-3/4" Right Hand

Delfield 3234578 Drawer Slide

The Delfield 3234578 is identified as drawer slide, 20-3/4" right hand. This component guides and supports the matching refrigerated drawer during opening and closing. Match the manufacturer reference to the equipment documentation so the replacement addresses the correct assembly and operating application.

Verified part identification and specifications

Commercial application and model references

Documented equipment model references include D4432N12M. Confirm the exact model suffix, serial range and component revision before ordering.

Symptoms and technician checks

Inspect this component when the equipment shows binding, excessive play or visible rail and roller wear. Check rail length, mounting holes, drawer position, handing and the opposing slide before attributing the fault to this part. These symptoms guide diagnosis; they do not establish that replacement is necessary.

Inspect the opposite slide and drawer alignment. A right-hand rail and a left-hand rail are separate components; confirm the position shown in the parts diagram.

Before you order

Use manufacturer reference 3234578 and compare the item identification above with the removed part. Check the model and serial label, the corresponding parts diagram and any revision or serial break. Confirm the component supplied rather than assuming related brackets, wiring or accessories are included.

Frequently asked questions

What is Delfield 3234578?

It is identified as drawer slide, 20-3/4" right hand. It guides and supports the matching refrigerated drawer during opening and closing.

Which models are referenced for 3234578?

Documented equipment model references include D4432N12M. Confirm the exact model suffix, serial range and component revision before ordering.

What specifications distinguish 3234578?

Listed length/dimension: 20-3/4"; Handing: Right hand; Documented catalog weight: 2 lb.

Can a left-hand rail be used on the right side?

Use the rail specified for that side and drawer position. Do not assume mirror-image slides or different drawer levels interchange.

What should be checked before replacing 3234578?

Check rail length, mounting holes, drawer position, handing and the opposing slide. Inspect the opposite slide and drawer alignment. A right-hand rail and a left-hand rail are separate components; confirm the position shown in the parts diagram.

What information should I provide to confirm 3234578?

Provide the equipment model and serial number, the number on the removed component and a clear photograph of its connections or mounting. Ask for confirmation of Delfield 3234578 against the equipment diagram.
