Delfield 000-BNH-0030-S Evaporator Drain Pan Assembly

Delfield 000-BNH-0030-S OEM Evaporator Drain Pan Assembly

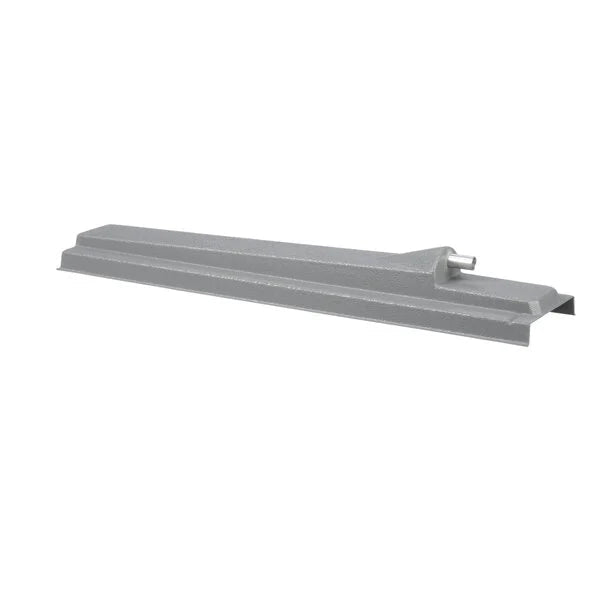

The Delfield 000-BNH-0030-S Evaporator Drain Pan Assembly is an OEM commercial refrigeration component designed for compatible Delfield equipment. Installed beneath or in association with the evaporator section, the drain pan provides a controlled collection point for condensate and defrost water so moisture can be directed into the equipment's drainage system.

Proper condensate management is important to commercial refrigeration operation. A damaged, corroded, incorrectly positioned, leaking, or restricted drain pan can contribute to water inside the cabinet, water beneath the equipment, ice accumulation, drainage problems, and moisture-related service issues.

When inspection confirms that the original drain pan requires replacement, using the correct Delfield OEM 000-BNH-0030-S helps restore the drainage configuration intended for compatible Delfield refrigeration equipment.

OEM Part Details

• Manufacturer: Delfield
• OEM Part Number: 000-BNH-0030-S
• MPN: 000-BNH-0030-S
• Part Type: Evaporator Drain Pan Assembly
• Application: Commercial Refrigeration Equipment
• Function: Evaporator Condensate & Defrost Water Collection

What the Delfield 000-BNH-0030-S Drain Pan Does

The Delfield 000-BNH-0030-S evaporator drain pan collects moisture produced around the evaporator section during normal refrigeration and applicable defrost operation. The collected water is then directed toward the equipment's drain system according to the cabinet design.

Proper drain-pan operation helps support:

• Controlled collection of evaporator condensate
• Proper removal of defrost water
• Reduced unwanted water inside the refrigerated cabinet
• Reduced water accumulation around the evaporator section
• Proper drainage into the equipment's drain path
• Reduced moisture-related cabinet problems
• Dependable commercial refrigeration operation

Compatible Delfield Models

The Delfield 000-BNH-0030-S OEM Evaporator Drain Pan Assembly is listed for compatible Delfield commercial refrigeration equipment including:

15048R22, 15072R22, 15148R22, 15172R22, 15248R22, 15272R22, 15948R22, 15972R22, 186114PTB, 186114PTBM, 18648PTB, 18648PTBM, 18660BST, 18660BUC, 18660P32, 18660PTB, 18660PTBM, 18666BST, 18666BUC, 18666PT, 18666PTB, 18670PTB, 18672PTB, 18672PTBM, 18690PTB, 18691PTB, 18691PTBM, 18699PT, 18699PTB, 18699PTBM, 1886632, 18BC72R, 18RC60G, 18RC62, 18RC62R, 18RC72R, 18RC83L, 18RC85L, 18RC90R, 18RC96, 18RC96V, 18WC68R, 18WC78R, 18WC87R, 18WC95, 404812, 424818, 4448N12, 6051, D00A099L, F18DC99, F18RC60, F18RC72C, F18RC96, F18RR70, F18WC68, F2952C, V15072M32, V18124, V1812432, V18136, V18142, V18148, V1814832, V18154, V18160, V18166, V18172, V18184, V18196, V18224, V18236, V18242, V18248, V18254, V18260, V18266, V18272, V18284, V18296, V18324, V1832432, V18336, V18342, V1834232, V18348, V1834828, V1834832, V18348P32, V18354, V18354PT, V18360, V1836028, V18372, V1837232, V18372P32, V18381, V18381PT, V18384, V18396, V1839632, V18396P32, V184114, V18436, V18448, V1844828, V18454, V1845432, V18460, V1846028, V1846032, V18466, V1846632, V18472, V1847232, V18478, V1847832, V18484, V1848432, V18496, V185114, V18536, V18548, V18554, V18560, V1856028, V1856032, V18566, V18572, V18578, V1857832, V18596, V186114, V18611432, V186114P32, V18636, V18648, V1864828, V1864832, V18654, V1865428, V1865432, V18660, V1866028, V1866032, V18660P32, V18660PTB, V18666, V1866628, V1866632, V18666PT, V18670PT, V18672, V18672PTB, V18678, V1867832, V18678P32, V18684, V1868428, V18684P32, V18690P32, V18693, V18693PT, V18696, V18696DOMA, V18699PTB, V187114, V18736, V1873628, V18748, V1874828, V18754, V1875432, V1876032, V18766, V1876628, V1876632, V18772, V1877228, V1877232, V18778, V18784, V1878428, V1878432, V18784DOM, V18796

Compatibility Note: Delfield equipment can vary by serial number, production date, cabinet configuration, and factory revision. Always verify OEM part number 000-BNH-0030-S, the complete equipment model and serial number, drain-pan mounting arrangement, and the original component before ordering.

Common Signs of a Drain Pan or Drainage Problem

Qualified commercial refrigeration technicians may inspect the Delfield 000-BNH-0030-S when troubleshooting conditions such as:

• Water collecting inside the refrigerated cabinet
• Water beneath or around the equipment
• Condensate overflowing from the evaporator area
• Ice accumulation around the drain pan
• Visible cracks or holes in the pan
• Corrosion or deterioration of the pan
• Drain pan no longer positioned correctly
• Water does not flow toward the drain outlet
• Drain connection is loose or damaged
• Repeated moisture accumulation after defrost
• Water staining around the evaporator section
• Drainage system repeatedly backs up

These symptoms do not automatically confirm drain-pan failure. A clogged drain line, frozen drain, incorrect pan positioning, damaged drain connection, defrost problem, excessive frost, cabinet-leveling issue, or other moisture source can produce similar symptoms. The complete drainage system should be inspected before replacing the pan.

Inspect the Complete Evaporator Drainage System

The drain pan is only one part of the equipment's condensate-management system. If water is accumulating inside the cabinet or overflowing from the evaporator area, technicians should inspect the complete drainage path.

Inspection points may include:

• Evaporator drain pan
• Drain outlet
• Drain tubing
• Drain fittings
• Drain trap where applicable
• Drain heater where applicable
• Evaporator section
• Defrost system
• Cabinet leveling
• Evidence of ice or debris blocking water flow

Correcting the underlying drainage problem can help prevent repeat water accumulation after the replacement pan is installed.

Common Causes of Water Inside a Commercial Refrigerator

Water inside a refrigerated cabinet can originate from several conditions. Before replacing the 000-BNH-0030-S, technicians should determine where the moisture is coming from and why it is not draining correctly.

Possible causes include:

• Blocked evaporator drain
• Frozen drain line
• Damaged drain pan
• Drain pan positioned incorrectly
• Loose or disconnected drain tubing
• Defrost water exceeding normal drainage capacity
• Excessive evaporator icing
• Door gasket allowing excessive humid air infiltration
• Cabinet not properly leveled
• Damaged or restricted drain components

Proper diagnosis helps prevent replacing a functional drain pan when another part of the drainage or refrigeration system is responsible for the water problem.

Technician Checks Before Ordering

Before replacing the Delfield 000-BNH-0030-S evaporator drain pan assembly, qualified technicians should verify:

• OEM part number 000-BNH-0030-S
• Complete Delfield equipment model
• Equipment serial number
• Original drain-pan configuration
• Pan dimensions and overall form
• Mounting arrangement
• Drain outlet location
• Drain connection arrangement
• Associated drain tubing
• Evaporator configuration
• Defrost-system condition
• Drain heater condition where applicable
• Cabinet leveling
• Signs of corrosion, cracks, or physical damage

OEM part-number verification should be the primary method of selecting the replacement. Drain pans that appear similar can differ in dimensions, drain location, mounting points, depth, slope, and equipment application.

Evaporator Icing & Drainage Problems

Repeated water or ice accumulation around the drain pan can sometimes originate from a refrigeration or defrost problem rather than the pan itself.

If excessive ice is present, technicians may need to inspect:

• Defrost controls
• Defrost heaters where applicable
• Defrost termination components
• Temperature sensors
• Evaporator fan operation
• Drain heater where applicable
• Door gaskets
• Air infiltration into the cabinet

The cause of abnormal evaporator icing should be corrected before returning the equipment to normal operation.

Commercial Refrigeration Applications

Compatible Delfield equipment using the 000-BNH-0030-S drain pan assembly is commonly installed in demanding commercial environments including:

• Restaurants
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Universities
• Institutional kitchens
• Corporate cafeterias
• Catering facilities
• Convenience stores
• Foodservice operations

Installation & Service Notes

Disconnect electrical power and follow Delfield service procedures before servicing commercial refrigeration equipment. Allow evaporator and defrost components to reach a safe service condition before beginning work.

Before removing the original 000-BNH-0030-S drain pan, document its mounting position, slope, drain-outlet location, and relationship to the evaporator and associated drain tubing.

Inspect the drain line and fittings for restrictions, ice, debris, cracks, or damage before installing the replacement pan. Clean or repair the drainage path as required so water can flow freely away from the evaporator section.

Install the replacement pan in the correct orientation and verify that it is securely mounted and properly positioned to collect condensate and defrost water.

After installation, verify that water flows from the pan into the drain system without leaking, backing up, or pooling in the evaporator section.

Why Correct OEM Drain Pan Identification Matters

Commercial refrigeration drain pans can look similar while having different dimensions, mounting arrangements, drain locations, slopes, depths, and cabinet applications.

Using Delfield OEM part number 000-BNH-0030-S as the primary identification reference helps technicians and purchasing departments select the correct replacement instead of relying solely on physical appearance.

Always verify the complete equipment model, serial number, original drain pan, mounting arrangement, and drainage configuration before ordering.

Frequently Asked Questions

What is the Delfield 000-BNH-0030-S?

The Delfield 000-BNH-0030-S is an OEM evaporator drain pan assembly used to collect condensate and defrost water in compatible Delfield commercial refrigeration equipment.

What does the Delfield evaporator drain pan do?

The drain pan collects water produced around the evaporator section and directs it into the equipment's drainage system.

Which Delfield models use the 000-BNH-0030-S drain pan?

The 000-BNH-0030-S is listed for a large range of compatible Delfield 18-series, V18-series, 150/151/152/159-series and additional commercial refrigeration configurations. The complete model list is provided above for OEM-number and equipment-model matching.

Can a damaged drain pan cause water inside the refrigerator?

Yes. A cracked, corroded, leaking, or incorrectly positioned pan can contribute to water accumulation. A blocked drain line or other drainage problem can produce the same symptom.

Why is water overflowing from the evaporator drain pan?

Possible causes include a blocked drain, frozen drain line, excessive evaporator icing, incorrect pan positioning, damaged drain tubing, or another restriction in the drainage system.

Can a frozen drain cause water to leak into the cabinet?

Yes. If the drain path freezes, condensate and defrost water may back up and overflow into the refrigerated cabinet.

Should the drain line be cleaned when replacing the pan?

The drain line should be inspected and cleared if restricted. Installing a new pan without correcting a blocked drainage path can result in continued water problems.

Can a defrost problem cause the drain pan to overflow?

Abnormal evaporator icing or defrost-system problems can contribute to excessive water or ice around the drain pan. The complete evaporator and defrost system should be evaluated when repeated drainage problems occur.

How do I confirm Delfield 000-BNH-0030-S is the correct replacement?

Verify OEM part number 000-BNH-0030-S, the complete Delfield model and serial number, and compare the original pan's dimensions, mounting arrangement, drain location, and drainage configuration before ordering.

Is professional installation recommended?

Qualified commercial refrigeration service personnel can verify the evaporator drainage system, defrost operation, pan installation, and associated components when diagnosing repeated water or ice problems.
