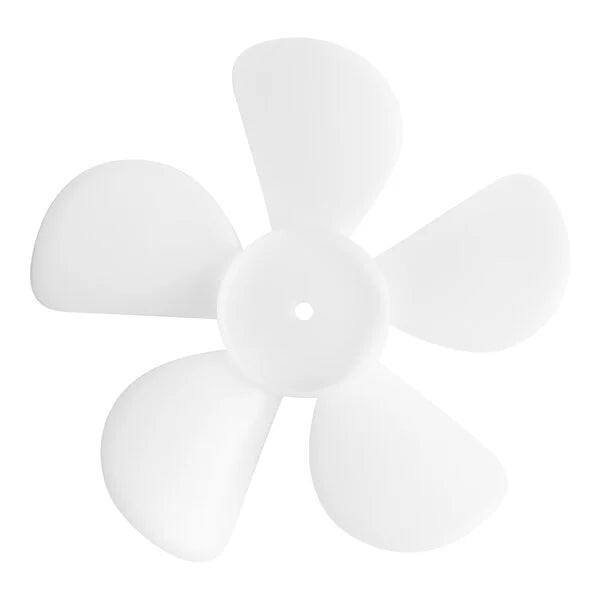

Continental 40623 OEM Evaporator Fan Blade – 5-1/2" CCW

Continental 40623 OEM Evaporator Fan Blade – 5-1/2" CCW

The Continental Refrigeration 40623 Evaporator Fan Blade is a genuine OEM plastic fan blade designed for compatible Continental commercial refrigeration equipment. This blade is identified by its 5-1/2" nominal diameter, counterclockwise (CCW) rotation, 21° pitch, five-blade configuration, and 3/16" shaft bore.

The evaporator fan blade works with the fan motor to move refrigerated air across the evaporator coil and throughout the cabinet. Correct airflow is essential to proper heat transfer, stable cabinet temperatures, consistent product cooling, and normal refrigeration-system operation.

When qualified diagnosis confirms that the original blade is cracked, warped, damaged, loose, or no longer moving air correctly, using the correct Continental OEM 40623 helps restore the fan configuration intended for compatible Continental equipment.

OEM Part Details & Specifications

• Manufacturer: Continental Refrigeration
• OEM Part Number: 40623
• MPN: 40623
• Part Type: Evaporator Fan Blade
• Nominal Diameter: 5-1/2"
• Rotation: Counterclockwise (CCW)
• Blade Count: 5
• Pitch: 21°
• Bore: 3/16" / approximately .181"
• Mount: Shaft Mount
• Material: Plastic
• Application: Commercial Refrigeration Equipment
• System: Evaporator Airflow
• Function: Refrigerated Cabinet Air Circulation

What the Continental 40623 Fan Blade Does

The Continental 40623 fan blade mounts to the applicable evaporator fan motor and moves air across the evaporator coil. This airflow allows heat from the refrigerated cabinet to transfer through the evaporator section so the refrigeration system can maintain the intended cabinet temperature.

Proper evaporator airflow helps support:

• Consistent cabinet temperatures
• Proper evaporator heat transfer
• Reliable refrigerated-air circulation
• Normal cabinet pull-down
• Reduced hot and cold spots
• Proper product-storage conditions
• Reduced excessive compressor run time
• Dependable commercial refrigeration operation

5-1/2" Diameter Evaporator Fan Blade

The Continental 40623 is identified as a 5-1/2-inch nominal-diameter fan blade. Diameter is an important replacement specification because the blade must have adequate clearance inside the fan guard or shroud while still providing the airflow required by the evaporator section.

Do not select another blade simply because it has a similar diameter. Rotation, pitch, bore size, blade count, hub configuration, shaft position, and equipment application must also match.

Counterclockwise (CCW) Rotation

This blade is designed for counterclockwise rotation. Correct rotation is critical because reversing the intended blade direction can significantly change airflow performance.

Rotation should be confirmed using the same viewing reference used for the original blade and equipment documentation. Published service information for 40623 describes the blade as CCW when referenced from the appropriate motor-side orientation.

21° Blade Pitch

The Continental 40623 is identified with a 21-degree blade pitch. Blade pitch affects airflow volume and motor load and should match the original fan configuration.

A replacement blade with the wrong pitch may:

• Move too little air
• Load the motor incorrectly
• Increase motor temperature
• Create abnormal noise
• Reduce evaporator performance
• Contribute to unstable cabinet temperatures

3/16" Shaft Bore

The center bore is identified as approximately 3/16" (.181"). The bore must fit the intended fan-motor shaft correctly and allow the blade to remain centered and secure during operation.

A bore that is too loose can create wobble and vibration, while an incorrect or forced fit can damage the blade hub or motor shaft.

Five-Blade Plastic Construction

The 40623 uses a five-blade plastic configuration. Blade count, shape, pitch, and material work together to provide the intended evaporator airflow.

Do not substitute a four-blade or differently pitched fan simply because the outside diameter is similar.

Common Signs of a Damaged Evaporator Fan Blade

Qualified commercial refrigeration technicians may inspect the Continental 40623 when troubleshooting conditions such as:

• Reduced airflow through the evaporator section
• Uneven cabinet cooling
• Fan vibration
• Scraping or clicking noise
• Cracked or broken blade
• Bent or distorted blade sections
• Loose blade on the motor shaft
• Fan does not remain centered
• Blade contacts the guard or shroud
• Ice repeatedly contacts the fan
• Motor runs but little air is moving
• Cabinet temperature recovery becomes slower

These symptoms do not automatically confirm fan-blade failure. Fan motor problems, worn bearings, incorrect motor rotation, ice buildup, airflow restrictions, defrost problems, and refrigeration-system conditions can create similar symptoms.

Inspect the Evaporator Fan Motor

When replacing the fan blade, inspect the fan motor at the same time. A damaged motor or worn bearing can cause the new blade to wobble or contact surrounding components.

Check for:

• Excessive shaft play
• Worn bearings
• Bent motor shaft
• Loose motor mounting
• Abnormal motor noise
• Motor overheating
• Incorrect rotation
• Intermittent operation

A motor with excessive shaft movement can quickly damage a replacement blade.

Inspect the Fan Guard & Shroud

The blade must maintain proper clearance from the fan guard, shroud, wiring, evaporator coil, and surrounding cabinet components.

Before restoring power, rotate the blade manually and verify:

• The blade turns freely
• No blade tip contacts the guard
• The hub remains centered
• Clearance is consistent through a full rotation
• No wiring interferes with the rotating blade

Check for Evaporator Ice Buildup

If the original blade was damaged by ice, determine why the evaporator section is icing before installing the replacement.

Possible areas to inspect include:

• Defrost-system operation
• Defrost heater
• Defrost terminator or fan-delay controls
• Evaporator airflow
• Door gasket condition
• Air infiltration
• Drainage system
• Temperature controls

Repeated ice contact can damage both the fan blade and fan motor.

Diagnosing Reduced Evaporator Airflow

Reduced airflow does not automatically mean the fan blade needs replacement. The complete airflow path should be inspected.

Possible causes include:

• Damaged fan blade
• Weak or failed fan motor
• Incorrect motor rotation
• Dirty evaporator coil
• Ice accumulation
• Blocked air passages
• Incorrect blade position on the shaft
• Damaged fan guard

Correct diagnosis helps prevent replacement of a functional blade when another airflow component is responsible.

Technician Checks Before Ordering

Before ordering Continental 40623, verify:

• OEM part number 40623
• Complete Continental equipment model
• Equipment serial number
• 5-1/2" nominal blade diameter
• CCW rotation
• 21° pitch
• Five-blade configuration
• 3/16" / .181" bore
• Shaft-mount configuration
• Original fan motor
• Motor shaft condition
• Blade position
• Required airflow direction
• Fan-guard clearance

Do not order by diameter alone. Similar fan blades can use different rotation, pitch, bore size, blade count, hub configuration, and refrigeration applications.

Commercial Refrigeration Applications

Continental commercial refrigeration equipment using evaporator fan systems is commonly installed in demanding foodservice environments including:

• Restaurants
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Universities
• Institutional kitchens
• Convenience stores
• Supermarkets
• Foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing any commercial refrigeration fan assembly.

Before removing the original blade, document:

• Blade orientation
• Position on the motor shaft
• Motor rotation
• Airflow direction
• Fan-guard clearance

Compare the replacement Continental 40623 with the original blade before installation.

After installation:

• Rotate the blade manually with power disconnected
• Verify smooth rotation
• Confirm adequate guard clearance
• Restore power and verify correct rotation
• Check for abnormal vibration or noise
• Confirm proper airflow across the evaporator
• Verify normal cabinet temperature recovery

Why Correct Continental OEM Identification Matters

Commercial refrigeration fan blades can appear nearly identical while having different diameters, rotations, pitches, bore sizes, blade counts, and motor applications.

Using Continental Refrigeration OEM part number 40623 together with the verified 5-1/2" diameter, CCW rotation, 21° pitch, five-blade configuration, and 3/16" bore provides a much stronger replacement reference than selecting by appearance alone.

Frequently Asked Questions

What is Continental Refrigeration 40623?

Continental 40623 is a genuine OEM plastic evaporator fan blade used in compatible Continental commercial refrigeration equipment.

What size is Continental 40623?

The blade is identified as a 5-1/2" nominal-diameter evaporator fan blade.

What rotation is Continental 40623?

Continental 40623 is identified as a counterclockwise (CCW) fan blade.

How many blades does Continental 40623 have?

The 40623 uses a five-blade configuration.

What is the pitch of Continental 40623?

Published service specifications identify a 21° pitch.

What is the bore size?

The shaft bore is approximately 3/16" (.181").

Is Continental 40623 an evaporator fan blade?

Yes. Continental and current OEM parts listings identify 40623 for evaporator airflow applications.

Can a damaged fan blade cause poor cooling?

Yes. A broken, loose, or incorrectly rotating blade can reduce evaporator airflow and contribute to uneven or elevated cabinet temperatures.

Should I inspect the fan motor when replacing the blade?

Yes. Inspect motor shaft play, bearings, mounting, rotation, and operation before installing the new blade.

Can I replace 40623 with another 5-1/2" fan blade?

No. Verify diameter, CCW rotation, 21° pitch, five-blade configuration, 3/16" bore, shaft mount, equipment model, and serial number.

How do I confirm Continental 40623 is correct?

Verify OEM part number 40623, the complete Continental model and serial number, original blade size, rotation, pitch, bore, mounting, and motor configuration before ordering.

Is professional installation recommended?

Qualified commercial refrigeration personnel can verify fan-blade fit, motor condition, rotation, clearance, airflow, and refrigeration performance during replacement.
