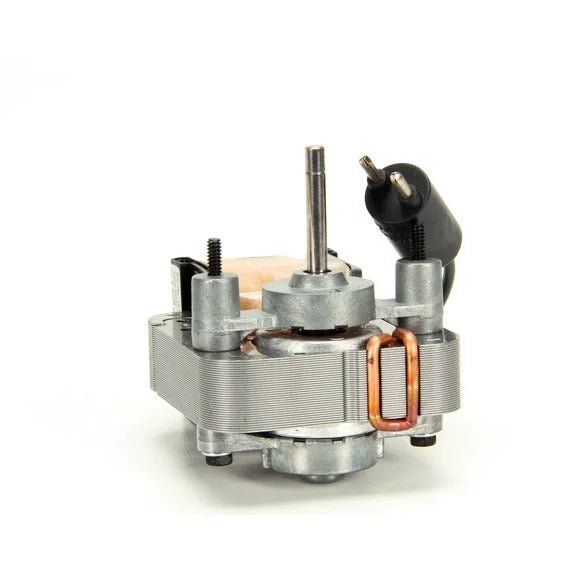

Continental 4-750 OEM Evaporator Fan Motor – 115V 3000 RPM

Continental 4-750 OEM Evaporator Fan Motor – 115V 3000 RPM

The Continental Refrigeration 4-750 Evaporator Fan Motor is a genuine OEM commercial refrigeration motor designed for compatible Continental equipment. Rated for 115V operation at 3000 RPM, this motor drives the applicable evaporator fan blade to circulate refrigerated air across the evaporator coil and throughout the cabinet.

Reliable evaporator airflow is critical to commercial refrigeration performance. A fan motor that fails to start, runs slowly, operates intermittently, develops excessive shaft play, becomes noisy, or overheats can reduce airflow and contribute to warm cabinet temperatures, uneven cooling, excessive frost, longer compressor run times, or reduced refrigeration performance.

When qualified diagnosis confirms fan-motor replacement is required, using the correct Continental OEM 4-750 helps restore the airflow and electrical configuration intended for compatible Continental refrigeration equipment.

OEM Part Details & Specifications

• Manufacturer: Continental Refrigeration
• OEM Part Number: 4-750
• MPN: 4-750
• Part Type: Evaporator Fan Motor
• Voltage: 115V
• Speed: 3000 RPM
• Current: 0.75A
• Rotation: CWLE / Clockwise Viewed from Lead End
• Approx. Length: 4.9"
• Approx. Width: 4.35"
• Approx. Height: 4.35"
• Application: Commercial Refrigeration Equipment
• System: Evaporator Airflow
• Function: Evaporator Fan Drive / Refrigerated Air Circulation

What the Continental 4-750 Evaporator Fan Motor Does

The Continental 4-750 fan motor supplies the rotational power required to turn the applicable evaporator fan blade. The resulting airflow moves refrigerated air across the evaporator coil and through the cabinet so heat can be transferred efficiently and cabinet temperatures can remain stable.

Proper fan-motor operation helps support:

• Consistent evaporator airflow
• Reliable refrigerated-air circulation
• Proper evaporator heat transfer
• Stable cabinet temperatures
• Normal temperature pull-down
• Reduced hot and cold spots
• Reduced excessive compressor run time
• Dependable commercial refrigeration operation

115V, 3000 RPM OEM Motor

Continental 4-750 is identified as a 115V, 3000 RPM evaporator fan motor. Voltage and motor speed are critical replacement specifications and should match the original motor and equipment requirements.

Do not select a replacement motor based solely on physical appearance. Similar refrigeration motors may use different voltages, RPM ratings, rotations, shaft dimensions, electrical connections, current ratings, or mounting configurations.

Clockwise Lead-End Rotation

Published service information identifies this motor as CWLE, meaning clockwise rotation when viewed from the lead end. Motor rotation must match the intended fan blade and airflow configuration.

Incorrect rotation can result in reduced or reversed airflow even when the fan motor itself is operating normally.

Common Signs of an Evaporator Fan Motor Problem

• Evaporator fan does not run
• Motor starts intermittently
• Fan runs slower than expected
• Motor hums without starting
• Motor becomes unusually hot
• Grinding, rattling, or bearing noise is present
• Motor shaft has excessive play
• Fan blade wobbles during operation
• Airflow across the evaporator is reduced
• Cabinet develops uneven temperatures
• Temperature recovery becomes slow
• Evaporator develops abnormal frost patterns
• Electrical terminals show signs of overheating

These symptoms do not automatically confirm motor failure. Fan blades, ice buildup, wiring, controls, motor mounting, evaporator restrictions, or other refrigeration-system conditions can create similar symptoms. The complete fan circuit should be diagnosed before replacing the motor.

Diagnosing an Evaporator Fan That Will Not Run

A non-running fan does not automatically mean the Continental 4-750 has failed. Before replacement, qualified technicians should determine whether the motor receives the correct electrical supply and whether the fan assembly can rotate freely.

Check applicable:

• 115V supply to the motor
• Motor wiring
• Electrical connectors
• Fan-delay or defrost controls
• Door or control switches where applicable
• Fan blade movement
• Motor shaft and bearings
• Ice or mechanical obstruction

Inspect the Fan Blade

When replacing the 4-750 motor, inspect the connected evaporator fan blade for damage or incorrect mounting.

Check for:

• Cracked blades
• Bent or distorted blades
• Loose blade mounting
• Incorrect blade position on the shaft
• Excessive vibration
• Evidence of guard or shroud contact
• Incorrect blade rotation

A damaged or incorrectly installed blade can overload the replacement motor or reduce airflow.

Inspect the Motor Shaft & Bearings

Mechanical wear in the motor can cause noise, vibration, blade movement, and poor airflow.

Inspect for:

• Excessive side-to-side shaft movement
• Bearing noise
• Rough shaft rotation
• Bent shaft
• Mechanical binding
• Evidence of overheating

Check for Evaporator Ice Buildup

If the original fan motor or blade was obstructed by ice, determine why the evaporator section is icing before installing the replacement motor.

Possible causes include:

• Defrost-control problems
• Failed defrost heater
• Fan-delay or terminator issues
• Door gasket leakage
• Warm-air infiltration
• Drainage problems
• Airflow restrictions
• Temperature-control issues

Inspect Wiring & Electrical Connections

Commercial refrigeration operates in a cold, humid environment where moisture and vibration can affect electrical connections.

Inspect for:

• Loose terminals
• Damaged connectors
• Broken wiring
• Corrosion
• Heat-damaged insulation
• Pinched conductors
• Moisture contamination
• Evidence of electrical arcing

Correct damaged wiring or connectors before energizing the replacement motor.

Technician Checks Before Ordering

Before ordering Continental 4-750, verify:

• OEM part number 4-750
• Complete Continental equipment model
• Equipment serial number
• 115V electrical requirement
• 3000 RPM motor speed
• CWLE rotation
• Original motor current rating
• Motor shaft dimensions
• Mounting configuration
• Electrical connector arrangement
• Original evaporator fan blade
• Required airflow direction

Do not order by voltage or appearance alone. Commercial refrigeration fan motors can have similar housings while using different speeds, rotations, shafts, electrical characteristics, and equipment applications.

Commercial Refrigeration Applications

Continental commercial refrigeration equipment is commonly used in demanding foodservice environments including:

• Restaurants
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Universities
• Institutional kitchens
• Supermarkets
• Convenience stores
• Foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing any commercial refrigeration fan assembly.

Before removing the original motor, document:

• Motor orientation
• Wire locations
• Electrical connections
• Mounting arrangement
• Shaft position
• Fan blade position
• Airflow direction

Compare the replacement Continental 4-750 with the original motor before installation.

After installation, verify:

• Motor starts reliably
• Fan rotates in the correct direction
• Blade rotates freely
• No abnormal vibration is present
• No unusual motor noise occurs
• Evaporator airflow is restored
• Motor does not overheat
• Cabinet temperature recovers normally

Why Correct Continental OEM Identification Matters

Commercial refrigeration fan motors can appear nearly identical while having different voltages, RPM ratings, rotations, current ratings, shaft configurations, and equipment applications.

Using Continental Refrigeration OEM part number 4-750 together with the verified 115V, 3000 RPM and CWLE specifications provides a strong replacement reference when comparing the new motor with the original component.

Frequently Asked Questions

What is Continental 4-750?

Continental 4-750 is a genuine OEM evaporator fan motor used in compatible Continental commercial refrigeration equipment.

What voltage is Continental 4-750?

The motor is rated for 115V.

What speed is Continental 4-750?

The motor is identified at 3000 RPM.

What rotation is Continental 4-750?

Published service information identifies the motor as CWLE, or clockwise when viewed from the lead end.

What amperage is Continental 4-750?

Published parts information identifies the motor at approximately 0.75A.

Can a failed evaporator fan motor cause poor cooling?

Yes. Reduced evaporator airflow can contribute to uneven cabinet temperatures, slow pull-down, frost problems, and longer compressor operation.

Should I inspect the fan blade when replacing the motor?

Yes. Check the blade for damage, looseness, incorrect positioning, and proper rotation before returning the equipment to service.

Can ice buildup damage the fan motor?

Yes. Ice that restricts the fan blade can place abnormal mechanical load on the motor. The cause of the icing should also be corrected.

Does Continental 4-750 have a verified model list?

A reliable public model-fitment list is not currently published in the source used here. Verify the complete Continental model and serial number before ordering.

Can I replace 4-750 with any 115V fan motor?

No. Verify OEM number 4-750, RPM, rotation, amperage, shaft, mounting, electrical connections, model, and serial number.

How do I confirm Continental 4-750 is correct?

Verify OEM part number 4-750, the complete Continental model and serial number, 115V rating, 3000 RPM speed, CWLE rotation, shaft configuration, mounting, and original motor markings before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration fan motors and electrical components should be diagnosed and installed by qualified refrigeration personnel.
