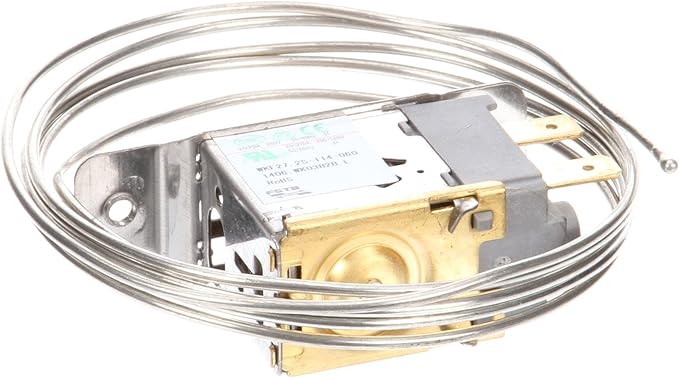

Continental 4-749 OEM Freezer Temperature Control – 58" Capillary

Continental 4-749 OEM Freezer Temperature Control – 58" Capillary

The Continental Refrigeration 4-749 Temperature Control is a genuine OEM mechanical freezer thermostat designed for compatible Continental commercial refrigeration equipment. This control uses a 58-inch capillary sensing system to respond to temperature conditions and cycle the applicable refrigeration control circuit.

Reliable temperature-control operation is critical in commercial refrigeration because a thermostat that no longer senses or switches correctly can contribute to warm cabinet temperatures, excessive cooling, continuous compressor operation, short cycling, unstable product temperatures, or equipment that does not respond correctly to temperature adjustments.

When qualified diagnosis confirms temperature-control replacement is required, using the correct Continental OEM 4-749 helps restore the original freezer temperature-control configuration intended for compatible equipment.

OEM Part Details & Specifications

• Manufacturer: Continental Refrigeration
• OEM Part Number: 4-749
• MPN: 4-749
• Part Type: Mechanical Freezer Temperature Control
• Capillary Length: 58"
• Control Style: Mechanical / Dial Adjustable
• Application: Commercial Freezer Equipment
• System: Refrigeration Temperature Control
• Function: Cabinet Temperature Regulation

What the Continental 4-749 Temperature Control Does

The Continental 4-749 mechanical thermostat responds to temperature changes through its sensing bulb and capillary system. As cabinet conditions change, the thermostat opens or closes the applicable refrigeration control circuit according to the equipment's operating requirements.

Proper temperature-control operation helps support:

• Consistent freezer cabinet temperatures
• Proper compressor cycling
• Reliable response to temperature changes
• Normal cabinet pull-down
• Stable frozen-product storage conditions
• Temperature recovery after door openings
• Reduced excessive compressor run time
• Dependable commercial refrigeration performance

58-Inch Capillary Sensing System

The Continental 4-749 is identified with a 58-inch capillary. Capillary length is an important replacement characteristic because the sensing bulb must reach the intended sensing location without stretching, kinking, crushing, or changing the original routing.

A thermostat with the wrong capillary length may appear similar but may not install or sense temperature correctly in the intended cabinet.

Before ordering, compare the original component for:

• Capillary length
• Sensing-bulb configuration
• Bulb mounting location
• Capillary routing
• Terminal arrangement
• Control shaft and dial arrangement
• Mounting configuration

How a Mechanical Freezer Thermostat Works

A mechanical refrigeration thermostat does not use a digital temperature sensor in the same way as an electronic controller. Instead, the sensing bulb and capillary respond to temperature changes and mechanically actuate the electrical contacts inside the control.

When cabinet temperature rises above the control's operating point, the thermostat can call for refrigeration. As the cabinet cools, the control opens the circuit according to its operating range and differential.

This mechanical switching helps regulate the freezer cabinet and coordinate compressor operation.

Common Signs of a Failing Temperature Control

Qualified commercial refrigeration technicians may inspect the Continental 4-749 when troubleshooting conditions such as:

• Freezer cabinet remains warmer than intended
• Cabinet becomes excessively cold
• Compressor runs continuously
• Compressor does not start when cabinet temperature rises
• Refrigeration cycles too frequently
• Temperature fluctuates excessively
• Control adjustment produces little or no response
• Equipment operates intermittently
• Capillary tube is kinked or damaged
• Sensing bulb is loose or incorrectly positioned
• Electrical terminals show heat damage
• Control contacts operate inconsistently

These symptoms do not automatically confirm thermostat failure. Refrigerant-system problems, compressor issues, relays, wiring, evaporator airflow, condenser restrictions, door gaskets, sensing-bulb placement, and other refrigeration controls can produce similar symptoms. Diagnose the complete refrigeration system before replacing the thermostat.

Diagnosing a Freezer That Runs Too Warm

A commercial freezer that is running warm does not automatically have a failed 4-749 temperature control.

Depending on the equipment configuration, technicians should inspect:

• Actual cabinet temperature
• Thermostat response
• Compressor operation
• Evaporator fan operation
• Condenser airflow
• Condenser cleanliness
• Refrigerant-system performance
• Door gasket condition
• Evaporator frost pattern
• Electrical connections

Testing the complete refrigeration system helps prevent unnecessary thermostat replacement when another component is responsible for the warm-cabinet condition.

Diagnosing a Freezer That Runs Too Cold

A mechanical thermostat that does not interrupt the refrigeration circuit correctly can contribute to excessive cooling or unusually long compressor run times.

Technicians may need to inspect:

• Thermostat switching operation
• Sensing-bulb position
• Capillary condition
• Control setting
• Associated wiring
• Relay or contactor operation where applicable
• Actual cabinet temperature

Inspect the Sensing Bulb

The sensing bulb must remain correctly positioned so the thermostat can respond to the intended freezer temperature.

Inspect for:

• Loose sensing-bulb mounting
• Incorrect bulb position
• Physical damage
• Bulb movement from the original location
• Improper contact with the intended sensing surface
• Evidence of previous incorrect installation

An incorrectly positioned sensing bulb can make a functional thermostat appear defective.

Inspect the Capillary Tube

The capillary tube is part of a sealed sensing system and should be handled carefully during service.

Check for:

• Sharp bends
• Kinks
• Crushed sections
• Cuts
• Pinching
• Incorrect routing
• Contact with sharp cabinet edges

Do not cut, shorten, splice, or sharply bend the capillary tube.

Temperature Control vs. Refrigeration-System Problem

Temperature complaints can originate from multiple refrigeration-system conditions. Before replacing the mechanical control, technicians should confirm whether the thermostat is actually failing to switch at the appropriate temperature.

Other possible causes include:

• Low refrigerant charge
• Restricted refrigerant flow
• Dirty condenser
• Failed fan motor
• Blocked airflow
• Compressor problems
• Door gasket leakage
• Excessive door openings
• Warm product loading
• Defrost-system problems where applicable

Inspect Wiring & Electrical Connections

A wiring or terminal problem can interfere with thermostat operation and may also create heat that damages the replacement control.

Inspect for:

• Loose terminals
• Burned connectors
• Discolored wiring
• Melted insulation
• Corrosion
• Damaged crimps
• Broken conductors
• Evidence of electrical arcing

Correct damaged wiring before installing the replacement control.

Technician Checks Before Ordering

Before ordering the Continental 4-749 mechanical freezer temperature control, verify:

• OEM part number 4-749
• Complete Continental equipment model
• Equipment serial number
• 58" capillary length
• Original sensing-bulb configuration
• Sensing-bulb location
• Terminal arrangement
• Electrical rating on the original control
• Mounting arrangement
• Control shaft and knob configuration
• Capillary routing

Do not select a refrigeration thermostat by appearance alone. Similar controls can use different temperature ranges, electrical ratings, capillary lengths, contact configurations, mounting arrangements, and equipment applications.

Commercial Freezer Applications

Continental Refrigeration commercial freezer equipment is commonly installed in demanding foodservice environments including:

• Restaurants
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Universities
• Institutional kitchens
• Convenience stores
• Supermarkets
• Foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing commercial refrigeration equipment.

Before removing the original temperature control, document:

• Wire positions
• Terminal connections
• Control mounting orientation
• Capillary routing
• Sensing-bulb position
• Control-knob position

Compare the replacement Continental 4-749 with the original control before installation.

Route the 58-inch capillary according to the original cabinet configuration. Avoid kinking, crushing, or sharply bending the tube.

After installation, operate the equipment through normal refrigeration cycles and verify:

• Compressor starts when cooling is required
• Compressor cycles off appropriately
• Temperature adjustment produces the expected response
• Cabinet pulls down normally
• Final freezer temperature remains stable
• No abnormal electrical heating occurs

Why Correct Continental OEM Identification Matters

Mechanical freezer thermostats can appear nearly identical while having different operating ranges, capillary lengths, sensing bulbs, terminal configurations, and equipment applications.

Using Continental Refrigeration OEM part number 4-749 together with the verified 58-inch capillary provides a stronger replacement reference than choosing by appearance alone.

Frequently Asked Questions

What is Continental 4-749?

Continental 4-749 is a genuine OEM mechanical freezer temperature control used in compatible Continental commercial refrigeration equipment.

How long is the capillary tube?

The Continental 4-749 is identified with a 58-inch capillary tube.

What does the Continental 4-749 thermostat do?

The thermostat responds to freezer temperature through its sensing system and cycles the applicable refrigeration control circuit.

Can a bad thermostat cause the freezer to run continuously?

Yes. A control that does not open the refrigeration circuit correctly can contribute to continuous compressor operation. Other electrical or refrigeration-system problems can create the same symptom.

Can a bad temperature control cause a warm freezer?

Yes. If the control does not call for refrigeration correctly, cabinet temperature can rise. Compressor, fan, airflow, refrigerant, and door-seal conditions should also be inspected.

Can a kinked capillary affect thermostat operation?

Yes. Physical damage to the capillary sensing system can prevent the thermostat from responding correctly.

Does sensing-bulb position matter?

Yes. Incorrect sensing-bulb placement can cause inaccurate control response even if the thermostat itself is functional.

Can I replace 4-749 with any thermostat that has a 58-inch capillary?

No. Capillary length alone does not establish compatibility. Verify OEM part number 4-749, temperature range, electrical rating, terminals, mounting, sensing arrangement, equipment model, and serial number.

How do I confirm Continental 4-749 is correct?

Verify OEM part number 4-749, complete Continental model and serial number, 58-inch capillary, original electrical specifications, terminals, mounting arrangement, and sensing-bulb configuration before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.
