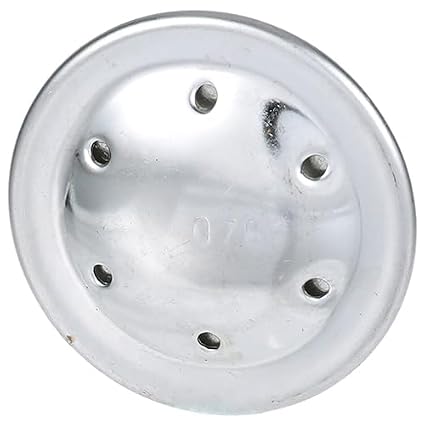

Bunn 01082.0000 Sprayhead, 6-Hole Stainless Steel

Bunn 01082.0000 Stainless 6-Hole Sprayhead

The Bunn 01082.0000 sprayhead is the outlet component that disperses hot water from a commercial Bunn brewer over the coffee bed. Its six-hole pattern affects how evenly water contacts the grounds inside the brew basket. Even distribution matters because coffee extraction depends on contact time, water temperature, water volume, and flow pattern. A clogged or damaged sprayhead can make a brewer look like it has a water-volume or heating problem when the real issue is poor distribution at the basket.

During a brew cycle, hot water moves from the tank through the brewer tubing and exits through the sprayhead. The holes break the stream into multiple smaller paths so the grounds wet more evenly. If lime scale blocks one or more holes, water can channel through part of the coffee bed. That creates weak coffee, uneven flavor, basket overflow, or grounds displacement. Because sprayheads are exposed to hot water minerals, scale buildup is a common field issue.

Failure Symptoms Technicians See

• Water sprays unevenly or exits from only part of the sprayhead.
• Coffee bed has dry pockets or channels after brewing.
• Brew basket overflows because water is not distributing correctly.
• Coffee tastes weak, bitter, or inconsistent between batches.
• Visible lime scale blocks the six spray holes.
• Sprayhead threads or face are damaged from repeated removal.

Diagnostic Approach

A technician or operator should remove and inspect the sprayhead for mineral blockage, damaged threads, deformation, or missing gasket contact. If cleaning restores an even pattern, replacement may not be needed. If holes are enlarged, blocked beyond cleaning, or the part is damaged, replacement helps restore the intended water pattern. Related components include the sprayhead fitting, brew funnel, tank outlet, tubing, water inlet valve, flow restrictor, and deliming schedule.

FAQ

What does Bunn 01082.0000 do?
It distributes hot water through six holes over the coffee grounds during the brew cycle.

What happens when it clogs?
Water distribution becomes uneven, which can cause weak coffee, overflow, or uneven extraction.

Can it be cleaned?
Often yes, if mineral buildup is light. Damaged or badly restricted sprayheads should be replaced.

What related parts affect spray pattern?
Tank outlet, tubing, water valve, flow restrictor, brew funnel, and deliming condition all affect flow.
