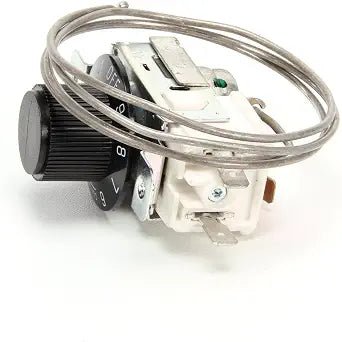

Beverage-Air 502-323B OEM Temperature Control Thermostat

Beverage-Air 502-323B OEM Temperature Control Thermostat

The Beverage-Air 502-323B Temperature Control Thermostat is an OEM temperature-control component designed for compatible Beverage-Air commercial refrigeration equipment. This mechanical thermostat responds to temperature at its sensing location and controls the applicable refrigeration circuit to help maintain proper cabinet temperature during normal operation.

Reliable temperature control is essential in commercial refrigeration. A thermostat that is no longer responding or switching correctly can contribute to warm cabinet temperatures, excessive cooling, long compressor run times, abnormal cycling, or equipment that does not respond correctly as cabinet temperature changes.

When qualified diagnosis confirms thermostat failure, replacing the original component with the correct Beverage-Air OEM 502-323B helps restore the temperature-control configuration intended for compatible equipment.

OEM Part Details

• Manufacturer: Beverage-Air
• OEM Part Number: 502-323B
• MPN: 502-323B
• Part Type: Temperature Control Thermostat
• Application: Commercial Refrigeration Equipment
• Function: Cabinet Temperature Control

What the Beverage-Air 502-323B Thermostat Does

The Beverage-Air 502-323B thermostat works within the equipment's refrigeration control circuit. As cabinet temperature changes, the thermostat responds through its sensing system and changes the state of the connected control circuit according to the equipment's operating requirements.

Proper thermostat operation helps support:

• Consistent refrigerated cabinet temperatures
• Proper refrigeration cycling
• Reliable response to temperature changes
• Normal compressor cycling
• Temperature recovery after door openings
• Reduced excessive temperature swings
• Dependable commercial refrigeration operation

Compatible Beverage-Air Models

The Beverage-Air 502-323B OEM Temperature Control Thermostat is listed for compatible Beverage-Air commercial refrigeration equipment including:

• SM34N
• SM34NS
• SM34NW
• SM49
• SM49N
• SM49NS
• SM58
• SM58N
• SM58NS
• SM58NW
• ST34N
• ST34NS
• ST49N
• ST58N
• ST58NS

Compatibility Note: Beverage-Air equipment can vary by serial number, production date, voltage, refrigeration configuration, and factory revision. Always verify OEM part number 502-323B, the complete equipment model and serial number, and the original thermostat before ordering.

Common Signs of a Failing Temperature Control Thermostat

Qualified commercial refrigeration technicians may inspect the Beverage-Air 502-323B when troubleshooting conditions such as:

• Cabinet temperature runs warmer than intended
• Cabinet becomes excessively cold
• Compressor does not cycle off normally
• Compressor does not start when cabinet temperature rises
• Refrigeration cycles too frequently
• Long compressor run times
• Large temperature fluctuations
• Intermittent refrigeration operation
• Temperature adjustment produces little or no response
• Thermostat operates inconsistently
• Damaged sensing system
• Loose or damaged thermostat terminals
• Burned or overheated electrical connections

These symptoms do not automatically confirm thermostat failure. Refrigerant-system problems, compressor issues, relays, wiring, evaporator fans, condenser problems, airflow restrictions, door gaskets, and other refrigeration components can produce similar symptoms. Proper diagnosis should be completed before replacing the thermostat.

Sensing System Inspection

The sensing system is critical to proper mechanical thermostat operation. Damage, incorrect positioning, or improper routing can affect how the thermostat responds to cabinet temperature.

Technicians should inspect for:

• Kinked or damaged capillary tubing where applicable
• Crushed or flattened sections
• Sharp bends
• Damaged sensing component
• Incorrect sensing location
• Loose sensing-component mounting
• Physical damage caused during previous service
• Routing that differs from the original installation

The sensing assembly should not be cut, crushed, sharply bent, kinked, or otherwise modified.

Technician Checks Before Ordering

Before replacing the Beverage-Air 502-323B thermostat, qualified commercial refrigeration technicians should verify:

• OEM part number 502-323B
• Complete Beverage-Air equipment model
• Equipment serial number
• Original thermostat identification
• Equipment supply voltage where applicable
• Thermostat terminal arrangement
• Mounting configuration
• Sensing-system condition
• Capillary routing where applicable
• Associated wiring and connectors
• Compressor-control circuit operation
• Relay operation where applicable
• Refrigeration-system condition
• Signs of overheated or damaged terminals

OEM part-number verification should be the primary method of selecting the replacement. Commercial refrigeration thermostats that appear similar can have different temperature ranges, electrical ratings, sensing configurations, capillary lengths, terminal arrangements, and equipment applications.

Diagnosing a Warm Beverage-Air Cabinet

A Beverage-Air refrigerator that is running warm does not automatically have a failed 502-323B thermostat. The thermostat should be evaluated as part of the complete refrigeration system.

Depending on the equipment configuration, technicians may need to check:

• Actual cabinet temperature
• Thermostat response
• Compressor operation
• Evaporator fan operation
• Condenser cleanliness and airflow
• Refrigerant-system performance
• Evaporator frost pattern
• Door gasket condition
• Cabinet airflow
• Electrical wiring and connections

Testing the complete refrigeration system helps prevent unnecessary thermostat replacement when another component or system condition is responsible for the temperature problem.

Diagnosing a Cabinet That Runs Too Cold

A thermostat that does not interrupt the refrigeration circuit correctly can contribute to excessive cooling or unusually long compressor operation. However, other electrical and refrigeration conditions can create similar symptoms.

Technicians may need to inspect:

• Thermostat operation
• Sensing-component placement
• Capillary condition where applicable
• Control wiring
• Relay operation where applicable
• Actual cabinet temperature
• Equipment control settings

Proper diagnosis helps determine whether the thermostat itself has failed or whether another component is keeping the refrigeration system operating longer than intended.

Commercial Refrigeration Applications

Compatible Beverage-Air equipment using the 502-323B temperature control is commonly installed in demanding commercial environments including:

• Restaurants
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Universities
• Convenience stores
• Institutional kitchens
• Corporate cafeterias
• Catering facilities
• Foodservice operations

Installation & Service Notes

Disconnect electrical power and follow Beverage-Air service procedures before servicing commercial refrigeration equipment.

Before removing the original 502-323B thermostat, document the electrical connections, mounting position, sensing-system routing, and sensing location. Compare the replacement thermostat with the original component before installation.

Carefully route the sensing assembly according to the original equipment configuration. Do not sharply bend, kink, crush, cut, or otherwise damage the sensing system.

Inspect wiring, terminals, connectors, and associated refrigeration controls for overheating, corrosion, looseness, or other damage before installing the replacement thermostat.

After installation, operate the equipment through an appropriate refrigeration cycle and verify normal compressor cycling, temperature response, cabinet pull-down, and final operating temperature.

Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.

Why Correct OEM Thermostat Identification Matters

Commercial refrigeration thermostats can look nearly identical while having different temperature ranges, electrical ratings, sensing configurations, capillary lengths, terminal layouts, and equipment applications.

Using Beverage-Air OEM part number 502-323B as the primary identification reference helps technicians and purchasing departments select the correct replacement rather than relying solely on physical appearance.

Always verify the complete equipment model, serial number, original thermostat, and applicable Beverage-Air equipment information before ordering.

Frequently Asked Questions

What is the Beverage-Air 502-323B?

The Beverage-Air 502-323B is an OEM temperature-control thermostat used in compatible Beverage-Air commercial refrigeration equipment.

Which Beverage-Air models use the 502-323B thermostat?

The 502-323B is listed for compatible SM34N, SM34NS, SM34NW, SM49, SM49N, SM49NS, SM58, SM58N, SM58NS, SM58NW, ST34N, ST34NS, ST49N, ST58N, and ST58NS equipment.

Does Beverage-Air 502-323B fit SM34 equipment?

It is listed for compatible SM34N, SM34NS, and SM34NW equipment. Verify the complete model, serial number, and original thermostat before ordering.

Does 502-323B fit Beverage-Air SM49 equipment?

It is listed for compatible SM49, SM49N, and SM49NS equipment. Confirm the serial number and original temperature control before replacement.

Does Beverage-Air 502-323B fit SM58 equipment?

It is listed for compatible SM58, SM58N, SM58NS, and SM58NW equipment. Verify the complete equipment identification before ordering.

Does 502-323B fit Beverage-Air ST models?

It is listed for compatible ST34N, ST34NS, ST49N, ST58N, and ST58NS equipment.

Can a bad 502-323B thermostat cause a refrigerator to run warm?

Yes. A thermostat that does not properly call for refrigeration can contribute to elevated cabinet temperature. Compressor operation, airflow, fans, refrigerant-system performance, and other controls should also be inspected.

Can a bad thermostat cause the refrigerator to run continuously?

A thermostat that does not interrupt the refrigeration control circuit correctly can contribute to continuous operation, but other refrigeration and electrical problems can produce the same symptom.

Can a damaged sensing system affect thermostat operation?

Yes. Damage or incorrect positioning of the thermostat's sensing system can prevent accurate response to changing cabinet temperature.

Why does my Beverage-Air refrigerator cycle too frequently?

Frequent cycling can result from thermostat problems, sensing issues, airflow conditions, dirty condenser surfaces, electrical problems, refrigeration-system conditions, or other equipment faults. The complete system should be evaluated.

How do I confirm Beverage-Air 502-323B is the correct replacement?

Verify OEM part number 502-323B, the complete Beverage-Air equipment model and serial number, and compare the original thermostat, terminal arrangement, mounting configuration, and sensing system before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.
