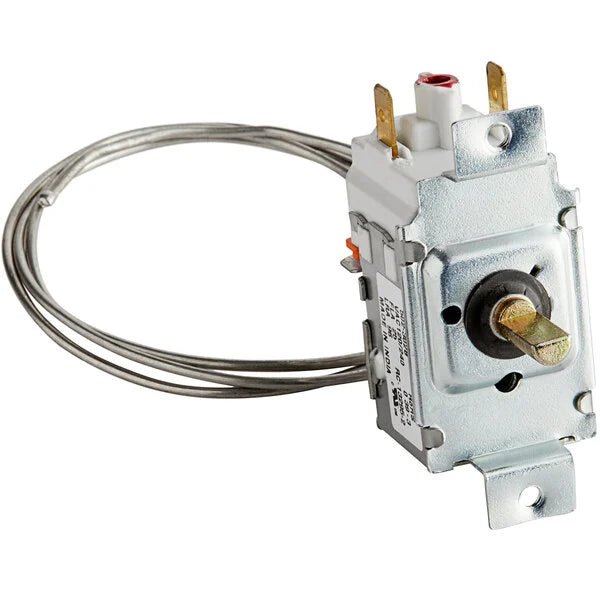

Beverage-Air 502-302B Temperature Control Thermostat

Beverage-Air 502-302B OEM Temperature Control Thermostat

The Beverage-Air 502-302B Temperature Control Thermostat is an OEM temperature-control component designed for compatible Beverage-Air commercial refrigeration equipment. The thermostat works within the refrigeration control circuit to respond to changing cabinet temperature and control the applicable refrigeration circuit according to the equipment's operating requirements.

Reliable thermostat operation is essential for maintaining consistent product temperatures and dependable commercial refrigeration performance. A thermostat that is no longer responding correctly can contribute to warm cabinet temperatures, excessive cooling, abnormal cycling, long compressor run times, or equipment that fails to respond correctly to changing temperature conditions.

When qualified diagnosis confirms thermostat failure, replacing the original component with the correct Beverage-Air OEM 502-302B helps restore the temperature-control configuration intended for compatible equipment.

OEM Part Details

• Manufacturer: Beverage-Air
• OEM Part Number: 502-302B
• MPN: 502-302B
• Part Type: Temperature Control Thermostat
• Application: Commercial Refrigeration Equipment
• Function: Cabinet Temperature Control

What the Beverage-Air 502-302B Thermostat Does

The Beverage-Air 502-302B thermostat is part of the cabinet temperature-control system. It responds to temperature at its sensing element and changes the state of the connected control circuit as required by the equipment.

Proper thermostat operation helps support:

• Consistent refrigerated cabinet temperatures
• Proper refrigeration cycling
• Reliable response to temperature changes
• Normal compressor cycling
• Temperature recovery after door openings
• Reduced excessive temperature swings
• Dependable commercial refrigeration operation

Compatible Beverage-Air Models

The Beverage-Air 502-302B OEM Temperature Control Thermostat is listed for compatible Beverage-Air commercial refrigeration equipment including:

• MT27
• UCR-27A-23
• UCR27
• UCR48A
• UF-27
• UR-27
• UR-27-SBS
• UR-27-SST
• UR-48
• URD-27-SBS
• URD-27-SST
• V-SERIES
• VPT-46-NS
• VPT-88-NS
• VPT-119
• VPT-119-NS
• VPT-46
• VPT-65
• VPT-65-NS
• VPT-88
• VUR5-24BT
• WTR27A
• WTR60

Compatibility Note: Beverage-Air equipment can vary by serial number, production date, voltage, refrigeration configuration, and factory revision. Always verify OEM part number 502-302B, the complete equipment model and serial number, and the original thermostat before ordering.

Common Signs of a Failing Temperature Control Thermostat

Qualified commercial refrigeration technicians may inspect the Beverage-Air 502-302B when troubleshooting conditions such as:

• Cabinet temperature runs warmer than normal
• Cabinet becomes colder than intended
• Compressor does not cycle off as expected
• Compressor does not start when cabinet temperature rises
• Refrigeration cycles too frequently
• Long compressor run times
• Large cabinet-temperature swings
• Intermittent refrigeration operation
• Temperature adjustment produces little or no response
• Thermostat operates inconsistently
• Damaged sensing bulb or capillary
• Loose or damaged thermostat terminals
• Burned or overheated electrical connections

These symptoms do not automatically confirm thermostat failure. Refrigerant-system problems, compressor issues, relays, wiring, evaporator fans, condenser problems, airflow restrictions, door gaskets, defrost components, and other refrigeration controls can produce similar symptoms. Proper diagnosis should be completed before replacing the thermostat.

Sensing Bulb & Capillary Inspection

The sensing system is critical to the operation of a mechanical refrigeration thermostat. The thermostat depends on its sensing element to respond accurately to changing temperature conditions.

Technicians should inspect for:

• Kinked capillary tubing
• Crushed or flattened capillary sections
• Sharp bends
• Damaged sensing bulb
• Incorrect sensing-bulb placement
• Loose sensing-bulb mounting
• Physical damage from previous service
• Capillary routing that differs from the original installation

A damaged capillary or sensing assembly can affect thermostat response. The sensing system should not be cut, crushed, sharply bent, kinked, or otherwise modified.

Technician Checks Before Ordering

Before replacing the Beverage-Air 502-302B thermostat, qualified commercial refrigeration technicians should verify:

• OEM part number 502-302B
• Complete Beverage-Air equipment model
• Equipment serial number
• Original thermostat identification
• Equipment supply voltage where applicable
• Thermostat terminal arrangement
• Mounting configuration
• Sensing-bulb condition
• Capillary condition and routing
• Associated wiring and connectors
• Compressor-control circuit operation
• Relay operation where applicable
• Refrigeration-system condition
• Signs of overheated or damaged terminals

OEM part-number verification should be the primary method of selecting the replacement. Commercial refrigeration thermostats that look similar can have different temperature ranges, electrical ratings, capillary lengths, sensing configurations, terminal arrangements, and equipment applications.

Diagnosing a Warm Cabinet

A Beverage-Air refrigerator that is running warm does not automatically have a failed 502-302B thermostat. Before condemning the thermostat, technicians should evaluate the complete refrigeration system.

Depending on the equipment configuration, diagnosis may include checking:

• Actual cabinet temperature
• Thermostat response
• Compressor operation
• Evaporator fan operation
• Condenser condition
• Refrigerant-system performance
• Evaporator frost pattern
• Door gasket condition
• Cabinet airflow
• Electrical wiring and connections
• Defrost operation where applicable

Testing the complete refrigeration system helps prevent unnecessary thermostat replacement when another component is responsible for the temperature problem.

Diagnosing a Cabinet That Runs Too Cold

A thermostat that does not interrupt the refrigeration control circuit correctly can contribute to excessive cooling. However, technicians should verify the thermostat and associated controls before replacing components.

Possible areas to inspect include:

• Thermostat operation
• Sensing-bulb placement
• Capillary condition
• Relay or contactor operation where applicable
• Control wiring
• Actual cabinet temperature
• Equipment control settings

Correct diagnosis is especially important because a refrigeration system that runs continuously can have causes unrelated to the thermostat.

Commercial Refrigeration Applications

Compatible Beverage-Air refrigeration equipment using this type of temperature control is commonly installed in demanding commercial environments including:

• Restaurants
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Universities
• Convenience stores
• Institutional kitchens
• Corporate cafeterias
• Catering facilities
• Foodservice operations

Installation & Service Notes

Disconnect electrical power and follow Beverage-Air service procedures before servicing commercial refrigeration equipment.

Before removing the original 502-302B thermostat, document the electrical connections, mounting position, capillary routing, and sensing-bulb location. Compare the replacement thermostat with the original component before installation.

Carefully route the capillary and position the sensing bulb according to the original equipment configuration. Do not sharply bend, kink, crush, cut, or otherwise damage the sensing system.

Inspect wiring, terminals, connectors, and related refrigeration controls for overheating, corrosion, looseness, or other damage before installing the replacement.

After installation, operate the equipment through an appropriate refrigeration cycle. Verify normal compressor cycling, temperature response, cabinet pull-down, and final operating temperature.

Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.

Why Correct OEM Thermostat Identification Matters

Commercial refrigeration thermostats can appear nearly identical while having different temperature ranges, electrical ratings, capillary lengths, sensing-bulb configurations, terminal layouts, and equipment applications.

Using Beverage-Air OEM part number 502-302B as the primary identification reference helps technicians and purchasing departments select the correct replacement rather than relying solely on physical appearance.

Always verify the complete equipment model, serial number, original thermostat, and applicable equipment information before ordering.

Frequently Asked Questions

What is the Beverage-Air 502-302B?

The Beverage-Air 502-302B is an OEM temperature-control thermostat used in compatible Beverage-Air commercial refrigeration equipment.

Which Beverage-Air models use the 502-302B thermostat?

The 502-302B is listed for compatible MT27, UCR-27A-23, UCR27, UCR48A, UF-27, UR-27, UR-27-SBS, UR-27-SST, UR-48, URD-27-SBS, URD-27-SST, V-Series, VPT-46-NS, VPT-88-NS, VPT-119, VPT-119-NS, VPT-46, VPT-65, VPT-65-NS, VPT-88, VUR5-24BT, WTR27A, and WTR60 equipment.

Does Beverage-Air 502-302B fit UCR equipment?

It is listed for compatible UCR-27A-23, UCR27, and UCR48A equipment. Verify the complete model, serial number, and original thermostat before ordering.

Does 502-302B fit Beverage-Air UR equipment?

It is listed for compatible UR-27, UR-27-SBS, UR-27-SST, and UR-48 equipment, as well as related URD-27-SBS and URD-27-SST configurations.

Does Beverage-Air 502-302B fit VPT equipment?

It is listed for compatible VPT-46, VPT-46-NS, VPT-65, VPT-65-NS, VPT-88, VPT-88-NS, VPT-119, and VPT-119-NS equipment.

Does Beverage-Air 502-302B fit WTR equipment?

It is listed for compatible WTR27A and WTR60 equipment. Verify the serial number and original temperature control before replacement.

Can a bad thermostat cause a Beverage-Air refrigerator to run warm?

Yes. A thermostat that does not properly call for refrigeration can contribute to elevated cabinet temperature. Refrigeration-system operation, airflow, fans, compressor performance, and other controls should also be inspected.

Can a bad thermostat cause the refrigerator to run continuously?

A thermostat that does not interrupt the control circuit correctly can contribute to continuous refrigeration operation, but other refrigeration and electrical problems can produce the same symptom.

Can a damaged capillary affect thermostat operation?

Yes. A kinked, crushed, cut, or otherwise damaged capillary can prevent a mechanical thermostat from responding correctly to temperature changes.

How do I confirm Beverage-Air 502-302B is the correct replacement?

Verify OEM part number 502-302B, the complete Beverage-Air equipment model and serial number, and compare the original thermostat, terminal configuration, capillary routing, and sensing arrangement before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.
