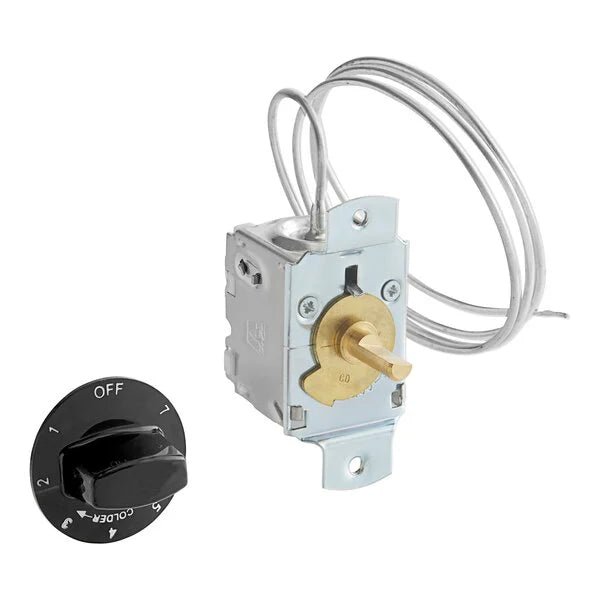

Beverage-Air 502-293B OEM Temperature Control Thermostat

Beverage-Air 502-293B OEM Temperature Control Thermostat

The Beverage-Air 502-293B Temperature Control is an OEM thermostat designed for compatible Beverage-Air commercial refrigeration and beverage equipment. The control responds to temperature conditions at its sensing location and cycles the applicable refrigeration control circuit to help maintain the cabinet temperature required for normal equipment operation.

Reliable temperature control is essential in commercial refrigeration. A thermostat that is no longer sensing or switching correctly can contribute to warm cabinet temperatures, excessive cooling, abnormal compressor cycling, extended run times, or equipment that does not respond correctly as cabinet temperature changes.

When qualified diagnosis confirms temperature-control failure, replacing the original component with the correct Beverage-Air OEM 502-293B helps restore the factory temperature-control configuration intended for compatible equipment.

OEM Part Details & Specifications

• Manufacturer: Beverage-Air
• OEM Part Number: 502-293B
• MPN: 502-293B
• Part Type: Temperature Control / Thermostat
• Mount Type: C/K Mount
• Application: Commercial Refrigeration & Beverage Equipment
• Function: Cabinet Temperature Regulation

What the Beverage-Air 502-293B Temperature Control Does

The Beverage-Air 502-293B thermostat operates within the equipment's temperature-control circuit. As conditions change at the thermostat's sensing location, the control responds by changing the state of the connected refrigeration circuit according to the equipment's operating requirements.

Proper temperature-control operation helps support:

• Consistent refrigerated cabinet temperatures
• Proper refrigeration cycling
• Reliable response to temperature changes
• Normal compressor cycling
• Temperature recovery after door openings
• Reduced excessive temperature swings
• Dependable commercial refrigeration performance

Compatible Beverage-Air Models

The Beverage-Air 502-293B OEM Temperature Control is listed for compatible Beverage-Air commercial refrigeration equipment including:

• CRG24
• CRG36
• CRG48
• CRG481
• CRG74
• DD72Y1B
• KR24
• KR241AS
• KR36
• KR361AS
• KR481AS
• KR741AS
• MT10
• MT12
• MT14
• MT19
• MT27

Compatibility Note: Beverage-Air equipment can vary by serial number, production date, voltage, refrigeration configuration, and factory revision. Always verify OEM part number 502-293B, the complete equipment model and serial number, C/K mounting configuration, and the original temperature control before ordering.

Common Signs of a Failing Temperature Control

Qualified commercial refrigeration technicians may inspect the Beverage-Air 502-293B when troubleshooting conditions such as:

• Cabinet temperature runs warmer than intended
• Cabinet becomes colder than the desired operating temperature
• Compressor does not cycle off normally
• Compressor does not start when cabinet temperature rises
• Refrigeration cycles too frequently
• Long compressor run times
• Large temperature fluctuations
• Intermittent refrigeration operation
• Temperature adjustment produces little or no response
• Thermostat operates inconsistently
• Damaged sensing bulb or capillary where applicable
• Loose or damaged thermostat terminals
• Burned or overheated electrical connections

These symptoms do not automatically confirm thermostat failure. Refrigerant-system problems, compressor issues, relays, wiring, evaporator fans, condenser restrictions, airflow problems, door gaskets, and other refrigeration components can create similar symptoms. Proper diagnosis should be completed before replacing the control.

Sensing System Inspection

The sensing system is critical to proper mechanical temperature-control operation. The thermostat must receive an accurate temperature response from its sensing component in order to cycle the refrigeration system correctly.

Technicians should inspect for:

• Kinked capillary tubing where applicable
• Crushed or flattened capillary sections
• Sharp bends
• Damaged sensing bulb
• Incorrect sensing-component placement
• Loose sensing-component mounting
• Damage caused during previous service
• Routing that differs from the original installation

A damaged sensing assembly can affect thermostat response. Capillary tubing and sensing components should not be cut, crushed, sharply bent, kinked, or otherwise modified.

Technician Checks Before Ordering

Before replacing the Beverage-Air 502-293B temperature control, qualified commercial refrigeration technicians should verify:

• OEM part number 502-293B
• Complete Beverage-Air equipment model
• Equipment serial number
• Original thermostat identification
• C/K mounting configuration
• Equipment supply voltage where applicable
• Thermostat terminal arrangement
• Mounting configuration
• Sensing-system condition
• Capillary routing where applicable
• Associated wiring and connectors
• Compressor-control circuit operation
• Relay operation where applicable
• Refrigeration-system condition
• Signs of overheated or damaged terminals

OEM part-number verification should be the primary method of selecting the replacement. Commercial refrigeration temperature controls that look similar can have different temperature ranges, electrical ratings, mounting arrangements, sensing configurations, capillary lengths, terminal layouts, and equipment applications.

Diagnosing a Warm Refrigerated Cabinet

A Beverage-Air cabinet that is running warm does not automatically have a failed 502-293B temperature control. The thermostat should be evaluated as part of the complete refrigeration system.

Depending on the equipment configuration, technicians may need to inspect:

• Actual cabinet temperature
• Thermostat response
• Compressor operation
• Evaporator fan operation
• Condenser condition and airflow
• Refrigerant-system performance
• Evaporator frost pattern
• Door gasket condition
• Cabinet airflow
• Electrical wiring and connections

Testing the complete refrigeration system helps prevent unnecessary thermostat replacement when another component or system condition is responsible for the temperature problem.

Diagnosing a Cabinet That Runs Too Cold

A temperature control that does not interrupt the refrigeration circuit correctly can contribute to excessive cooling or unusually long compressor operation. However, other electrical and refrigeration conditions can create similar symptoms.

Technicians may need to evaluate:

• Thermostat operation
• Sensing-component placement
• Capillary condition where applicable
• Control wiring
• Relay operation where applicable
• Actual cabinet temperature
• Equipment control setting

Correct diagnosis helps determine whether the 502-293B itself has failed or whether another component is keeping the refrigeration system operating longer than intended.

Commercial Refrigeration Applications

Compatible Beverage-Air equipment using the 502-293B temperature control is commonly installed in demanding commercial environments including:

• Restaurants
• Commercial kitchens
• Bars and beverage-service operations
• Hotels
• Schools
• Hospitals
• Universities
• Convenience stores
• Institutional kitchens
• Corporate cafeterias
• Catering facilities
• Foodservice operations

Installation & Service Notes

Disconnect electrical power and follow Beverage-Air service procedures before servicing commercial refrigeration equipment.

Before removing the original 502-293B control, document the electrical connections, mounting position, sensing-system routing, and sensing location. Compare the replacement thermostat with the original component before installation.

Install the replacement using the correct C/K mounting arrangement. Carefully route the sensing assembly according to the original equipment configuration. Do not sharply bend, kink, crush, cut, or otherwise damage the sensing system.

Inspect wiring, terminals, connectors, and associated refrigeration controls for overheating, corrosion, looseness, or other damage before installing the replacement.

After installation, operate the equipment through an appropriate refrigeration cycle and verify normal compressor cycling, temperature response, cabinet pull-down, and final operating temperature.

Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.

Why Correct OEM Temperature Control Identification Matters

Commercial refrigeration thermostats can appear nearly identical while having different temperature ranges, electrical ratings, mounting configurations, capillary lengths, sensing arrangements, terminal layouts, and equipment applications.

Using Beverage-Air OEM part number 502-293B together with the identified C/K mount provides technicians and purchasing departments with important identification points when comparing the replacement with the original control.

Always verify the complete equipment model, serial number, original thermostat, mounting arrangement, and applicable Beverage-Air equipment information before ordering.

Frequently Asked Questions

What is the Beverage-Air 502-293B?

The Beverage-Air 502-293B is an OEM temperature control thermostat used in compatible Beverage-Air commercial refrigeration and beverage equipment.

What mount type does the Beverage-Air 502-293B use?

The 502-293B is identified with a C/K mount. Compare the mounting configuration with the original control before ordering.

Which Beverage-Air models use the 502-293B temperature control?

The 502-293B is listed for compatible CRG24, CRG36, CRG48, CRG481, CRG74, DD72Y1B, KR24, KR241AS, KR36, KR361AS, KR481AS, KR741AS, MT10, MT12, MT14, MT19, and MT27 equipment.

Does Beverage-Air 502-293B fit CRG equipment?

It is listed for compatible CRG24, CRG36, CRG48, CRG481, and CRG74 equipment. Verify the complete model, serial number, and original temperature control before ordering.

Does 502-293B fit Beverage-Air KR equipment?

It is listed for compatible KR24, KR241AS, KR36, KR361AS, KR481AS, and KR741AS equipment. Confirm the equipment identification and original thermostat before replacement.

Does Beverage-Air 502-293B fit MT equipment?

It is listed for compatible MT10, MT12, MT14, MT19, and MT27 equipment. Verify the complete model and serial number before ordering.

Can a bad 502-293B cause a refrigerator to run warm?

Yes. A temperature control that does not properly call for refrigeration can contribute to elevated cabinet temperature. Compressor operation, airflow, fans, refrigerant-system performance, and other controls should also be inspected.

Can a failed thermostat cause the compressor to run continuously?

A thermostat that does not interrupt the refrigeration control circuit correctly can contribute to continuous operation, but other refrigeration and electrical problems can produce the same symptom.

Can a damaged capillary affect temperature control?

Yes. Where a capillary sensing system is used, kinking, crushing, cutting, or other physical damage can prevent the thermostat from responding correctly to temperature changes.

Why does my Beverage-Air refrigerator cycle too frequently?

Frequent cycling can result from temperature-control problems, sensing issues, airflow conditions, condenser restrictions, electrical problems, refrigeration-system conditions, or other equipment faults. The complete system should be evaluated.

How do I confirm Beverage-Air 502-293B is the correct replacement?

Verify OEM part number 502-293B, the complete Beverage-Air equipment model and serial number, C/K mount, and compare the original thermostat's terminals, mounting configuration, and sensing arrangement before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.
