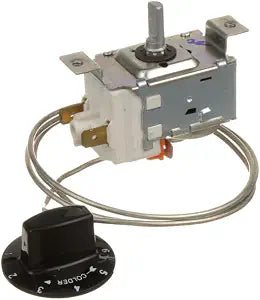

Beverage-Air 502-289B OEM Temperature Control 120/240V

Beverage-Air 502-289B OEM Temperature Control – 120/240V

The Beverage-Air 502-289B Temperature Control is an OEM refrigeration thermostat designed for compatible Beverage-Air commercial refrigeration equipment. Rated for 120/240V applications, this control responds to cabinet temperature through its sensing system and switches the applicable refrigeration control circuit to help maintain the equipment's intended operating temperature.

Reliable temperature control is essential for commercial refrigeration performance. A control that no longer senses or switches correctly can contribute to warm cabinet temperatures, excessive cooling, abnormal compressor cycling, extended run times, short cycling, or equipment that does not respond correctly to temperature adjustments.

When qualified diagnosis confirms temperature-control failure, replacing the original component with the correct Beverage-Air OEM 502-289B helps restore the temperature-control configuration intended for compatible equipment.

OEM Part Details & Specifications

• Manufacturer: Beverage-Air
• OEM Part Number: 502-289B
• MPN: 502-289B
• Part Type: Temperature Control / Thermostat
• Electrical Rating: 120/240V
• Application: Commercial Refrigeration Equipment
• Function: Cabinet Temperature Regulation

What the Beverage-Air 502-289B Temperature Control Does

The Beverage-Air 502-289B thermostat operates within the refrigeration equipment's temperature-control circuit. As cabinet temperature changes, the control responds through its sensing system and changes the state of the connected refrigeration circuit according to the equipment's operating requirements.

Proper temperature-control operation helps support:

• Consistent refrigerated cabinet temperatures
• Proper refrigeration cycling
• Reliable response to temperature changes
• Normal compressor cycling
• Temperature recovery after door openings
• Reduced excessive temperature fluctuations
• Dependable commercial refrigeration performance

Compatible Beverage-Air Models

The Beverage-Air 502-289B OEM Temperature Control is listed for compatible Beverage-Air commercial refrigeration equipment including:

BB36G1B, BB48G, BB48Y1B, BB58, BB58E, BB58G, BB58R, BB68, BB691S, BB72, BB72G, BB78, BB78Y1B, BB78E, BB78EB, BB78G1, BB78R, BB94, BB94G, BB94G1B, BM23B, BM23B28, CRG741, DD50, DD501B, DD50C, DD58, DD581, DD581B, DD58C, DD58E, DD58R, DD68, DD681, DD681B, DD68C, DD68C1, DD72Y1B, DD78, DD781, DD781B, DD78E, DD78R, DD94, DD941, DD941B, DW49, DW49B, DW49S, DW64B, DW94, DW94B, FC49GE, LV171BLED, LV381B, LV451B, LV491B, LV491BLED, LV721BTG, LV72Y1B, MM27, MS58, MS68, MT15, MT19, MT19S, MT21, MT22, MT23, MT27, MT33, MT38, MT38B55, MT45, MT45B, MT45B55, MT49, MT49B55, MT72, MT72B55, QM20, RI18HS26, RID18HGS, SF64, SLM48, SLM48B, WTRCS1121

Compatibility Note: Beverage-Air equipment can vary by serial number, production date, voltage, refrigeration configuration, sensing arrangement, and factory revision. Always verify OEM part number 502-289B, the complete equipment model and serial number, 120/240V electrical requirements, and the original temperature control before ordering.

Common Signs of a Failing Temperature Control

Qualified commercial refrigeration technicians may inspect the Beverage-Air 502-289B when troubleshooting conditions such as:

• Cabinet temperature runs warmer than intended
• Cabinet becomes excessively cold
• Compressor does not cycle off normally
• Compressor does not start when cabinet temperature rises
• Refrigeration cycles too frequently
• Equipment short cycles
• Compressor runs for unusually long periods
• Large cabinet-temperature fluctuations
• Temperature adjustment produces little or no response
• Intermittent refrigeration operation
• Thermostat operates inconsistently
• Damaged sensing bulb or capillary where applicable
• Loose or damaged thermostat terminals
• Burned or overheated electrical connections

These symptoms do not automatically confirm temperature-control failure. Refrigerant-system problems, compressor issues, relays, wiring, evaporator fans, condenser restrictions, airflow problems, door gaskets, and other refrigeration components can produce similar symptoms. Proper diagnosis should be completed before replacing the control.

Sensing Bulb & Capillary Inspection

The sensing system is critical to proper thermostat operation. The control depends on its sensing element to respond correctly as cabinet conditions change.

Technicians should inspect for:

• Kinked capillary tubing where applicable
• Crushed or flattened capillary sections
• Sharp bends
• Damaged sensing bulb
• Incorrect sensing-bulb placement
• Loose sensing-component mounting
• Physical damage from previous service
• Capillary routing that differs from the original installation

A damaged sensing assembly can affect thermostat response. The sensing bulb and capillary should not be cut, crushed, sharply bent, kinked, or otherwise modified.

Technician Checks Before Ordering

Before replacing the Beverage-Air 502-289B temperature control, qualified commercial refrigeration technicians should verify:

• OEM part number 502-289B
• Complete Beverage-Air equipment model
• Equipment serial number
• Original temperature-control identification
• 120/240V electrical rating
• Thermostat terminal arrangement
• Mounting configuration
• Sensing-bulb condition where applicable
• Capillary condition and routing where applicable
• Associated wiring and connectors
• Compressor-control circuit operation
• Relay operation where applicable
• Refrigeration-system condition
• Signs of overheated or damaged terminals

OEM part-number and voltage verification should be the primary methods of selecting the replacement. Commercial refrigeration temperature controls that appear similar can have different temperature ranges, electrical ratings, capillary lengths, sensing configurations, terminal arrangements, and equipment applications.

Diagnosing a Warm Refrigerated Cabinet

A Beverage-Air cabinet that is running warm does not automatically have a failed 502-289B temperature control. The thermostat should be evaluated as part of the complete refrigeration system.

Depending on the equipment configuration, technicians may need to inspect:

• Actual cabinet temperature
• Thermostat response
• Compressor operation
• Evaporator fan operation
• Condenser cleanliness and airflow
• Refrigerant-system performance
• Evaporator frost pattern
• Door gasket condition
• Cabinet airflow
• Electrical wiring and connections

Testing the complete refrigeration system helps prevent unnecessary thermostat replacement when another component or system condition is responsible for the temperature problem.

Diagnosing a Cabinet That Runs Too Cold

A temperature control that does not interrupt the refrigeration circuit correctly can contribute to excessive cooling or unusually long compressor operation. Other electrical and refrigeration conditions can create similar symptoms.

Technicians may need to evaluate:

• Thermostat operation
• Sensing-bulb placement
• Capillary condition where applicable
• Control wiring
• Relay operation where applicable
• Actual cabinet temperature
• Equipment control setting

Proper diagnosis helps determine whether the 502-289B itself has failed or whether another component is keeping the refrigeration system operating longer than intended.

Diagnosing Short Cycling

Short cycling occurs when the refrigeration system starts and stops more frequently than expected. A temperature-control problem can contribute to this condition, but it is only one possible cause.

Technicians should consider:

• Temperature-control operation
• Sensing-bulb placement
• Loose electrical connections
• Relay or contactor condition where applicable
• Compressor overload operation
• Condenser airflow
• Refrigerant-system conditions
• Cabinet load and airflow

Identifying the actual cause of short cycling helps avoid replacing a functional thermostat unnecessarily.

Why the 120/240V Rating Matters

The Beverage-Air 502-289B is identified as a 120/240V temperature control. Electrical rating is an important part of replacement-component identification.

Do not select another thermostat solely because it has a similar housing, knob, capillary, or terminal arrangement. Verify the OEM number, voltage requirements, sensing configuration, mounting arrangement, and original electrical connections before installation.

Commercial Refrigeration Applications

Compatible Beverage-Air equipment using the 502-289B temperature control is commonly installed in demanding commercial environments including:

• Restaurants
• Commercial kitchens
• Bars and beverage-service operations
• Hotels
• Schools
• Hospitals
• Universities
• Convenience stores
• Institutional kitchens
• Corporate cafeterias
• Catering facilities
• Foodservice operations

Installation & Service Notes

Disconnect electrical power and follow Beverage-Air service procedures before servicing commercial refrigeration equipment.

Before removing the original 502-289B temperature control, document the electrical connections, mounting position, capillary routing, and sensing-bulb location where applicable. Compare the replacement control with the original component before installation.

Carefully route the sensing assembly according to the original equipment configuration. Do not sharply bend, kink, crush, cut, or otherwise damage the sensing system.

Inspect wiring, terminals, connectors, relays, and associated refrigeration controls for overheating, corrosion, looseness, or other damage before installing the replacement.

After installation, operate the equipment through an appropriate refrigeration cycle. Verify normal compressor cycling, temperature response, cabinet pull-down, and final operating temperature.

Commercial refrigeration temperature controls should be diagnosed and installed by qualified refrigeration service personnel.

Why Correct OEM Temperature Control Identification Matters

Commercial refrigeration thermostats can look nearly identical while having different temperature ranges, electrical ratings, capillary lengths, sensing configurations, terminal layouts, mounting arrangements, and equipment applications.

Using Beverage-Air OEM part number 502-289B together with its identified 120/240V rating provides technicians and purchasing departments with important identification points when comparing the replacement with the original control.

Always verify the complete equipment model, serial number, voltage, original thermostat, sensing arrangement, and applicable Beverage-Air equipment information before ordering.

Frequently Asked Questions

What is the Beverage-Air 502-289B?

The Beverage-Air 502-289B is an OEM 120/240V temperature control used in compatible Beverage-Air commercial refrigeration equipment.

What voltage is the Beverage-Air 502-289B?

The 502-289B is identified as a 120/240V temperature control. Verify the equipment electrical requirements and original control before ordering.

Which Beverage-Air models use the 502-289B temperature control?

The 502-289B is listed for compatible Beverage-Air BB, BM, CRG, DD, DW, LV, MM, MS, MT, QM, RI, SF, SLM, WTR and related commercial refrigeration models, including the complete model list shown above.

Does Beverage-Air 502-289B fit BB-series equipment?

It is listed for numerous compatible BB-series models including BB36G1B, BB48G, BB48Y1B, BB58, BB58E, BB58G, BB58R, BB68, BB691S, BB72, BB72G, BB78, BB78Y1B, BB78E, BB78EB, BB78G1, BB78R, BB94, BB94G, and BB94G1B.

Does 502-289B fit Beverage-Air DD equipment?

It is listed for numerous compatible DD-series models including DD50, DD501B, DD50C, DD58, DD581, DD581B, DD58C, DD58E, DD58R, DD68, DD681, DD681B, DD68C, DD68C1, DD72Y1B, DD78, DD781, DD781B, DD78E, DD78R, DD94, DD941, and DD941B.

Does Beverage-Air 502-289B fit MT equipment?

It is listed for compatible MT15, MT19, MT19S, MT21, MT22, MT23, MT27, MT33, MT38, MT38B55, MT45, MT45B, MT45B55, MT49, MT49B55, MT72, and MT72B55 equipment.

Can a bad 502-289B cause a refrigerator to run warm?

Yes. A temperature control that does not properly call for refrigeration can contribute to elevated cabinet temperature. Compressor operation, airflow, fan motors, refrigeration-system performance, and other controls should also be inspected.

Can a failed temperature control cause continuous compressor operation?

A thermostat that does not interrupt the refrigeration control circuit correctly can contribute to continuous operation, but other electrical and refrigeration problems can create the same symptom.

Can a damaged capillary cause temperature-control problems?

Yes. Where a capillary sensing system is used, a kinked, crushed, cut, or otherwise damaged capillary can prevent the control from responding correctly to temperature changes.

Why does my Beverage-Air refrigerator short cycle?

Short cycling can result from temperature-control problems, sensing issues, relay or overload conditions, airflow restrictions, electrical problems, or refrigeration-system conditions. The complete system should be evaluated.

How do I confirm Beverage-Air 502-289B is the correct replacement?

Verify OEM part number 502-289B, the complete Beverage-Air equipment model and serial number, 120/240V rating, and compare the original control's terminals, mounting configuration, and sensing arrangement before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration temperature controls operate within electrical control circuits and should be diagnosed and installed by qualified refrigeration service personnel.
