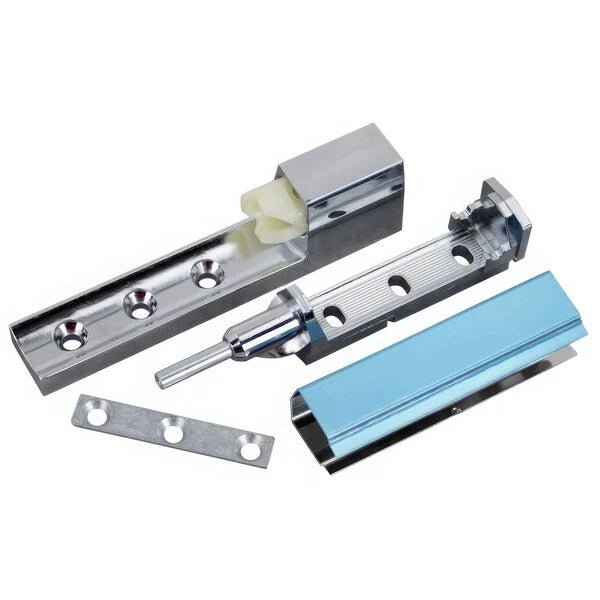

Beverage-Air 401-657B Lift-Off Hinge Assembly

Beverage-Air 401-657B OEM Lift-Off Hinge Assembly

The Beverage-Air 401-657B Lift-Off Hinge Assembly is an OEM door-support component designed for compatible Beverage-Air commercial refrigeration equipment. This hinge assembly supports the refrigerated door at its mounting point, helps maintain proper alignment, and allows the door to be removed from the cabinet when the lift-off design is used.

Proper hinge operation is important to everyday commercial refrigeration performance. A worn, bent, loose, damaged, or misaligned hinge can allow the door to sag, drag, bind, close unevenly, or fail to compress the door gasket correctly. These conditions can contribute to poor door sealing, warm-air infiltration, moisture problems, excessive refrigeration run time, and unnecessary stress on related door hardware.

When inspection confirms hinge damage or wear, replacing the original component with the correct Beverage-Air OEM 401-657B helps restore the door-support and alignment configuration intended for compatible Beverage-Air equipment.

OEM Part Details

• Manufacturer: Beverage-Air
• OEM Part Number: 401-657B
• MPN: 401-657B
• Part Type: Lift-Off Hinge Assembly
• Application: Commercial Refrigeration Equipment
• Function: Door Support, Alignment & Lift-Off Removal

What the Beverage-Air 401-657B Hinge Assembly Does

The Beverage-Air 401-657B hinge assembly provides the pivot and support point for the applicable refrigerated door. It helps carry door weight while maintaining the position required for smooth opening, closing, and gasket contact.

Proper hinge condition helps support:

• Smooth door opening and closing
• Correct door alignment
• Consistent gasket compression
• Reduced door sag
• Reduced binding or dragging
• Proper latch or closer engagement where applicable
• Reliable lift-off door removal where designed
• Dependable commercial refrigeration operation

Compatible Beverage-Air Models

The Beverage-Air 401-657B OEM Lift-Off Hinge Assembly is listed for compatible Beverage-Air commercial refrigeration equipment including:

BB48G, DMC8, DP119, DP46, DP67, DP93, DPD672, DRS2DS7HD, EF241AHS, EF241AS, EF341, EF481, EF481AS, ER24, ER241, ER241AHGS, ER241AHS, ER241AS, ER48, ER481AG, ER481AS, ER741AS, ERF12121HS, HF119PETCO, HF11HS, HF11HS18, HF11HSSONIC, HF1W1S, HR11G, HR11HS, HR11HS18, HR11S18, HR21S, HR31S, HRP111HG, HRP11S, PF481AHS, PF745AS, PR24, PR481AS, PR741AS, PRF1212, PRF12121HS, PRF12121HS02, PRF2424, PR111AS, PRI21AS, PRI21ASXDX, PRI21ASXDX1, PT41, PT67, RFA2DS7, RIA1DS7, SP27, SP2712M, SP278, SP48, SP4810, SP4810C, SP4812, SP4812M, SP4816M, SP4818M, SP488C, SP60, SP6016, SP6016C, SP6018M, SP6024M, SP7218, SP7218M, SP7230, SP7230M, SUR27, SUR48, SUR4812, SUR4818M, SUR60, SUR6010, SUR6016, SUR72, SUR7218, SUR7218M, SUR7230M, UCF27, UCF27A, UCF48, UCF48A, UCR20, UCR27, UCR27A, UCR34, UCR48, UCR48A, UCR48A23, UCR60, UCR67, UCR72A, WTF27, WTF27A, WTF48, WTF48A, WTF67A, WTR119A, WTR27, WTR27A, WTR48, WTR48A, WTR67, WTR72, WTR72A, WTR93A

Compatibility Note: Beverage-Air equipment can vary by serial number, production date, door orientation, cabinet configuration, and factory revision. Always verify OEM part number 401-657B, the complete equipment model and serial number, original hinge position, and mounting arrangement before ordering.

Common Signs of a Worn or Damaged Hinge

Commercial refrigeration technicians may inspect the Beverage-Air 401-657B when troubleshooting conditions such as:

• Door sags when opened
• Door drags against the cabinet
• Door does not close squarely
• Door binds during opening or closing
• Hinge feels loose or unstable
• Visible hinge wear
• Bent or distorted hinge components
• Loose mounting hardware
• Excessive play at the hinge point
• Door gasket does not compress evenly
• Door will not engage the latch correctly
• Door closer does not operate normally
• Repeated door alignment is required

These symptoms do not automatically confirm hinge failure. Door alignment, latch condition, closer condition, gasket condition, mounting hardware, cabinet damage, or a damaged door can create similar symptoms. The complete door assembly should be inspected before replacing components.

Why Door Alignment Matters

A properly aligned commercial refrigeration door helps maintain even contact between the gasket and the cabinet sealing surface. A worn hinge can allow the door to shift enough that the gasket no longer seals consistently around the entire perimeter.

Poor alignment can contribute to:

• Warm-air infiltration
• Condensation around the door opening
• Frost or ice buildup
• Longer compressor run times
• Uneven gasket wear
• Latch alignment problems
• Excessive stress on door closers
• Repeated hinge and hardware wear

Correcting the hinge and alignment problem can help restore proper closure when the door and cabinet are otherwise in serviceable condition.

Inspect Related Door Hardware

When replacing the Beverage-Air 401-657B, technicians should inspect the complete door-support system because another worn component can contribute to hinge damage or poor door operation.

Related components may include:

• Opposite-side hinge hardware
• Hinge pins
• Door closer
• Door latch
• Strike
• Door gasket
• Mounting screws and fasteners
• Door frame
• Cabinet mounting surface

Correcting related door-hardware problems at the same time can help prevent repeated adjustment and premature wear of the replacement hinge.

Technician Checks Before Ordering

Before replacing the Beverage-Air 401-657B lift-off hinge assembly, verify:

• OEM part number 401-657B
• Complete Beverage-Air equipment model
• Equipment serial number
• Original hinge position
• Door orientation
• Hinge mounting arrangement
• Hinge-pin condition
• Door alignment
• Gasket condition
• Latch and strike alignment
• Closer condition where applicable
• Mounting hardware condition
• Cabinet mounting surface

OEM part-number verification should be the primary method of selecting the replacement. Commercial refrigeration hinges can look similar while having different lengths, mounting-hole patterns, offsets, lift-off arrangements, door orientations, and equipment applications.

Check the Door Gasket at the Same Time

A sagging or misaligned door can create uneven wear on the door gasket. When hinge service is required, inspect the gasket around the complete perimeter for:

• Flattened sections
• Torn corners
• Cracks or splits
• Areas that do not contact the cabinet
• Damage caused by the door dragging
• Distortion from prolonged misalignment

If the gasket has been permanently damaged by poor door alignment, replacing the hinge alone may not fully restore the door seal.

Installation & Service Notes

Follow Beverage-Air service procedures before working on commercial refrigeration door hardware. Support the door securely before removing hinge components because commercial refrigeration doors can be heavy.

Before removing the original 401-657B hinge, document its mounting position, orientation, door relationship, and hardware arrangement. Compare the replacement hinge with the original component before installation.

Inspect the mounting surface and fasteners for damage or looseness. Install the replacement hinge securely and verify that the door opens and closes without binding or excessive play.

After installation, check:

• Door alignment
• Door height
• Gasket compression
• Latch engagement
• Closer operation where applicable
• Smooth opening and closing
• Lift-off function where applicable

Open and close the door several times and confirm that it returns to the correct position consistently.

Commercial Refrigeration Applications

Compatible Beverage-Air equipment using the 401-657B hinge assembly is commonly installed in demanding commercial environments including:

• Restaurants
• Commercial kitchens
• Bars and beverage-service operations
• Hotels
• Schools
• Hospitals
• Universities
• Convenience stores
• Institutional kitchens
• Corporate cafeterias
• Catering facilities
• Foodservice operations

Why Correct OEM Hinge Identification Matters

Commercial refrigeration hinges can appear nearly identical while having different mounting patterns, offsets, lengths, lift-off arrangements, door orientations, and load requirements.

Using Beverage-Air OEM part number 401-657B as the primary identification reference helps technicians and purchasing departments select the correct replacement rather than relying solely on physical appearance.

Always verify the complete equipment model, serial number, original hinge, door orientation, and mounting arrangement before ordering.

Frequently Asked Questions

What is the Beverage-Air 401-657B?

The Beverage-Air 401-657B is an OEM lift-off hinge assembly used to support and align doors on compatible Beverage-Air commercial refrigeration equipment.

What does a lift-off hinge do?

A lift-off hinge supports the door during normal operation while allowing the door to be lifted away from the hinge arrangement when the equipment design permits removal.

Which Beverage-Air models use the 401-657B hinge?

The 401-657B is listed for a large range of compatible Beverage-Air EF, ER, HF, HR, PF, PR, PRI, SP, SUR, UCF, UCR, WTF, WTR and other commercial refrigeration models, including the complete model list shown above.

Does Beverage-Air 401-657B fit SP-series equipment?

It is listed for numerous compatible SP configurations including SP27, SP2712M, SP278, SP48, SP4810, SP4810C, SP4812, SP4812M, SP4816M, SP4818M, SP488C, SP60, SP6016, SP6016C, SP6018M, SP6024M, SP7218, SP7218M, SP7230, and SP7230M.

Does 401-657B fit Beverage-Air UCR equipment?

It is listed for compatible UCR20, UCR27, UCR27A, UCR34, UCR48, UCR48A, UCR48A23, UCR60, UCR67, and UCR72A equipment. Verify the complete model and serial number before ordering.

Does Beverage-Air 401-657B fit WTR equipment?

It is listed for compatible WTR119A, WTR27, WTR27A, WTR48, WTR48A, WTR67, WTR72, WTR72A, and WTR93A equipment.

Can a worn hinge cause a refrigerator door gasket to leak?

Yes. A worn or misaligned hinge can allow the door to sag and prevent even gasket contact with the cabinet.

Why does my Beverage-Air door drag when it closes?

Possible causes include hinge wear, loose mounting hardware, door sag, cabinet damage, or another door-hardware problem. The complete door assembly should be inspected.

Should I replace the gasket when replacing the hinge?

Not automatically. Inspect the gasket for permanent deformation, tearing, or uneven wear. Replace it only if its condition prevents proper sealing after the door alignment is restored.

Can a bad hinge cause latch problems?

Yes. Door sag or misalignment can prevent the latch from engaging the strike correctly even when both latch components are otherwise serviceable.

How do I confirm Beverage-Air 401-657B is the correct replacement?

Verify OEM part number 401-657B, the complete Beverage-Air equipment model and serial number, door orientation, original hinge position, and mounting arrangement before ordering.

Is professional installation recommended?

Qualified commercial refrigeration personnel can safely support the door, verify hinge orientation and alignment, and inspect related gasket, latch, closer, and mounting components during replacement.
