Beverage-Air 302-646A OEM Compressor Relay

Beverage-Air 302-646A OEM Compressor Relay

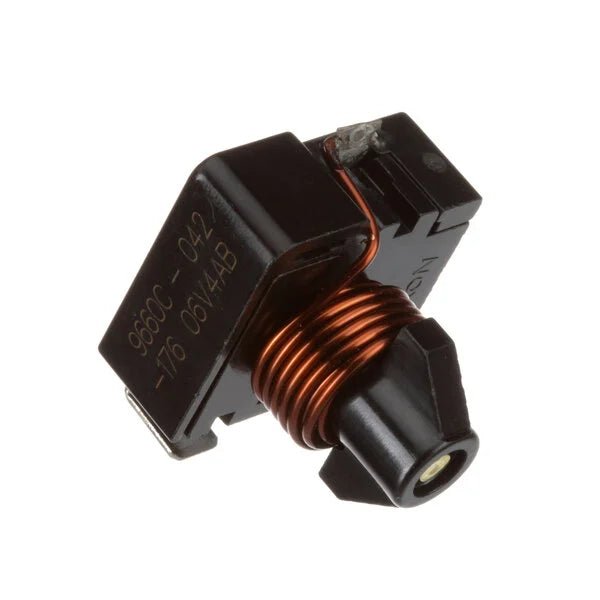

The Beverage-Air 302-646A Compressor Relay is an OEM electrical refrigeration component designed for compatible Beverage-Air commercial refrigeration equipment. The relay works within the compressor control or starting circuit to help manage electrical operation of the compressor according to the equipment's design.

Reliable compressor starting and control are critical to commercial refrigeration performance. A relay that is electrically damaged, has burned or worn contacts, fails to switch correctly, or operates intermittently can contribute to compressor starting problems, no-cooling conditions, repeated cycling, or abnormal refrigeration operation.

When qualified electrical diagnosis confirms relay failure, replacing the original component with the correct Beverage-Air OEM 302-646A helps restore the compressor-control configuration intended for compatible Beverage-Air equipment.

OEM Part Details

• Manufacturer: Beverage-Air
• OEM Part Number: 302-646A
• MPN: 302-646A
• Part Type: Compressor Relay
• Application: Commercial Refrigeration Equipment
• Function: Compressor Electrical Control / Starting Circuit

What the Beverage-Air 302-646A Compressor Relay Does

The Beverage-Air 302-646A relay operates as part of the refrigeration equipment's compressor electrical circuit. Its function is to provide the switching action required by the applicable compressor-control or starting arrangement.

Proper compressor-relay operation helps support:

• Reliable compressor startup
• Proper compressor electrical operation
• Correct response to a refrigeration call
• Consistent refrigeration cycling
• Normal cabinet temperature pull-down
• Dependable commercial refrigeration performance

Compatible Beverage-Air Models

The Beverage-Air 302-646A OEM Compressor Relay is listed for compatible Beverage-Air commercial refrigeration equipment including:

• CRG24
• EF24-1AHS-34
• ER-24-1AS
• ER24
• ER24-1AHS-34
• KR24
• MT18
• MT19
• PR24
• PRD24
• PRF24-24
• PRI1
• PRT1
• RI18
• SP60
• SP72
• UCR60
• UCR72
• WTR60
• WTR60A-23
• WTR72A

Compatibility Note: Beverage-Air equipment can vary by serial number, production date, compressor, voltage, and factory electrical configuration. Always verify OEM part number 302-646A, the complete equipment model and serial number, compressor information, electrical requirements, and the original relay before ordering.

Common Signs of a Compressor Relay Problem

Qualified commercial refrigeration technicians may inspect the Beverage-Air 302-646A when troubleshooting conditions such as:

• Compressor will not start
• Compressor attempts to start but shuts off
• Repeated clicking from the compressor electrical area
• Intermittent compressor operation
• Refrigeration equipment does not cool
• Compressor does not respond to a refrigeration call
• Relay operates intermittently
• Relay contacts fail to switch correctly
• Visible heat damage to the relay
• Burned or discolored terminals
• Melted or damaged connectors
• Loose electrical connections
• Evidence of electrical arcing
• Overheated wiring near the relay

These symptoms do not automatically confirm relay failure. Start capacitors, run capacitors where applicable, overload protectors, wiring, temperature controls, supply voltage, compressor windings, and mechanical compressor problems can create similar symptoms. The complete compressor electrical circuit should be diagnosed before replacing the relay.

Diagnosing a Compressor That Will Not Start

A Beverage-Air compressor that will not start does not automatically have a failed 302-646A relay. Before condemning the relay, technicians should evaluate the complete compressor-control and starting circuit.

Depending on the equipment configuration, diagnosis may include checking:

• Incoming supply voltage
• Voltage at the compressor circuit
• Temperature-control call for refrigeration
• 302-646A relay operation
• Start capacitor where applicable
• Run capacitor where applicable
• Overload protector
• Compressor winding resistance
• Compressor terminals
• Wiring and electrical connectors
• Compressor mechanical condition

Testing the complete circuit helps prevent unnecessary relay replacement when another electrical component or the compressor itself is responsible for the no-start condition.

Inspect the Original Relay & Connections

Visual inspection can provide useful information during compressor-circuit diagnosis. Technicians should inspect the original 302-646A and surrounding electrical connections for:

• Burned terminals
• Discolored connectors
• Melted relay housing
• Heat damage
• Loose electrical connections
• Corrosion
• Damaged wiring insulation
• Evidence of electrical arcing
• Overheated compressor terminals

If significant heat or electrical damage is found, determine why it occurred before installing the replacement relay. Excessive current, a poor electrical connection, compressor problems, or another circuit fault can damage a replacement component if the underlying condition is not corrected.

Technician Checks Before Ordering

Before replacing the Beverage-Air 302-646A compressor relay, qualified commercial refrigeration technicians should verify:

• OEM part number 302-646A
• Complete Beverage-Air equipment model
• Equipment serial number
• Original relay identification
• Compressor manufacturer and model where applicable
• Equipment supply voltage
• Original relay terminal configuration
• Electrical connection arrangement
• Start capacitor where applicable
• Run capacitor where applicable
• Overload-protector configuration
• Compressor winding condition
• Associated wiring and terminals
• Signs of overheating or electrical damage

OEM part-number verification should be the primary method of selecting the replacement. Compressor relays that look similar can have different electrical characteristics, terminal arrangements, compressor applications, and operating requirements.

Compressor Relay vs. Capacitor

The compressor relay and capacitor perform different functions within a refrigeration starting circuit. The relay provides electrical switching according to the circuit design, while a capacitor stores electrical energy and may provide additional starting or running characteristics depending on the equipment configuration.

If the compressor has difficulty starting, both the relay and applicable capacitor components should be evaluated rather than replacing parts based only on symptoms.

Check the Compressor Before Installing a New Relay

A compressor with an internal electrical or mechanical problem can place abnormal stress on starting components. Before installing a replacement 302-646A, qualified technicians should verify that the compressor itself is suitable for continued operation.

Inspection and testing may include:

• Compressor winding resistance
• Short-to-ground testing
• Compressor current draw
• Terminal condition
• Overload operation
• Supply voltage during startup
• Mechanical starting condition

Installing a new relay without correcting an underlying compressor or electrical problem can result in repeated relay failure.

Commercial Refrigeration Applications

Compatible Beverage-Air equipment using the 302-646A compressor relay is commonly installed in demanding commercial environments including:

• Restaurants
• Commercial kitchens
• Bars and beverage-service operations
• Hotels
• Schools
• Hospitals
• Universities
• Convenience stores
• Institutional kitchens
• Corporate cafeterias
• Catering facilities
• Foodservice operations

Installation & Electrical Safety Notes

Disconnect electrical power before servicing commercial refrigeration equipment. Follow Beverage-Air service procedures and appropriate electrical safety practices.

Before removing the original 302-646A relay, document all wiring and terminal positions. Compare the replacement relay with the original component before transferring electrical connections.

Inspect the compressor terminals, wiring, connectors, capacitors where applicable, overload device, and surrounding electrical components for heat or physical damage before installing the replacement.

After installation, restore power and operate the equipment through an appropriate refrigeration cycle. Verify reliable compressor startup, normal refrigeration operation, and appropriate electrical performance.

Commercial refrigeration compressor electrical components should be diagnosed and installed by qualified refrigeration service personnel.

Why Correct OEM Compressor Relay Identification Matters

Commercial refrigeration compressor relays can look nearly identical while having different electrical characteristics, terminal configurations, compressor applications, and equipment compatibility.

Using Beverage-Air OEM part number 302-646A as the primary identification reference helps technicians and purchasing departments select the correct replacement rather than relying solely on physical appearance.

Always verify the complete equipment model, serial number, compressor information, original relay, and electrical configuration before ordering.

Frequently Asked Questions

What is the Beverage-Air 302-646A?

The Beverage-Air 302-646A is an OEM compressor relay used in compatible Beverage-Air commercial refrigeration equipment.

Which Beverage-Air models use the 302-646A compressor relay?

The 302-646A is listed for compatible CRG24, EF24-1AHS-34, ER-24-1AS, ER24, ER24-1AHS-34, KR24, MT18, MT19, PR24, PRD24, PRF24-24, PRI1, PRT1, RI18, SP60, SP72, UCR60, UCR72, WTR60, WTR60A-23, and WTR72A equipment.

Does Beverage-Air 302-646A fit ER24 equipment?

It is listed for compatible ER24, ER-24-1AS, and ER24-1AHS-34 equipment. Verify the complete model, serial number, compressor, and original relay before ordering.

Does 302-646A fit Beverage-Air MT18 and MT19?

It is listed for compatible MT18 and MT19 equipment. Confirm the compressor configuration and original relay before replacement.

Does Beverage-Air 302-646A fit SP60 and SP72?

It is listed for compatible SP60 and SP72 equipment. Verify the complete equipment identification before ordering.

Does 302-646A fit Beverage-Air UCR60 and UCR72?

It is listed for compatible UCR60 and UCR72 equipment. Confirm the model, serial number, compressor configuration, and original relay before replacement.

Does Beverage-Air 302-646A fit WTR equipment?

It is listed for compatible WTR60, WTR60A-23, and WTR72A equipment. Verify the original compressor relay before ordering.

Can a bad compressor relay cause a refrigerator not to cool?

Yes. If the relay prevents the compressor from starting or operating correctly, refrigeration may not occur. Other starting-circuit and compressor problems can create the same symptom.

Why does my compressor click but not start?

Repeated clicking can be associated with a relay, overload protector, capacitor, supply-voltage problem, compressor winding issue, or mechanical compressor condition. The complete starting circuit should be diagnosed.

Can a bad compressor damage the relay?

A compressor drawing abnormal current or experiencing starting problems can place additional stress on associated electrical components. Compressor condition should be evaluated when relay damage is found.

Should the capacitor be tested when replacing the compressor relay?

Yes, where the equipment uses a capacitor in the compressor circuit. Related starting components should be tested to determine whether another fault contributed to the relay failure.

How do I confirm Beverage-Air 302-646A is the correct replacement?

Verify OEM part number 302-646A, the complete Beverage-Air equipment model and serial number, compressor information, and the electrical and terminal configuration of the original relay before ordering.

Is professional installation recommended?

Yes. Compressor electrical circuits involve line voltage and should be diagnosed and serviced by qualified commercial refrigeration personnel.

Why Buy From Parts Direct Online?

Parts Direct Online supplies OEM commercial refrigeration and commercial cooking replacement parts for service technicians, contractors, restaurants, supermarkets, schools, hospitals, institutional kitchens, and foodservice facilities throughout the United States. Our focus is helping commercial equipment professionals identify the correct OEM replacement component and minimize costly equipment downtime.
