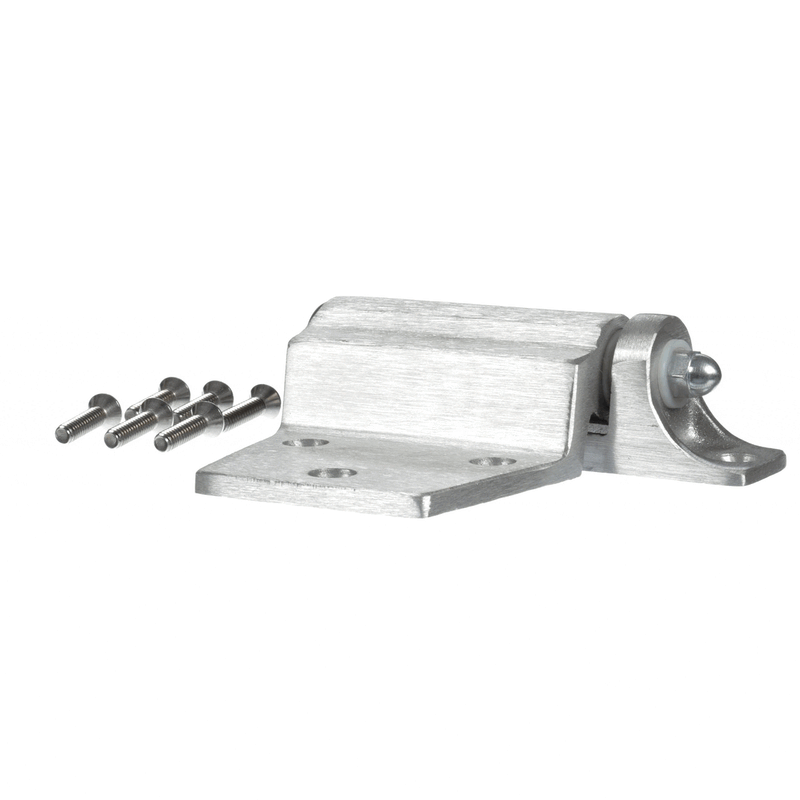

Bally 016571 Hinge, Flush Offset, Right Hand, Cam-Lift

Bally 016571 Door Hinge Component

The Bally 016571 is identified as hinge, flush offset, right hand, cam-lift. This component supports the door at the hinge position specified for this component. Match the manufacturer reference to the equipment documentation so the replacement addresses the correct assembly and operating application.

Verified part identification and specifications

Commercial application and model references

Model-specific compatibility is not established here. Match this manufacturer reference to your equipment parts diagram and confirm the serial range before ordering.

Symptoms and technician checks

Inspect this component when the equipment shows door sag, excessive pivot play or damaged hinge hardware. Check handing, offset, hinge location, pivot condition and door alignment before attributing the fault to this part. These symptoms guide diagnosis; they do not establish that replacement is necessary.

Check the full hinge assembly and the door loading. A bracket, spring cartridge and complete hinge perform different jobs and must be selected separately.

Before you order

Use manufacturer reference 016571 and compare the item identification above with the removed part. Check the model and serial label, the corresponding parts diagram and any revision or serial break. Confirm the component supplied rather than assuming related brackets, wiring or accessories are included.

Frequently asked questions

What is Bally 016571?

It is identified as hinge, flush offset, right hand, cam-lift. It supports the door at the hinge position specified for this component.

Which models are referenced for 016571?

Model-specific compatibility is not established here. Match this manufacturer reference to your equipment parts diagram and confirm the serial range before ordering.

What specifications distinguish 016571?

Handing: Right hand; Documented catalog weight: 1.135 lb.

Can this hinge component be used on either side?

Only when reversibility is expressly documented. Otherwise match handing, offset and hinge position to the original component and equipment diagram.

What should be checked before replacing 016571?

Check handing, offset, hinge location, pivot condition and door alignment. Check the full hinge assembly and the door loading. A bracket, spring cartridge and complete hinge perform different jobs and must be selected separately.

What information should I provide to confirm 016571?

Provide the equipment model and serial number, the number on the removed component and a clear photograph of its connections or mounting. Ask for confirmation of Bally 016571 against the equipment diagram.
