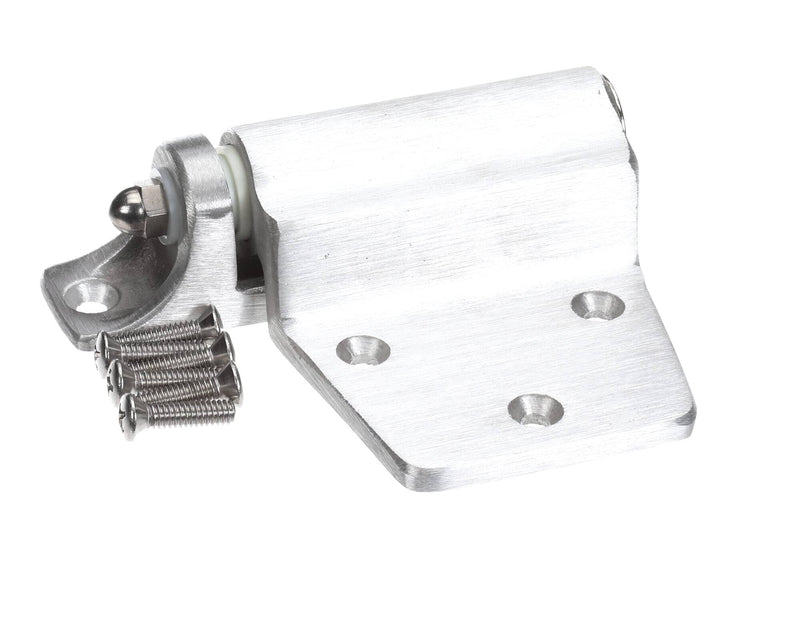

Bally 016562 Hinge, Flush Offset, Left Hand, Cam-Lift

Bally 016562 Door Hinge Component

The Bally 016562 is identified as hinge, flush offset, left hand, cam-lift. This component supports the door at the hinge position specified for this component. Match the manufacturer reference to the equipment documentation so the replacement addresses the correct assembly and operating application.

Verified part identification and specifications

Commercial application and model references

Documented equipment model references include 3678. Confirm the exact model suffix, serial range and component revision before ordering.

Symptoms and technician checks

Inspect this component when the equipment shows door sag, excessive pivot play or damaged hinge hardware. Check handing, offset, hinge location, pivot condition and door alignment before attributing the fault to this part. These symptoms guide diagnosis; they do not establish that replacement is necessary.

Check the full hinge assembly and the door loading. A bracket, spring cartridge and complete hinge perform different jobs and must be selected separately.

Before you order

Use manufacturer reference 016562 and compare the item identification above with the removed part. Check the model and serial label, the corresponding parts diagram and any revision or serial break. Confirm the component supplied rather than assuming related brackets, wiring or accessories are included.

Frequently asked questions

What is Bally 016562?

It is identified as hinge, flush offset, left hand, cam-lift. It supports the door at the hinge position specified for this component.

Which models are referenced for 016562?

Documented equipment model references include 3678. Confirm the exact model suffix, serial range and component revision before ordering.

What specifications distinguish 016562?

Handing: Left hand; Documented catalog weight: 1.67 lb.

Can this hinge component be used on either side?

Only when reversibility is expressly documented. Otherwise match handing, offset and hinge position to the original component and equipment diagram.

What should be checked before replacing 016562?

Check handing, offset, hinge location, pivot condition and door alignment. Check the full hinge assembly and the door loading. A bracket, spring cartridge and complete hinge perform different jobs and must be selected separately.

What information should I provide to confirm 016562?

Provide the equipment model and serial number, the number on the removed component and a clear photograph of its connections or mounting. Ask for confirmation of Bally 016562 against the equipment diagram.
