Avantco OEM Top Door Hinge Bracket – Left or Right

Avantco OEM Top Door Hinge Bracket – Left or Right

The Avantco Top Door Hinge Bracket is a genuine manufacturer replacement component available in separate top-left and top-right configurations for compatible Avantco commercial refrigeration equipment. These brackets support the upper portion of the refrigerator or freezer door and help maintain proper door alignment, smooth movement, and consistent gasket sealing.

Select the correct manufacturer part number based on the original door orientation:

• Top Left Hinge Bracket: 178HINGCFDTL
• Top Right Hinge Bracket: 178HINGCFDTR

A worn, bent, loose, or incorrectly selected top hinge bracket can contribute to door sag, poor gasket compression, latch misalignment, refrigerated-air leakage, frost or condensation around the opening, and unnecessary refrigeration-system load.

OEM Part Details

• Manufacturer: Avantco Refrigeration
• Top Left Part Number: 178HINGCFDTL
• Top Right Part Number: 178HINGCFDTR
• Part Type: Top Door Hinge Bracket
• Application: Commercial Refrigeration
• Configuration: Separate Left-Hand and Right-Hand Versions
• Function: Upper Door Support, Alignment & Pivot Support

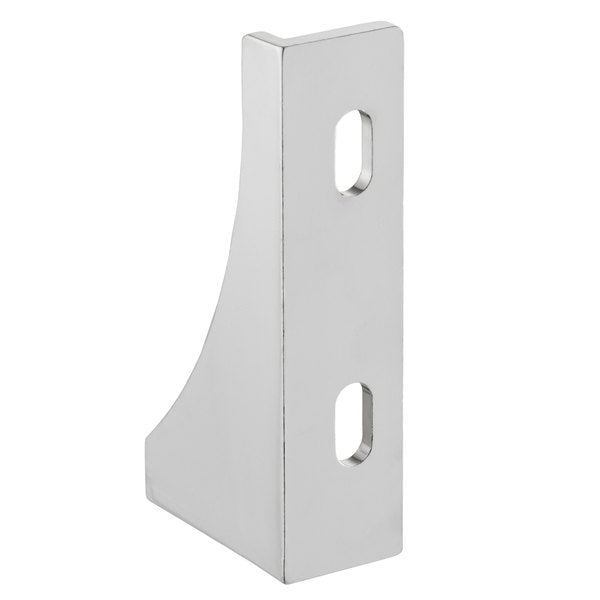

Top Left Hinge Bracket – 178HINGCFDTL

Avantco 178HINGCFDTL is the top-left hinge bracket for compatible Avantco refrigeration equipment. Avantco identifies this bracket as a direct replacement for select A, SS, and CFD Series units.

The 178HINGCFDTL is also used as part of the Avantco 178CFD1KITFR field-reversible hinge kit for compatible CFD1 refrigerators and freezers.

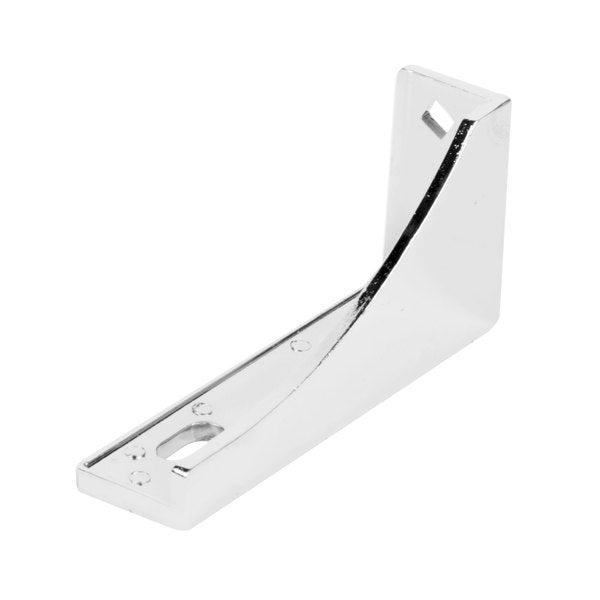

Top Right Hinge Bracket – 178HINGCFDTR

Avantco 178HINGCFDTR is the corresponding top-right hinge bracket for compatible Avantco commercial refrigeration equipment. It supports the upper right-hand door pivot location and serves as a direct replacement for the original bracket on supported equipment.

Avantco currently identifies 178HINGCFDTR for select A, SS, CFD, Z1, and Z2 refrigeration equipment. Always verify the exact equipment model and original hinge before ordering.

Verified CFD Applications

Avantco's published parts lists show 178HINGCFDTL and 178HINGCFDTR on solid-door CFD equipment including:

• CFD-1RR
• CFD-2FF
• CFD-3RR

Additional compatible A, SS, CFD, Z1, and Z2 applications may exist depending on the specific hinge side and equipment revision.

Important Fitment Note: Do not assume these hinges fit every CFD model. Some glass-door CFD equipment uses a different hinge family, including 178HNGCFDGTL and 178HNGCFDGTR. Verify whether the cabinet has solid or glass doors before ordering.

What the Top Hinge Bracket Does

The top hinge bracket supports the upper pivot point of the refrigeration door. Together with the bottom hinge or pivot, it keeps the door aligned with the cabinet opening as the door moves through its normal opening and closing cycle.

Correct hinge alignment helps support:

• Smooth refrigerator or freezer door movement
• Proper door alignment
• Consistent magnetic gasket compression
• Reliable door closure
• Correct latch and strike engagement
• Reduced refrigerated-air leakage
• Reduced frost and condensation around the opening
• Dependable commercial refrigeration operation

Common Signs of a Worn or Damaged Top Hinge

• Door sags toward the handle side
• Door does not sit square in the cabinet opening
• Door rubs or binds during operation
• Gasket compression becomes uneven
• Latch or lock no longer lines up correctly
• Bracket is bent or physically damaged
• Mounting holes or hardware become loose
• Door requires lifting before closing
• Condensation develops around one side of the door
• Frost forms around the door opening

These symptoms do not automatically confirm top-hinge failure. Bottom hinge pivots, door swing cartridges, gaskets, mounting surfaces, latches, and cabinet alignment can produce similar conditions.

Inspect the Bottom Hinge Pivot

The upper and lower hinge components work together to support the refrigeration door. When replacing the top hinge bracket, inspect the corresponding bottom hinge pivot for:

• Excessive play
• Loose mounting hardware
• Bent components
• Wear at the pivot point
• Door misalignment
• Physical damage

For applicable CFD equipment, the related bottom hinge references include:

• 178HINGCFDBL: Bottom Left Hinge Pivot
• 178HINGCFDBR: Bottom Right Hinge Pivot

Inspect the Automatic Door Swing Cartridge

Compatible Avantco reach-in doors may also use an automatic door swing cartridge. If the door does not return or close correctly, inspect the closing cartridge along with both hinge locations before assuming the top bracket is the only failed component.

Inspect the Door Gasket

A damaged or misaligned hinge can prevent the magnetic gasket from contacting the cabinet evenly.

Check for:

• Visible air gaps
• Uneven gasket compression
• Torn gasket material
• Flattened sections
• Frost around the opening
• Condensation near the door perimeter

A new hinge bracket will not correct air leakage if the gasket itself is damaged.

Left vs. Right Selection

The top-left and top-right brackets use separate manufacturer part numbers and should not be treated as one interchangeable component.

• Choose 178HINGCFDTL for the applicable top-left hinge location.
• Choose 178HINGCFDTR for the applicable top-right hinge location.

Compare the original hinge position, equipment parts diagram, door handing, and mounting pattern before selecting the variant.

Technician Checks Before Ordering

• Confirm manufacturer: Avantco Refrigeration
• Verify exact equipment model
• Verify equipment serial number
• Determine top-left or top-right location
• Match 178HINGCFDTL or 178HINGCFDTR
• Confirm solid-door vs. glass-door equipment
• Compare mounting-hole arrangement
• Inspect bottom hinge pivot
• Inspect automatic door swing cartridge where applicable
• Check door gasket condition
• Confirm door alignment

Do not order an Avantco hinge bracket by appearance alone. Similar-looking brackets are used across different refrigeration families and door styles.

Commercial Refrigeration Applications

Avantco commercial refrigeration door hardware is commonly used in:

• Reach-in refrigerators
• Reach-in freezers
• Restaurants
• Commercial kitchens
• Hotels
• Convenience stores
• Schools
• Hospitals
• Institutional kitchens
• Commercial foodservice facilities

Installation & Service Notes

Commercial refrigeration doors can be heavy. Support the door securely before removing hinge hardware.

Before removal, document:

• Original hinge orientation
• Door handing
• Mounting-hole locations
• Bottom hinge relationship
• Door alignment
• Gasket compression

Compare the replacement bracket with the removed component before installation.

After installation, verify:

• Door moves smoothly
• Door remains properly aligned
• Door does not bind or drag
• Gasket compression is even
• Latch or lock engages correctly
• Mounting hardware remains secure
• Door closes normally

Frequently Asked Questions

What is Avantco 178HINGCFDTL?

Avantco 178HINGCFDTL is the top-left hinge bracket used on select Avantco A, SS, and CFD commercial refrigeration equipment.

What is Avantco 178HINGCFDTR?

Avantco 178HINGCFDTR is the corresponding top-right hinge bracket used on select Avantco refrigeration equipment.

Are the top-left and top-right hinges interchangeable?

No. They use separate manufacturer part numbers and should be matched to the required door orientation.

Does 178HINGCFDTL fit CFD-1 equipment?

Yes. Avantco lists 178HINGCFDTL as part of the 178CFD1KITFR field-reversible hinge kit for compatible CFD1 equipment.

Do these fit CFD-2FF?

Yes. Avantco's CFD-2FF parts list identifies both 178HINGCFDTL and 178HINGCFDTR.

Do these fit CFD-3 equipment?

Avantco's CFD-3RR parts list identifies both top hinge brackets. Always verify the exact model and serial number.

Do they fit glass-door CFD units?

Not necessarily. Some CFD glass-door models use different hinge numbers such as 178HNGCFDGTL and 178HNGCFDGTR.

Can a damaged top hinge cause a door gasket leak?

Yes. Hinge wear or misalignment can create uneven gasket compression and allow warm air into the cabinet.

Should the bottom hinge be checked too?

Yes. The top and bottom hinge components work together to support and align the door.

How do I confirm the correct hinge?

Verify the complete Avantco model and serial number, door style, hinge location, original part number, and mounting arrangement before ordering.

Is professional installation recommended?

Qualified commercial refrigeration personnel can safely support the door and verify hinge alignment, gasket compression, and closing operation during replacement.
