The Avantco Bottom Cartridge Hinge Bracket is a genuine OEM commercial refrigeration door component available in separate bottom-left and bottom-right configurations. These brackets support the lower door pivot and work with the applicable hinge / automatic door swing cartridge system on compatible Avantco reach-in refrigerators and freezers.

Select the correct Avantco manufacturer part number according to the original door orientation:

• Bottom Left: 178HINGCFDBL
• Bottom Right: 178HINGCFDBR

A worn, bent, loose, or incorrectly selected hinge bracket can contribute to door sag, poor gasket compression, latch misalignment, difficult closing, refrigerated-air leakage, frost accumulation, and unnecessary refrigeration load.

OEM Part Details

• Manufacturer: Avantco Refrigeration
• Bottom Left OEM / MPN: 178HINGCFDBL
• Bottom Right OEM / MPN: 178HINGCFDBR
• Part Type: Bottom Cartridge Hinge Bracket / Door Pivot Hinge
• Construction: Chrome Die-Cast
• Bracket Style: L-Bracket with Square Pivot Opening
• Application: Commercial Reach-In Refrigeration
• Function: Lower Door Support, Pivot & Alignment

Bottom Left – Avantco 178HINGCFDBL

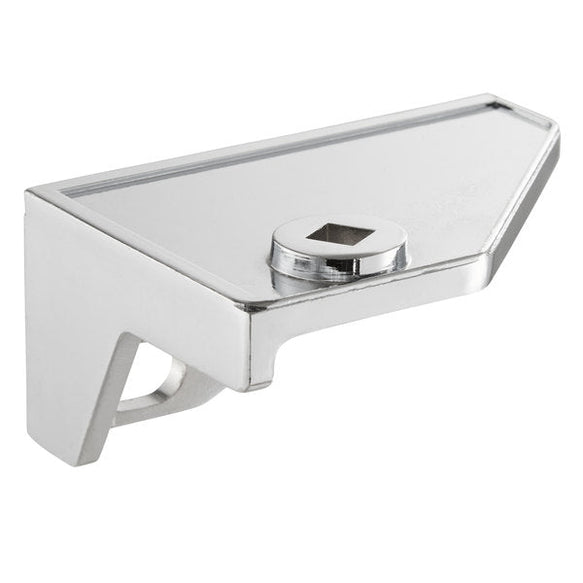

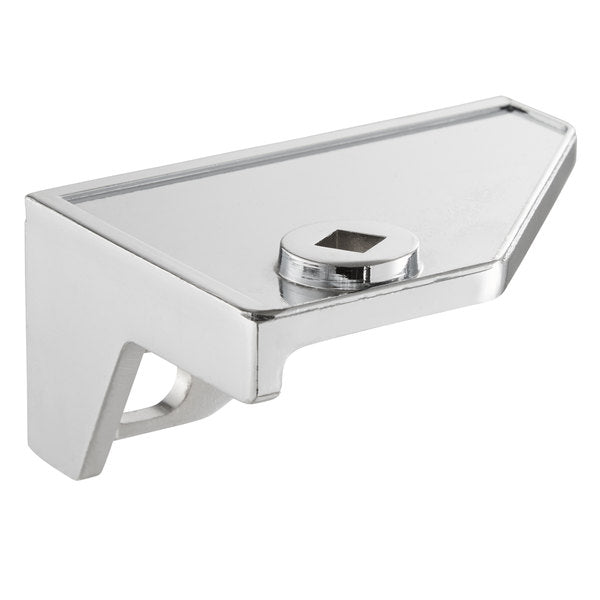

Avantco 178HINGCFDBL is the bottom-left door pivot / cartridge hinge bracket used on compatible Avantco refrigeration equipment. It provides the lower pivot location required for proper door support and movement.

RHS identifies 178HINGCFDBL as an OEM chrome die-cast cartridge bracket with an L-bracket shape and square pivot opening.

Bottom Right – Avantco 178HINGCFDBR

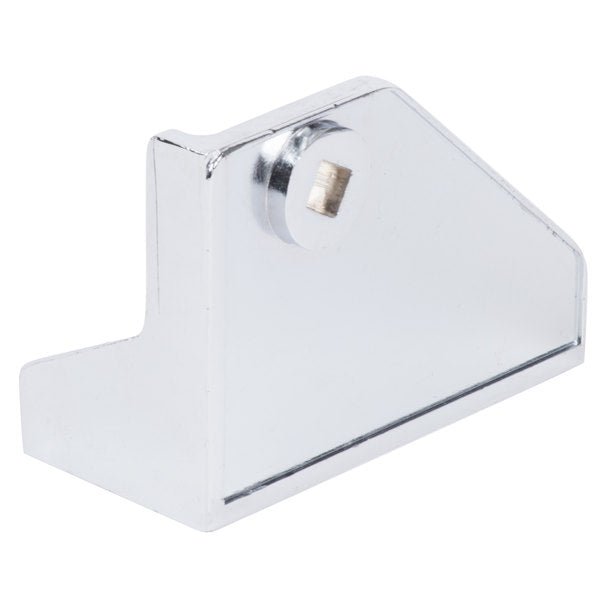

Avantco 178HINGCFDBR is the corresponding bottom-right hinge pivot / cartridge bracket for compatible Avantco refrigeration doors.

Like the left-hand version, the bracket supports the lower door pivot and must agree with the original door orientation and hinge-cartridge configuration.

Verified Avantco Applications

Avantco's published parts lists identify these bottom hinge pivots on compatible equipment including:

• CFD-1RR
• CFD-2FF
• CFD-3FF

Additional published service fitment includes select A-49F-HC, A-49R-HC, and SS-1R-HC applications depending on hinge side.

Fitment Note: Do not assume these brackets fit every CFD, A, or SS model. Avantco uses different hinge hardware on some glass-door and later-generation equipment. Verify the complete model, serial number, door style, hinge side, and original part number before ordering.

What the Bottom Hinge Bracket Does

The bottom hinge bracket carries part of the refrigeration door load and provides the lower pivot point around which the door opens and closes.

Proper hinge operation helps support:

• Smooth door movement
• Correct door alignment
• Consistent gasket compression
• Reliable latch engagement
• Proper automatic closing where equipped
• Reduced refrigerated-air leakage
• Reduced frost and condensation around the opening
• Dependable commercial refrigeration operation

Works with the Automatic Door Swing Cartridge

Compatible Avantco door systems may use the 178CARTRIDGE Automatic Door Swing Cartridge as part of the self-closing door assembly.

The hinge bracket and closing cartridge perform related but different functions:

• Bottom Hinge Bracket: Provides the lower mechanical pivot and support point.
• Automatic Door Swing Cartridge: Provides the spring / closing action used to return the door toward the closed position.

If the door is sagging, binding, or not closing properly, inspect both the hinge hardware and cartridge system before replacing parts.

Common Signs of a Worn Bottom Hinge Bracket

• Door sags at the handle side
• Door drags or rubs during operation
• Door no longer sits square in the cabinet opening
• Gasket compression becomes uneven
• Latch or lock becomes difficult to engage
• Hinge pivot develops excessive play
• Bracket is bent or cracked
• Mounting hardware repeatedly loosens
• Door requires lifting before closing
• Frost or condensation develops around one side of the opening

These symptoms do not automatically confirm bottom-hinge failure. Top hinge brackets, automatic door cartridges, gaskets, latches, cabinet alignment, and mounting surfaces can produce similar symptoms.

Inspect the Top Hinge Bracket

The top and bottom hinge assemblies work together to support and align the refrigeration door.

For applicable CFD equipment, related upper hinge references include:

• 178HINGCFDTL: Top Left Hinge Bracket
• 178HINGCFDTR: Top Right Hinge Bracket

Inspect the upper hinge for looseness, bending, wear, or mounting damage whenever a lower bracket is being replaced.

Inspect the Door Gasket

Door sag caused by worn hinge hardware can change how the magnetic gasket contacts the cabinet.

Inspect for:

• Visible air gaps
• Uneven gasket compression
• Torn gasket material
• Flattened sections
• Frost near the door perimeter
• Condensation around the opening

Replacing the hinge will not correct an air leak if the gasket itself is damaged.

Left vs. Right Selection

The left and right brackets are separate parts and should not be treated as interchangeable.

• 178HINGCFDBL: Bottom Left
• 178HINGCFDBR: Bottom Right

Compare the original hinge, door orientation, mounting holes, and equipment parts diagram before selecting the variant.

Technician Checks Before Ordering

• Confirm Avantco equipment manufacturer
• Verify complete equipment model
• Verify equipment serial number
• Determine bottom-left or bottom-right location
• Match OEM 178HINGCFDBL or 178HINGCFDBR
• Confirm solid-door vs. glass-door configuration
• Compare mounting-hole arrangement
• Inspect upper hinge bracket
• Inspect automatic door swing cartridge
• Inspect gasket condition
• Confirm door alignment

Do not order a hinge bracket by appearance alone. Avantco uses different hinge families across CFD, A, SS, Z, UBB, UDD, SCL, and glass-door equipment.

Commercial Refrigeration Applications

Avantco hinge and door components are used in commercial refrigeration environments including:

• Reach-in refrigerators
• Reach-in freezers
• Restaurants
• Commercial kitchens
• Hotels
• Convenience stores
• Schools
• Hospitals
• Institutional kitchens
• Commercial foodservice facilities

Installation & Service Notes

Commercial refrigeration doors can be heavy. Properly support the door before removing hinge hardware.

Before removal, document:

• Door orientation
• Bracket position
• Mounting-hole locations
• Top hinge relationship
• Automatic door cartridge arrangement
• Door gasket alignment

Compare the replacement bracket with the original component before installation.

After installation, verify:

• Door opens smoothly
• Door remains square to the cabinet
• Door does not drag
• Gasket compression is even
• Latch or lock engages correctly
• Automatic closing operates normally where equipped
• Mounting hardware remains secure

Frequently Asked Questions

What is Avantco 178HINGCFDBL?

Avantco 178HINGCFDBL is the OEM bottom-left cartridge hinge bracket / door pivot for compatible Avantco commercial refrigeration equipment.

What is Avantco 178HINGCFDBR?

Avantco 178HINGCFDBR is the corresponding OEM bottom-right cartridge hinge bracket / door pivot.

Are these cartridge hinge brackets?

Yes. Commercial service documentation describes them as chrome die-cast cartridge brackets with an L-bracket design and square pivot opening.

Do these fit CFD-1 equipment?

Avantco's CFD-1RR parts list identifies both 178HINGCFDBL and 178HINGCFDBR.

Do these fit CFD-2FF?

Yes. Avantco lists both bottom hinge pivots on the CFD-2FF parts list.

Do these fit CFD-3 equipment?

Avantco lists both pivots on the CFD-3FF parts list. Verify the exact model and door configuration before ordering.

Do these work with an automatic door cartridge?

Compatible Avantco door systems may use the 178CARTRIDGE automatic door swing cartridge in conjunction with the hinge hardware.

Are left and right interchangeable?

No. They use separate manufacturer part numbers and should be selected for the correct door side.

Can a worn hinge bracket cause a gasket leak?

Yes. Door sag or hinge misalignment can reduce gasket compression and allow warm, humid air into the refrigerated cabinet.

Should the top hinge be inspected too?

Yes. The upper and lower hinges work together to support and align the door.

How do I confirm the correct bracket?

Verify the Avantco model, serial number, door style, orientation, original hinge part number, mounting pattern, and select 178HINGCFDBL for left or 178HINGCFDBR for right.

Is professional installation recommended?

Qualified commercial refrigeration personnel can safely support the door and verify hinge alignment, closing operation, and gasket compression during replacement.
