The Avantco CFD Bottom Hinge Pivot is a genuine OEM door-hardware component available in separate left-hand and right-hand configurations for compatible Avantco commercial reach-in refrigerators and freezers.

The bottom hinge pivot supports the lower portion of the refrigeration door and provides the pivot point required for smooth opening and closing. Correct hinge alignment is important because a worn, bent, loose, or incorrectly selected bottom hinge can contribute to door sag, poor gasket compression, latch misalignment, air leakage, frost buildup, and increased refrigeration load.

Select the correct manufacturer part number for the required door orientation:

• Bottom Left Hinge Pivot: 178HINGCFDBL
• Bottom Right Hinge Pivot: 178HINGCFDBR

OEM Part Details

• Manufacturer: Avantco Refrigeration
• Left OEM / MPN: 178HINGCFDBL
• Right OEM / MPN: 178HINGCFDBR
• Part Type: Bottom Door Hinge Pivot / Hinge Bracket
• Application: Commercial Reach-In Refrigeration
• Function: Lower Door Support & Pivot
• Configuration: Separate Left-Hand and Right-Hand Versions

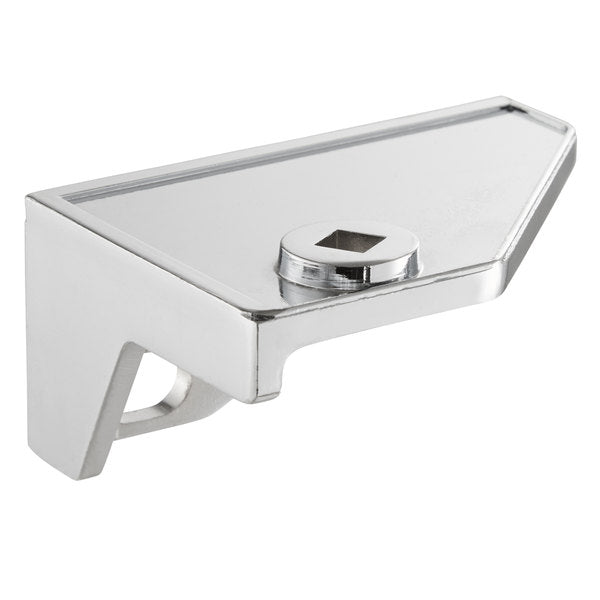

Bottom Left Hinge Pivot – 178HINGCFDBL

Avantco 178HINGCFDBL is the bottom left hinge pivot used on compatible Avantco A, SS, and CFD series equipment. Avantco publishes approximate dimensions of:

• Length: 3-1/2"
• Width: 2-1/2"
• Height: 1-1/2"

This hinge pivot is also included as part of Avantco's CFD1 field-reversible hinge kit.

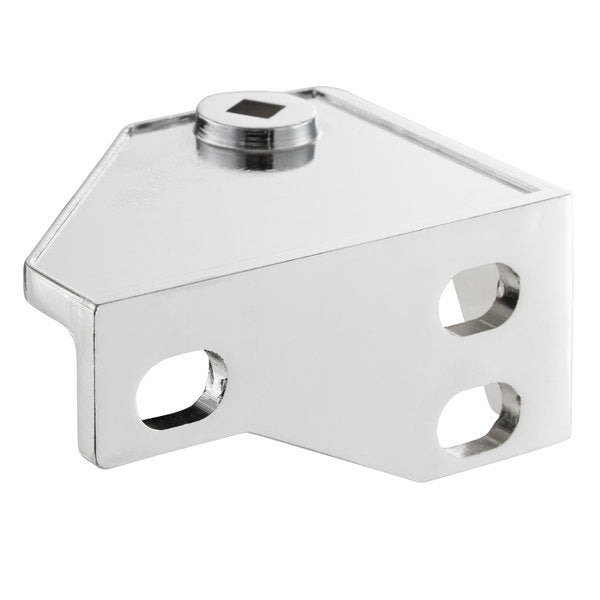

Bottom Right Hinge Pivot – 178HINGCFDBR

Avantco 178HINGCFDBR is the corresponding bottom right hinge pivot for compatible Avantco A, SS, and CFD series commercial refrigeration equipment.

The left and right pivots are separate manufacturer part numbers and should be selected according to the actual door orientation and original installed hinge.

Verified CFD Applications

Avantco's published parts lists identify these bottom hinge pivots on solid-door CFD equipment including:

• CFD-1FF
• CFD-1RR
• CFD-2FF
• CFD-3FF
• CFD-3RR

Important: Some CFD glass-door models use different bottom hinge numbers. For example, CFD-2RR-G uses 178HNGCFDGBL and 178HNGCFDGBR rather than the standard CFD solid-door pivots. Always verify the complete equipment model and original hinge before ordering.

What the Bottom Hinge Pivot Does

The bottom hinge pivot carries part of the refrigeration door load while allowing the door to rotate around its hinge point. Proper positioning helps keep the door square to the cabinet so the gasket can contact the sealing surface evenly.

Correct hinge operation helps support:

• Smooth door opening and closing
• Proper door alignment
• Consistent gasket compression
• Reliable latch engagement
• Reduced refrigerated-air leakage
• Reduced frost and condensation around the opening
• Dependable commercial refrigeration operation

Common Signs of a Worn Bottom Hinge

• Door sags at the handle side
• Door rubs or drags during operation
• Door no longer closes squarely
• Latch and strike become misaligned
• Gasket compression becomes uneven
• Hinge pivot has excessive play
• Bracket is bent or physically damaged
• Mounting hardware repeatedly loosens
• Door requires lifting before it will close
• Frost or condensation appears around one side of the opening

These symptoms do not automatically confirm bottom-hinge failure. Top hinges, automatic door swing cartridges, gaskets, latches, cabinet alignment, and mounting surfaces can create similar symptoms.

Inspect the Top Hinge

The upper and lower hinge components work together to support the door. When servicing the bottom hinge, inspect the corresponding top hinge for:

• Loose hardware
• Bent mounting points
• Excessive play
• Misalignment
• Physical damage

Avantco uses separate top hinge part numbers, including 178HINGCFDTL for left-hand and 178HINGCFDTR for right-hand configurations on applicable CFD equipment.

Inspect the Automatic Door Swing Cartridge

Many compatible Avantco reach-in doors also use an automatic door swing cartridge. If the door does not return or close normally, inspect the cartridge along with the hinge hardware rather than assuming the bottom pivot is the only failed component.

Inspect the Door Gasket

A worn hinge can change the way the gasket contacts the cabinet frame.

Inspect for:

• Uneven gasket compression
• Visible air gaps
• Torn gasket material
• Flattened sections
• Frost near the door opening
• Condensation around the cabinet perimeter

Replacing the hinge will not correct an air leak if the gasket itself is damaged.

Left vs. Right Selection

Do not select the hinge solely from a product photo. Confirm whether the door requires the bottom left or bottom right pivot based on the original installed hardware and Avantco equipment documentation.

• Left: 178HINGCFDBL
• Right: 178HINGCFDBR

Technician Checks Before Ordering

• Avantco manufacturer identification
• Complete equipment model
• Equipment serial number
• Left- or right-hand door orientation
• Original hinge part number
• Original mounting-hole pattern
• Door alignment
• Top hinge condition
• Automatic door swing cartridge condition where used
• Door gasket condition

Do not order a refrigeration hinge by appearance alone. Avantco uses different hinge assemblies across solid-door, glass-door, A, SS, CFD, and other equipment families.

Commercial Refrigeration Applications

Avantco reach-in refrigeration equipment is commonly used in:

• Restaurants
• Commercial kitchens
• Convenience stores
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Catering operations
• Commercial foodservice facilities

Installation & Service Notes

Refrigeration doors can be heavy. Properly support the door before removing hinge hardware.

Before removal, document:

• Original hinge orientation
• Mounting locations
• Door position
• Top hinge relationship
• Automatic closing components
• Door gasket alignment

Compare the replacement hinge pivot with the removed component before installation.

After installation, verify:

• Door moves smoothly
• Door remains properly aligned
• Door does not drag
• Gasket compression is even
• Latch engages correctly
• Mounting hardware remains secure
• Door returns and closes normally where an automatic swing cartridge is used

Why Correct Avantco Part Identification Matters

Avantco door hinges can appear similar while using different orientations, pivot arrangements, mounting points, and model applications.

Use 178HINGCFDBL for the bottom left pivot and 178HINGCFDBR for the bottom right pivot as the primary manufacturer identification points.

Frequently Asked Questions

What is Avantco 178HINGCFDBL?

Avantco 178HINGCFDBL is the genuine OEM bottom left hinge pivot used on compatible Avantco A, SS, and CFD series refrigeration equipment.

What is Avantco 178HINGCFDBR?

Avantco 178HINGCFDBR is the corresponding genuine OEM bottom right hinge pivot.

Do these fit CFD-1 models?

Yes. Avantco parts lists show these hinge pivots on CFD-1FF and CFD-1RR equipment.

Do these fit CFD-2 models?

They are listed for CFD-2FF solid-door equipment. Some CFD-2 glass-door models use different hinge numbers, so verify the exact model before ordering.

Do these fit CFD-3 models?

Yes. Avantco parts documentation lists these pivots on CFD-3FF and CFD-3RR equipment.

Are the left and right hinges interchangeable?

No. They use separate manufacturer part numbers and should be matched to the correct door orientation.

What are the dimensions of the bottom left pivot?

Avantco lists 178HINGCFDBL at approximately 3-1/2" long x 2-1/2" wide x 1-1/2" high.

Can a bad bottom hinge cause gasket leakage?

Yes. Door sag or poor alignment can reduce gasket compression and allow warm air into the refrigerated cabinet.

Should the top hinge be inspected too?

Yes. Top and bottom hinges work together to support and align the door.

Can I order based only on whether the unit is CFD1, CFD2, or CFD3?

No. Verify whether the equipment is solid-door or glass-door, the exact model, serial number, door orientation, and original hinge part number.

How do I confirm the correct Avantco hinge?

Verify the equipment model and serial number, original hinge, door orientation, mounting pattern, and select 178HINGCFDBL for left or 178HINGCFDBR for right.

Is professional installation recommended?

Qualified commercial refrigeration personnel can safely support the door and verify hinge alignment, gasket compression, and closing operation during replacement.
