Arctic Air 67013 OEM Bottom Right Door Hinge Bracket

Arctic Air 67013 OEM Bottom Right Door Hinge Bracket

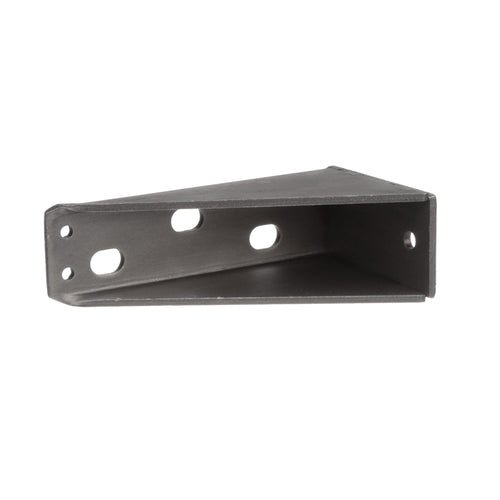

The Arctic Air 67013 Bottom Right Door Hinge Bracket is a genuine OEM commercial refrigeration door component designed for compatible Arctic Air equipment. This bracket supports the lower-right pivot area of the refrigeration door and helps maintain proper door alignment, smooth movement, and consistent gasket sealing.

Reliable hinge operation is important in commercial refrigeration because a door that sags, binds, or no longer sits squarely against the cabinet can create uneven gasket compression. That can allow warm, humid air into the refrigerated space and contribute to condensation, frost buildup, longer compressor run times, and difficulty maintaining the intended cabinet temperature.

When inspection confirms the original lower hinge bracket is bent, worn, loose, or physically damaged, using the correct Arctic Air OEM 67013 helps restore the original door-support configuration intended for compatible equipment.

OEM Part Details

• Manufacturer: Arctic Air
• OEM Part Number: 67013
• MPN: 67013
• Part Type: Bottom Right Door Hinge Bracket
• Mount Position: Bottom
• Orientation: Right
• Application: Commercial Refrigeration Door Hardware
• Function: Lower Door Support, Alignment & Pivot

Verified Arctic Air Application

Arctic Air's published AF23 parts documentation identifies 67013 as the bottom door hinge used on the AF23 reach-in freezer. Current OEM parts listings further identify 67013 as the bottom-right hinge bracket.

• Verified Model: AF23

Fitment Note: Additional Arctic Air equipment may use this hinge bracket, but compatibility should not be assumed from brand or appearance alone. Verify OEM number 67013, the complete equipment model, serial number, original hinge, mounting points, and door orientation before ordering.

What the Arctic Air 67013 Hinge Bracket Does

The 67013 bottom-right hinge bracket provides a structural pivot and support point for the applicable refrigeration door. Working together with the upper hinge, spring cartridge, axis components, and gasket, it helps keep the door positioned correctly through repeated opening and closing cycles.

Proper hinge-bracket operation helps support:

• Smooth refrigerator or freezer door movement
• Proper door alignment
• Consistent magnetic gasket compression
• Reliable latch engagement
• Reduced door sag
• Reduced refrigerated-air leakage
• Reduced frost and condensation around the opening
• Dependable commercial refrigeration operation

Related Arctic Air Door Components

Arctic Air's AF23 parts documentation identifies several related door-hardware components used in the same assembly, including:

• 67009: Bottom Hinge Axis Jacket
• 66010: Door Spring Hinge / Spring Cartridge
• 67016: Top Door Hinge Bracket
• 67008: Washer for Bottom Hinge
• 67007: Washer for Top Hinge

If the door is sagging, binding, or failing to close correctly, inspect the complete hinge system rather than assuming the 67013 bracket is the only component requiring service.

Common Signs of a Worn or Damaged Bottom Hinge Bracket

• Door sags toward the handle side
• Door no longer sits square in the cabinet opening
• Door drags or rubs during opening and closing
• Bottom hinge develops excessive movement
• Bracket is visibly bent or cracked
• Mounting hardware repeatedly loosens
• Latch or lock becomes difficult to engage
• Gasket compression becomes uneven
• Frost forms around one side of the door opening
• Condensation develops near the door perimeter

These symptoms do not automatically confirm bracket failure. The upper hinge, spring cartridge, axis jacket, door gasket, latch hardware, cabinet alignment, and mounting surfaces should also be inspected.

Inspect the Spring Cartridge

Compatible Arctic Air door systems use a spring hinge / cartridge to assist with controlled door closing. If the door no longer returns toward the closed position normally, inspect the spring component along with the lower hinge bracket.

Check for:

• Weak spring action
• Binding
• Physical damage
• Loose mounting
• Incorrect alignment

Inspect the Bottom Axis Jacket

The bottom hinge assembly may also depend on the 67009 bottom axis jacket. Wear or damage at the pivot interface can create excessive door movement even when the hinge bracket itself remains structurally intact.

Inspect the Top Hinge

The upper and lower hinge assemblies share the door load. A worn top hinge can cause symptoms similar to a failed lower bracket.

Inspect for:

• Loose mounting hardware
• Bent hinge components
• Excessive pivot play
• Misalignment
• Physical damage

Inspect the Door Gasket

Hinge alignment directly affects how evenly the gasket contacts the cabinet frame.

Check for:

• Visible gasket gaps
• Uneven compression
• Torn gasket material
• Flattened sections
• Frost around the opening
• Condensation near the door perimeter

A new hinge bracket cannot fully correct an air leak when the gasket itself is damaged.

Technician Checks Before Ordering

• OEM part number 67013
• Complete Arctic Air equipment model
• Equipment serial number
• Bottom-right hinge position
• Original mounting-hole arrangement
• Original bracket shape and orientation
• Bottom axis / pivot condition
• Spring cartridge condition
• Upper hinge condition
• Door gasket condition
• Overall door alignment

Do not select a refrigeration hinge bracket by appearance alone. Arctic Air uses several different hinge families and orientations across its equipment lines.

Installation & Service Notes

Commercial refrigeration doors can be heavy. Support the door securely before loosening or removing hinge hardware.

Before removal, document:

• Door position
• Bracket orientation
• Mounting-hole locations
• Pivot arrangement
• Top-hinge relationship
• Spring-cartridge arrangement
• Gasket alignment

Compare the replacement Arctic Air 67013 with the original bracket before installation.

After installation, verify:

• Door moves smoothly
• Door remains square to the cabinet
• Door does not drag
• Gasket compression is even
• Latch or lock engages correctly
• Spring-assisted closing operates normally
• Mounting hardware remains secure

Why Correct Arctic Air OEM Identification Matters

Commercial refrigeration hinge brackets can look very similar while using different mounting patterns, orientations, pivot arrangements, and door applications.

Using Arctic Air OEM part number 67013 together with its verified bottom-right hinge-bracket identification provides the strongest replacement reference.

Frequently Asked Questions

What is Arctic Air 67013?

Arctic Air 67013 is a genuine OEM bottom-right door hinge bracket used in compatible Arctic Air commercial refrigeration equipment.

Is Arctic Air 67013 a bottom hinge?

Yes. Arctic Air's AF23 parts list identifies 67013 as the bottom door hinge, and current OEM parts listings identify its orientation as bottom right.

Does Arctic Air 67013 fit AF23?

Yes. Arctic Air's published AF23 parts documentation specifically lists 67013 as the bottom door hinge.

Does 67013 fit AF49 or AR23E?

A manufacturer source confirming those applications was not located during this review. Verify the model, serial number, original hinge, and Arctic Air service documentation before claiming those models as compatible.

Can a bad bottom hinge cause a door gasket leak?

Yes. Door sag or poor hinge alignment can reduce gasket compression and allow warm, humid air into the cabinet.

Should the spring cartridge be inspected too?

Yes. Arctic Air door assemblies can use a separate spring hinge / cartridge that contributes to door-closing action.

Should the top hinge be checked?

Yes. The upper and lower hinges work together to support and align the door.

Can I replace 67013 with another Arctic Air bottom hinge that looks similar?

No. Verify OEM number, mounting pattern, orientation, model, serial number, and original hardware before ordering.

How do I confirm Arctic Air 67013 is correct?

Verify OEM part number 67013, complete Arctic Air model and serial number, bottom-right orientation, original bracket, pivot arrangement, and mounting pattern.

Is professional installation recommended?

Qualified commercial refrigeration personnel can safely support the door and verify hinge alignment, spring action, gasket compression, and closing operation during replacement.
