Ardco Commercial Refrigeration Door Gasket

The Ardco Commercial Refrigeration Door Gasket 30” x 63-1/16” is a replacement sealing profile designed for compatible Ardco commercial refrigeration equipment. Installed around the refrigerator or freezer door, the gasket creates a flexible seal between the door and cabinet to help reduce warm-air infiltration and maintain proper refrigerated conditions.

A properly sealing commercial refrigeration gasket is important for cabinet temperature stability, moisture control, refrigeration efficiency, and dependable equipment operation. A gasket that becomes torn, hardened, compressed, distorted, or separated from its mounting area can allow warm, humid air to enter the refrigerated cabinet.

When inspection confirms gasket deterioration, replacing the original seal with the correct Ardco door gasket profile can help restore proper door-to-cabinet contact when the hinges, latch, closer, door alignment, and sealing surfaces are also in good condition.

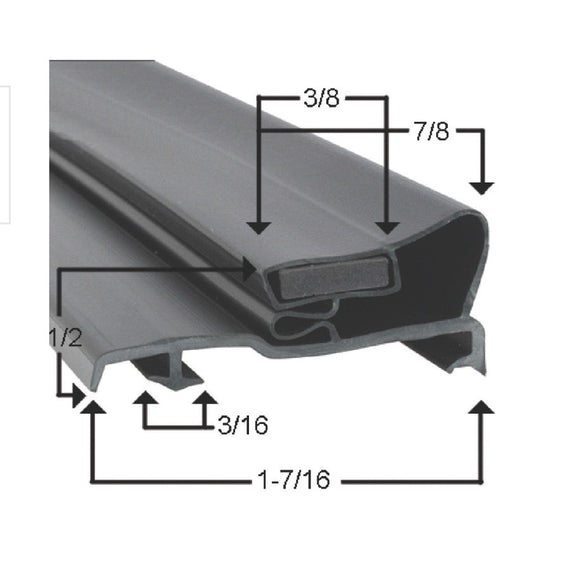

Gasket Profile Details

Manufacturer: Ardco
Part Type: Commercial Refrigeration Door Gasket
Application: Commercial Refrigeration Equipment
Function: Refrigerated Door Seal
Overall Profile Width: 1-7/16”
Overall Profile Height: 7/8”
Upper Profile Reference: 3/8”
Lower Profile Reference: 1/2”
Mounting / Dart Reference: 3/16”

Important: These measurements describe the gasket profile, not the finished width and height of the complete door gasket. Verify the original gasket profile and required finished gasket dimensions before ordering.

What This Ardco Door Gasket Does

The door gasket creates the sealing surface between the refrigerated door and cabinet. When the door closes, the gasket compresses against the cabinet to help separate the refrigerated interior from the surrounding environment.

A properly fitted gasket helps support consistent cabinet temperatures, reduced warm-air infiltration, reduced moisture entering the cabinet, proper door sealing, reduced condensation, reduced frost and ice formation in freezer applications, improved temperature recovery after door openings, and reduced unnecessary refrigeration-system load.

Common Signs of a Worn Door Gasket

Inspect the gasket if you notice visible gaps between the gasket and cabinet, tears or cracks, permanently compressed sections, damaged corners, a gasket pulling away from the door, condensation around the opening, frost or ice buildup, warm air entering around the closed door, or difficulty maintaining cabinet temperature.

These symptoms do not always mean the gasket is the only problem. Worn hinges, door sag, latch problems, damaged closers, cabinet alignment, and frame damage can also prevent the door from sealing correctly.

Why the Gasket Profile Matters

Commercial refrigeration gaskets should not be selected only by overall dimensions. The cross-sectional profile determines how the gasket attaches to the door and how it seals against the cabinet.

This Ardco gasket profile measures approximately 1-7/16” overall width by 7/8” overall height, with a 3/16” mounting or dart reference. Compare these measurements and the profile shape with the original gasket before ordering.

Two gaskets can have similar finished dimensions but completely different mounting profiles. An incorrect profile may not fit the existing retainer, may pull out of the mounting channel, or may prevent the door from sealing correctly.

Before You Order

Confirm the Ardco equipment identification, equipment model and serial number when available, original gasket profile, finished gasket width and height, mounting or dart configuration, gasket retainer or channel, door orientation, and cabinet sealing surface.

Do not order based on appearance or door dimensions alone. Both the finished gasket dimensions and the profile need to match the original application.

Check Door Alignment

A new gasket cannot correct every refrigeration door problem. Before replacing the gasket, inspect the hinges, hinge hardware, door alignment, latch, closer, frame, gasket retainer, and cabinet sealing surface.

If the door is sagging or misaligned, even the correct replacement gasket may not seal evenly.

Condensation and Frost Problems

A damaged or poorly sealing gasket can allow warm, humid air into the refrigerated cabinet. This can contribute to condensation around the door opening and increased refrigeration load.

In freezer applications, moisture entering through a poor seal can freeze and contribute to frost or ice buildup around the door.

If condensation or frost continues after gasket replacement, inspect the complete door assembly, including the hinges, latch, alignment, frame, and door or frame heater where applicable.

Installation Notes

Before removing the original gasket, note its orientation, mounting method, profile, and corner arrangement.

Clean the gasket mounting channel or retainer before installing the replacement. Remove dirt, grease, food residue, ice, and other material that could prevent the new gasket from seating correctly.

Install the gasket evenly around the door and make sure the mounting profile is fully seated. Open and close the door several times after installation and check the complete perimeter for even gasket contact.

If the new gasket does not contact the cabinet evenly, inspect the door alignment and related hardware before assuming the gasket is incorrect.

Frequently Asked Questions

What is this Ardco product?
This is a commercial refrigeration door gasket profile intended for compatible Ardco refrigerated equipment.

What is the profile size?
The profile measures approximately 1-7/16” overall width by 7/8” overall height, with additional 3/8”, 1/2”, and 3/16” profile references.

Is 1-7/16” x 7/8” the finished gasket size?
No. Those measurements describe the cross-sectional gasket profile. The finished width and height of the complete gasket must be confirmed separately.

Can I order the gasket based only on door dimensions?
No. The finished dimensions and gasket profile should both match the original gasket.

Can a bad door gasket cause the refrigerator to run warm?
Yes. A poor seal can allow warm ambient air into the cabinet and increase refrigeration load.

Can a damaged gasket cause condensation or frost?
Yes. Warm, humid air entering through a poor seal can cause condensation and, in freezer applications, frost or ice buildup.

Why won’t a new gasket seal at one corner?
Possible causes include an incorrect gasket profile, incomplete installation, door sag, worn hinges, latch misalignment, or frame damage.

How do I confirm this is the correct Ardco gasket?
Compare the original gasket profile, finished dimensions, mounting style, equipment identification, and the profile measurements before ordering.
