Arctic Air 66010 OEM Spring Hinge Cartridge

Regular price $65.50
Shipping calculated at checkout.

Delivery and Shipping

Shipping options and prices are shown at checkout. Please call 631-873-0509 before placing an expedited order. Read our shipping policy.

Description

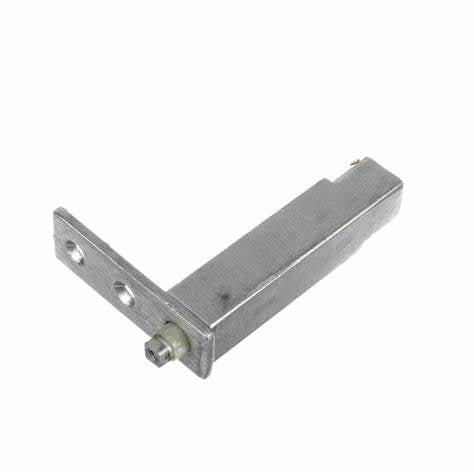

Arctic Air 66010 OEM Spring Hinge Cartridge

The Arctic Air 66010 Spring Hinge Cartridge is a genuine OEM commercial refrigeration door component designed for compatible Arctic Air refrigerators and freezers. This spring-loaded hinge component supports controlled door movement and helps the door return toward the closed position during normal equipment operation.

Reliable door closure is important in commercial refrigeration because a door that does not close correctly can allow warm, humid air into the cabinet. This can contribute to longer compressor run times, frost, condensation, unstable cabinet temperatures, and unnecessary refrigeration load.

When inspection confirms the original spring hinge or cartridge is worn, broken, binding, or no longer supporting normal door operation, using the correct Arctic Air OEM 66010 helps restore the manufacturer-specified door-hinge arrangement.

OEM Part Details

  • Manufacturer: Arctic Air
  • OEM Part Number: 66010
  • MPN: 66010
  • Part Type: Spring Hinge / Spring Cartridge
  • Approx. Length: 4.8"
  • Approx. Width: 2.6"
  • Approx. Height: 1"
  • Approx. Weight: 0.51 lb.
  • Application: Commercial Refrigeration Door Hardware
  • Function: Door Hinge Spring / Closing Assistance

What the Arctic Air 66010 Spring Hinge Does

The Arctic Air 66010 works as part of the refrigeration door hinge system. Its spring-assisted action helps support dependable door movement and closure so the gasket can maintain consistent contact with the cabinet opening.

Proper spring-hinge operation helps support:

  • Smooth door opening and closing
  • Reliable door-closing assistance
  • Proper door alignment
  • Consistent gasket compression
  • Reduced refrigerated-air leakage
  • Reduced frost and condensation around the opening
  • Stable commercial refrigeration performance

Verified Arctic Air Applications

Published commercial service-parts data associates Arctic Air 66010 with models including:

  • 69K032
  • AF23
  • AF49
  • AF49EX
  • APP71R
  • AR23
  • AR23E
  • AR49
  • AR49E
  • VPUCF27

Fitment Note: Model and door hardware can vary by serial number and production revision. Always verify OEM number 66010, complete equipment model, serial number, original hinge, mounting arrangement, and door orientation before ordering.

Common Signs of a Worn Spring Hinge

  • Door no longer closes normally
  • Door remains partially open
  • Door closing action becomes weak
  • Hinge movement becomes rough or binding
  • Spring action becomes inconsistent
  • Door sags or becomes misaligned
  • Latch no longer engages correctly
  • Gasket compression becomes uneven
  • Frost or condensation develops around the door opening
  • Hinge components show visible damage or wear

These symptoms do not automatically confirm failure of the 66010 spring hinge. Other hinges, door brackets, latches, gaskets, and door alignment should also be inspected.

Inspect the Door Gasket

A worn hinge can affect how evenly the magnetic gasket contacts the cabinet frame.

Inspect for:

  • Visible air gaps
  • Torn gasket material
  • Flattened gasket sections
  • Uneven compression
  • Frost around the door opening
  • Condensation near the gasket perimeter

A new hinge will not correct an air leak if the gasket itself is damaged.

Inspect the Other Door Hinges & Brackets

The complete door assembly should be inspected whenever one hinge component fails.

Check for:

  • Loose mounting hardware
  • Bent hinge brackets
  • Excessive pivot play
  • Misalignment
  • Corrosion
  • Physical damage

Inspect the Latch & Door Alignment

A sagging or misaligned refrigeration door can cause the latch or lock to bind. Confirm correct hinge alignment before replacing or adjusting latch hardware.

Technician Checks Before Ordering

  • OEM part number 66010
  • Complete Arctic Air equipment model
  • Equipment serial number
  • Original spring-hinge configuration
  • Door orientation
  • Mounting points
  • Original hinge dimensions
  • Condition of mating hinge hardware
  • Door gasket condition
  • Door alignment

Do not select a refrigeration hinge by appearance alone. Similar Arctic Air door components can use different mounting points, spring arrangements, and equipment applications.

Commercial Refrigeration Applications

Arctic Air commercial refrigeration equipment is commonly used in:

  • Restaurants
  • Commercial kitchens
  • Convenience stores
  • Hotels
  • Schools
  • Hospitals
  • Institutional kitchens
  • Foodservice facilities

Installation & Service Notes

Refrigeration doors can be heavy. Properly support the door before loosening or removing hinge components.

Before removal, document:

  • Hinge orientation
  • Door position
  • Mounting-hole locations
  • Related hinge brackets
  • Door alignment
  • Gasket compression

Compare the replacement Arctic Air 66010 with the original spring hinge before installation.

After installation, verify:

  • Door opens smoothly
  • Spring action operates normally
  • Door returns toward the closed position
  • Door remains properly aligned
  • Gasket compression is even
  • Latch engages correctly
  • Mounting hardware remains secure

Frequently Asked Questions

What is Arctic Air 66010?

Arctic Air 66010 is a genuine OEM spring hinge / spring cartridge used in compatible Arctic Air commercial refrigeration equipment.

Is 66010 a hinge or spring cartridge?

Published parts-catalog references describe this part as both a spring hinge and a spring cartridge.

What are the approximate dimensions?

Published parts-catalog references list approximately 4.8" long x 2.6" wide x 1" high.

Does Arctic Air 66010 fit AF23?

Yes. AF23 is a published application for Arctic Air 66010.

What other models use 66010?

Published fitment includes AF49, AF49EX, AR23, AR23E, AR49, AR49E, APP71R, VPUCF27, and additional Arctic Air applications.

Can a worn spring hinge keep the door from closing?

Yes. Weak or damaged spring action can contribute to poor closing, although other hinge and alignment problems can produce similar symptoms.

Can a bad hinge cause gasket leakage?

Yes. Door sag or misalignment can reduce gasket compression and allow warm air into the cabinet.

Should the other hinges be checked?

Yes. The entire door-hardware system should be inspected whenever one hinge component is worn or damaged.

Can I replace 66010 with another spring cartridge that looks similar?

No. Verify OEM number 66010, equipment model, serial number, mounting arrangement, and original hinge configuration before ordering.

How do I confirm Arctic Air 66010 is correct?

Verify OEM part number 66010, complete Arctic Air model and serial number, original hinge, mounting points, and door arrangement before ordering.
