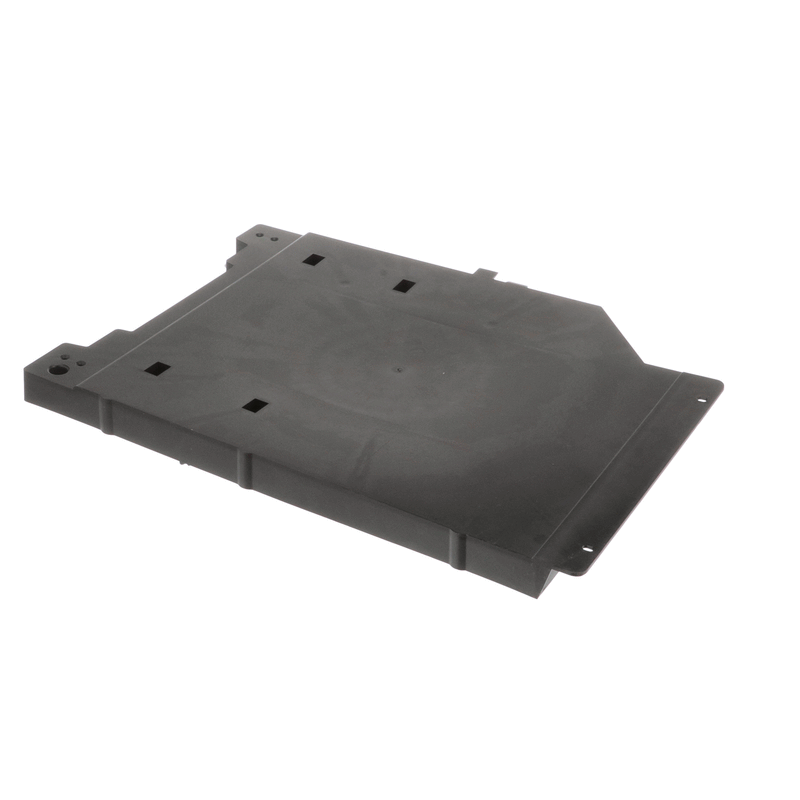

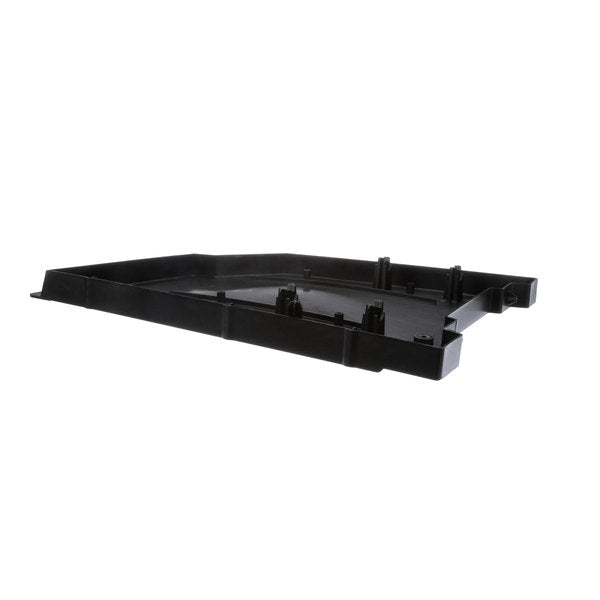

The Arctic Air 297165801 Evaporator Drain Pan is a genuine OEM refrigeration drainage component designed for compatible Arctic Air commercial refrigeration equipment. Measuring approximately 13" x 19", this pan collects condensate and defrost water from the evaporator section and directs that moisture into the equipment's drainage system.

Reliable condensate management is important in commercial refrigeration because standing or uncontrolled water can contribute to cabinet leaks, ice buildup, corrosion, damaged flooring, moisture around electrical components, and unnecessary service problems.

When inspection confirms the original pan is cracked, damaged, corroded, distorted, or leaking, using the correct Arctic Air OEM 297165801 helps restore the drainage configuration intended for compatible equipment.

OEM Part Details & Specifications

• Manufacturer: Arctic Air
• OEM Part Number: 297165801
• MPN: 297165801
• Part Type: Evaporator Drain Pan / Condensate Pan
• Approx. Dimensions: 13" x 19"
• Application: Commercial Refrigeration
• System: Evaporator Drainage / Condensate Management
• Function: Condensate Collection & Drain Routing

What the Arctic Air 297165801 Drain Pan Does

The 297165801 drain pan sits within the applicable refrigeration drainage system and collects water generated around the evaporator during normal operation and defrost conditions.

The pan helps direct that moisture toward the intended drain path instead of allowing water to remain uncontrolled inside or beneath the refrigeration cabinet.

Proper drain-pan operation helps support:

• Controlled condensate collection
• Proper evaporator drainage
• Reduced standing water
• Reduced cabinet leakage
• Reduced corrosion around refrigeration components
• Reduced ice accumulation caused by trapped water
• Cleaner commercial refrigeration operation

13" x 19" Drain Pan

Commercial service-parts documentation identifies Arctic Air 297165801 as an approximately 13-inch x 19-inch evaporator drain pan.

Dimensions are important, but size alone does not establish compatibility. Two drain pans can have similar outside measurements while using different:

• Drain outlet locations
• Pan depths
• Mounting points
• Drain fittings
• Evaporator relationships
• Equipment applications

Always compare the original pan and OEM part number before ordering.

Verified Arctic Air Applications

Arctic Air parts documentation confirms OEM 297165801 as the drain pan on applicable F22CWF-Series equipment, including:

• F22CWF3
• F22CWF4

Additional cross-brand equipment uses the same manufacturer part number, but fitment should not be assumed solely because the pan looks similar. Verify the complete model and serial number before ordering.

Common Signs of a Damaged Evaporator Drain Pan

• Water leaking beneath the refrigerator or freezer
• Standing water inside the cabinet
• Water collecting near the evaporator section
• Visible cracks in the drain pan
• Pan is warped or physically distorted
• Corrosion or deterioration is present
• Drain outlet is damaged
• Mounting points are broken
• Water overflows even when the drain tube is connected
• Ice repeatedly forms around the drainage area

These symptoms do not automatically confirm pan failure. A blocked drain tube, frozen drain, incorrect equipment leveling, excessive condensate, defrost problems, or door-gasket leakage can produce similar symptoms.

Diagnosing Water Leaks

If the refrigeration equipment is leaking water, technicians should determine whether the pan itself is damaged or whether water is failing to reach or leave the pan correctly.

Inspect:

• Drain pan for cracks
• Drain outlet
• Drain tubing
• Drain fittings
• Evaporator drain opening
• Ice restrictions
• Equipment leveling
• Defrost operation
• Door gasket condition

Check the Drain Path

A replacement drain pan will not correct an obstruction farther downstream in the drainage system.

Inspect the complete path for:

• Food debris
• Scale
• Ice
• Blocked tubing
• Kinked drain hoses
• Damaged fittings
• Improper drain routing

Check for Evaporator Ice Buildup

Water that cannot drain correctly can refreeze around the evaporator section. If the original pan has been damaged by repeated icing, diagnose the source of the ice before installing the replacement.

Possible causes include:

• Defrost-system failure
• Defrost heater problems
• Defrost control problems
• Evaporator fan failure
• Blocked airflow
• Door gasket leakage
• Warm-air infiltration
• Drain blockage

Door Gaskets & Excess Condensate

A damaged refrigerator or freezer door gasket can allow warm, humid air into the cabinet. That additional moisture can increase condensate production and contribute to water or ice around the evaporator area.

If water volume appears unusually high, inspect:

• Door gasket condition
• Door alignment
• Hinges
• Latch condition
• Visible gasket gaps
• Frequency of door openings

Technician Checks Before Ordering

Before ordering Arctic Air 297165801, verify:

• OEM part number 297165801
• Complete Arctic Air equipment model
• Equipment serial number
• Approx. 13" x 19" dimensions
• Original pan shape
• Drain outlet location
• Drain fitting arrangement
• Mounting points
• Pan orientation
• Relationship to the evaporator assembly

Do not order a drain pan by dimensions alone. Verify the OEM number and original pan configuration before purchasing.

Commercial Refrigeration Applications

Arctic Air refrigeration equipment is commonly used in commercial environments including:

• Restaurants
• Commercial kitchens
• Convenience stores
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Foodservice facilities

Installation & Service Notes

Before removing the original drain pan, document:

• Pan orientation
• Drain outlet position
• Drain tubing location
• Mounting points
• Relationship to the evaporator
• Clearance from surrounding components

Compare the replacement Arctic Air 297165801 with the original pan before installation.

After installation, verify:

• Pan sits securely
• Condensate enters the pan correctly
• Drain outlet aligns with the drain system
• Water flows freely
• No leaks are present
• No water spills over the pan
• Evaporator drainage operates normally

Why Correct Arctic Air OEM Identification Matters

Commercial refrigeration drain pans can look similar while using different dimensions, outlet locations, mounting points, depths, and equipment applications.

Using Arctic Air OEM part number 297165801 together with the published 13" x 19" dimensions provides the strongest replacement reference.

Frequently Asked Questions

What is Arctic Air 297165801?

Arctic Air 297165801 is a genuine OEM evaporator / condensate drain pan used in compatible Arctic Air refrigeration equipment.

What size is Arctic Air 297165801?

Commercial parts documentation identifies the pan at approximately 13" x 19".

What does the evaporator drain pan do?

The pan collects condensate and defrost water from the evaporator area and directs it toward the equipment's drainage system.

Does Arctic Air 297165801 fit F22CWF4?

Yes. Arctic Air's own F22CWF4 parts documentation lists 297165801 as the pan-drain.

Does it fit F22CWF3?

Yes. Current model-specific parts data also identifies 297165801 for F22CWF3.

Can a cracked drain pan cause water beneath the freezer?

Yes. A crack or damaged drain outlet can allow condensate to leak instead of flowing through the intended drainage path.

Can a clogged drain make the pan overflow?

Yes. A blocked or frozen drain can cause water to back up even if the drain pan itself is intact.

Can a bad door gasket increase condensate?

Yes. Warm humid air entering through a poor door seal can increase moisture accumulation inside the refrigeration cabinet.

Can I replace this with any 13" x 19" drain pan?

No. Verify OEM number 297165801, pan shape, outlet location, mounting points, equipment model, and serial number before ordering.

How do I confirm Arctic Air 297165801 is correct?

Verify OEM part number 297165801, complete Arctic Air model and serial number, original pan dimensions, drain outlet position, mounting arrangement, and equipment documentation.

Is professional installation required?

Many drain-pan replacements are mechanically straightforward, but qualified refrigeration personnel can verify drainage, defrost operation, equipment leveling, and the cause of any recurring water problem.
