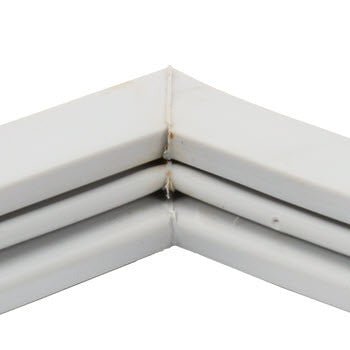

American Panel Magnetic Dart-Mount Door Gasket

OEM Part Details

• OEM Number: 9A-1050
• OEM Status: VERIFIED
• MPN: 9A-1050
• SKU: 19289D1
• Part Type: Door Gasket

Product Overview

OEM Part Details OEM Part Number: 9A-1050 MPN: 9A-1050 SKU: 19289D1 Part Type: Magnetic dart-mount door gasket OEM Status: VERIFIED Product Overview The 9A-1050 magnetic dart-mount door gasket is a commercial refrigeration door-sealing component that helps the door close against the cabinet opening with a consistent seal. Its magnetic gasket body is intended to draw the door into position, while the dart-mount edge secures the gasket in the appropriate door channel. A properly seated gasket helps reduce cabinet air leakage that can allow warmer, moisture-laden air to enter the refrigerated space. Door sealing matters in daily commercial equipment operation because a worn, torn, compressed, or incorrectly seated gasket can affect door closure and contribute to frost, condensation, and unstable cabinet conditions. Replacing a damaged gasket can restore the door assembly's sealing function when the correct profile and mounting style are selected. This part should be compared carefully with the removed gasket before ordering, including its magnetic design, dart-mount attachment, corner shape, and overall door configuration. The verified OEM part number 9A-1050 is the primary identification point for this door gasket.

Product Function

Product Function This magnetic dart-mount door gasket creates a compressible seal between a commercial refrigeration door and the cabinet frame. The magnetic portion helps hold the door edge against the sealing surface when the door is closed. Its dart-mount profile is designed to engage the door's gasket channel, keeping the gasket positioned around the door perimeter. When the gasket is in sound condition and the door is aligned correctly, it helps limit air movement through the door opening. That supports normal cabinet operation by reducing unnecessary cold-air loss and outside-air entry around the door assembly.

Why Choose a Genuine OEM Replacement?

Why Choose a Genuine OEM Replacement? Using the verified OEM part number 9A-1050 gives service personnel a dependable identification reference when selecting this magnetic dart-mount door gasket. Matching the original part number helps reduce wrong-order risk and provides a clearer basis for comparing the removed gasket's mounting profile, magnetic construction, and door configuration. It is still important to inspect the original component and the door channel before purchase, since gasket condition, door alignment, and mounting-channel condition can all affect sealing results.

How This Part Works

How This Part Works A door gasket works as the flexible sealing surface between the door and cabinet frame. As the door closes, the gasket compresses against the frame. The magnetic section helps keep the door perimeter drawn toward the sealing surface, while the dart-mount edge holds the gasket in its designated channel on the door. This combination allows the gasket to follow the door perimeter and maintain contact as the door is shut. Over time, repeated opening and closing, impact damage, compression set, tearing, or a gasket that has pulled away from its channel can reduce the quality of that seal. Door hinges, latches, closers, and the gasket channel also influence how evenly the gasket contacts the frame. A replacement gasket addresses the sealing component itself, but the surrounding door hardware should be inspected when poor closure or uneven compression is present.

Technician Service Tip

Technician Service Tip Before removing the original gasket, inspect how its dart-mount edge is seated in the door channel and compare the full perimeter profile with part number 9A-1050. Check the channel for debris, damage, or sections where the existing gasket has pulled loose. If the replacement gasket does not contact the frame evenly after installation, inspect door hinge and latch alignment rather than forcing the gasket into position.

Common Failure Symptoms

• A torn, split, or visibly damaged gasket may indicate that the door seal should be inspected.
• A door that does not sit firmly against the cabinet frame can indicate gasket compression loss or door-alignment concerns.
• Frost forming near the door perimeter may indicate outside-air entry through a compromised seal.
• Moisture or condensation around the door opening can indicate that the gasket is not sealing evenly.
• Sections of gasket pulling out of the door channel may indicate a damaged dart-mount edge or channel issue.
• A flattened gasket that no longer rebounds against the frame may indicate wear from repeated door use.
• Visible gaps between the closed door and cabinet frame may indicate gasket, hinge, latch, or closer concerns.
• A door that requires extra pressure to stay closed should be inspected for gasket profile, mounting, and hardware condition.
• Uneven contact marks around the gasket perimeter may indicate door alignment or compression issues.
• Cabinet conditions that appear affected near the door opening may indicate that the door seal and related hardware need evaluation.

Commercial Applications

Commercial Applications This door gasket is identified for commercial refrigeration door-sealing service. It is relevant to foodservice equipment maintenance where a refrigerated cabinet door depends on a magnetic gasket and dart-mount attachment to help maintain a closed door seal. Commercial refrigeration service personnel may inspect this type of component during repairs involving cabinet air leakage, frost near the door opening, condensation, poor door closure, or a gasket that has become worn or detached from its channel. Specific equipment fitment is not supplied, so the OEM number 9A-1050 and the original gasket configuration should be confirmed before ordering.

Before You Order

• Match the verified OEM part number 9A-1050 to the required replacement part.
• Compare the removed component with the product image and confirm that it is a magnetic door gasket.
• Confirm that the original gasket uses a dart-mount attachment style.

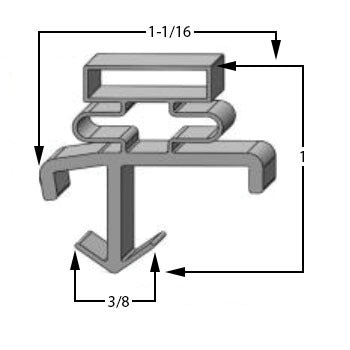

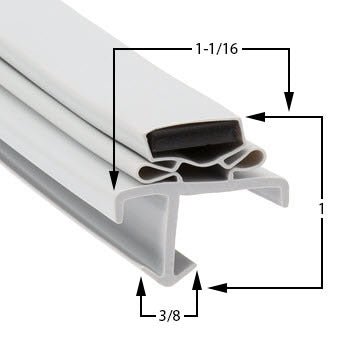

• Inspect the gasket profile and corner configuration against the original component.
• Check that the door channel is suitable for the original dart-mount gasket arrangement.
• Review the equipment data plate and available service documentation for part identification.
• Inspect the door frame contact area for damage, debris, or uneven wear that could affect sealing.
• Check door hinges, latch hardware, and closer condition if the door has poor alignment or uneven closure.
• Do not rely on dimensions unless they are confirmed from an approved equipment source.
• Confirm the SKU 19289D1 and MPN 9A-1050 when using catalog records for ordering.

Related Components

• Door hinges should be inspected because hinge wear or misalignment can prevent the door gasket from contacting the cabinet frame evenly.
• Door latch hardware should be inspected because insufficient latch engagement can leave gaps even when the gasket is in good condition.
• Door closer components should be inspected because weak or damaged closing hardware may keep the door from fully compressing the gasket.
• The gasket retainer or door channel should be inspected because damage, debris, or distortion can prevent the dart-mount edge from seating securely.
• The door frame sealing surface should be inspected because dents, damage, or buildup can interfere with consistent gasket contact.

Frequently Asked Questions

What is OEM part number 9A-1050?

OEM part number 9A-1050 identifies a magnetic dart-mount door gasket for commercial refrigeration door-sealing service.

What does a magnetic dart-mount door gasket do?

It helps seal the perimeter between a closed refrigeration door and the cabinet frame. The magnetic section helps draw the door toward the sealing surface, and the dart-mount edge secures the gasket in the door channel.

How do I confirm this is the correct door gasket?

Match OEM part number 9A-1050, then compare the original gasket's magnetic construction, dart-mount profile, corner shape, and door-channel arrangement. Review the equipment data plate and available service documentation as part of the identification process.

What can indicate a worn door gasket?

Tears, flattening, loose sections in the door channel, visible gaps, frost near the door perimeter, condensation, and poor door closure can indicate that the gasket and related door hardware should be inspected.

Should hinges and latches be checked when replacing a door gasket?

Yes. Door hinges, latch hardware, closers, and the gasket channel can affect door alignment and gasket compression. Inspecting these related components can help identify conditions that may prevent an even seal.

Are dimensions provided for this door gasket?

No verified dimensions are supplied for this item. Compare the original gasket profile and mounting arrangement, and use approved equipment documentation when dimensional confirmation is required.
