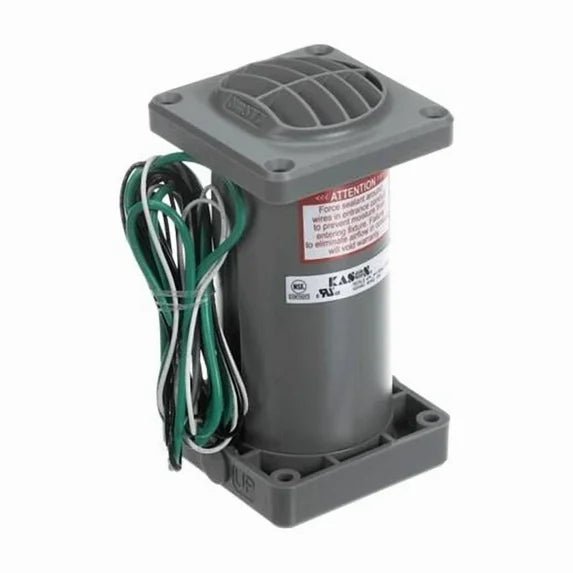

American Panel 9F-1015 OEM Heated Pressure Relief Vent – 115V

American Panel 9F-1015 OEM Heated Pressure Relief Vent – 115V

The American Panel 9F-1015 Heated Pressure Relief Vent is a genuine OEM 115V walk-in refrigeration component designed for compatible American Panel cooler and freezer applications. This heated vent provides a controlled passage for pressure equalization between the refrigerated enclosure and the surrounding environment while helping reduce ice accumulation around the vent opening.

Pressure differences can develop inside walk-in coolers and freezers as temperatures change and doors open or close. If pressure is not equalized properly, the door may become unusually difficult to open. The heated design helps keep the vent passage functional in low-temperature environments where moisture and ice could otherwise restrict airflow.

When qualified diagnosis confirms replacement is required, using the correct American Panel OEM 9F-1015 helps restore the pressure-equalization configuration intended for compatible commercial refrigeration equipment.

OEM Part Details & Specifications

• Manufacturer: American Panel
• OEM Part Number: 9F-1015
• MPN: 9F-1015
• Part Type: Heated Pressure Relief Vent / Heated Pressure Relief Port
• Voltage: 115V
• Shape: Square
• Approx. Length: 7"
• Approx. Width: 6.35"
• Approx. Height: 3.9"
• Application: Commercial Walk-In Coolers & Freezers
• System: Pressure Equalization / Door Relief
• Function: Pressure Equalization & Vent-Icing Reduction

What the American Panel 9F-1015 Pressure Relief Vent Does

The American Panel 9F-1015 provides a passage through which air can move as pressure changes inside the refrigerated enclosure. This helps reduce the pressure difference between the walk-in and the surrounding room.

Proper pressure-relief operation helps support:

• Easier walk-in door opening
• Pressure equalization after door closure
• Reduced pressure-related resistance at the door
• Reduced ice accumulation around the vent passage
• Reliable walk-in cooler and freezer operation
• Reduced stress on door hardware caused by pressure imbalance

Why a Heated Pressure Relief Vent Is Used

In freezer and low-temperature applications, moisture around a pressure-relief passage can freeze and restrict airflow. The heated design helps reduce ice buildup around the vent so the pressure-equalization path can remain open during normal operation.

The heater does not replace the walk-in door gasket, door heater, or perimeter anti-sweat system. Each component performs a different function within the enclosure.

Common Signs of a Pressure Relief Vent Problem

Qualified commercial refrigeration technicians may inspect the American Panel 9F-1015 when troubleshooting conditions such as:

• Walk-in door is unusually difficult to open after closing
• Pressure-related door resistance is present
• Ice or frost is visible around the vent
• Vent passage appears blocked
• Heater does not appear to operate
• Vent housing is cracked or physically damaged
• Electrical leads are damaged
• Moisture repeatedly freezes around the vent opening
• Pressure equalization takes longer than expected

These symptoms do not automatically confirm vent failure. Door-gasket condition, door alignment, latches, hinges, closers, freezer temperature, humidity, and other enclosure conditions can create similar symptoms. The complete door and pressure-relief system should be evaluated before replacing the vent.

Diagnosing a Walk-In Door That Is Hard to Open

A walk-in door that becomes difficult to reopen immediately after closing may be experiencing a pressure difference between the refrigerated enclosure and the surrounding room.

Technicians should inspect:

• Pressure relief vent condition
• Vent passage for blockage
• Vent heater operation
• Door gasket condition
• Door alignment
• Door closer
• Latch and strike alignment
• Hinge condition
• Interior and exterior temperature conditions

Correct diagnosis helps distinguish a pressure-relief issue from a mechanical door problem.

Inspect for Ice & Frost

Ice accumulation can restrict the vent passage and prevent normal pressure equalization.

Inspect for:

• Ice around the vent grille
• Frozen internal passage
• Moisture buildup
• Heater failure
• Damaged insulation
• Electrical connection problems

Repeated icing should prompt inspection of the heater circuit and the surrounding enclosure conditions.

Inspect the Heater Circuit

The heated vent relies on electrical power to help reduce freezing around the pressure-relief passage.

Qualified technicians should inspect:

• 115V supply
• Vent heater wiring
• Electrical connectors
• Lead condition
• Corrosion
• Heat-damaged insulation
• Loose terminals

Any damaged wiring or electrical connection should be corrected before the replacement vent is energized.

Pressure Relief Vent vs. Door Gasket

The pressure relief vent and door gasket perform different functions:

• Pressure Relief Vent: Helps equalize air pressure between the walk-in and surrounding environment.
• Door Gasket: Provides the flexible seal around the door perimeter.

A failed door gasket can create air leakage and moisture problems, while a blocked pressure relief vent can cause door-opening resistance. Both should be inspected when walk-in door problems are present.

Technician Checks Before Ordering

Before ordering American Panel 9F-1015, verify:

• OEM part number 9F-1015
• Complete American Panel equipment identification
• Walk-in cooler or freezer application
• Equipment serial number where available
• 115V electrical requirement
• Original vent dimensions
• Vent mounting opening
• Vent orientation
• Electrical lead arrangement
• Original mounting points

Do not select a pressure relief vent by appearance alone. Similar vents can use different voltages, dimensions, heater arrangements, mounting patterns, and enclosure applications.

No Verified Public Model Fitment List

A reliable public model-fitment list is not currently available for American Panel 9F-1015 from the OEM parts source used for this listing. Verify the OEM number, equipment identification, electrical rating, dimensions, mounting, and original component before ordering.

Commercial Walk-In Applications

American Panel heated pressure relief vents are used in commercial refrigeration environments including:

• Walk-in coolers
• Walk-in freezers
• Commercial cold-storage rooms
• Restaurants
• Supermarkets
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Food distribution facilities
• Commercial foodservice operations

Installation & Electrical Safety Notes

Disconnect electrical power before servicing heated walk-in refrigeration components.

Before removing the original 9F-1015 vent, document:

• Vent orientation
• Mounting position
• Electrical lead routing
• Mounting-hole arrangement
• Wall opening dimensions
• Relationship to the walk-in door and enclosure

Compare the replacement American Panel 9F-1015 with the original component before installation.

After installation, verify:

• The vent is mounted securely
• The passage remains unobstructed
• Electrical connections are secure
• The heater operates correctly
• No excessive ice forms around the vent
• The walk-in pressure equalizes normally
• The door opens without abnormal pressure resistance

Why Correct American Panel OEM Identification Matters

Heated pressure relief vents can look similar while using different voltages, heater arrangements, dimensions, mounting patterns, and walk-in applications.

Using American Panel OEM part number 9F-1015 together with the verified 115V heated square vent identification provides the strongest replacement reference.

Frequently Asked Questions

What is American Panel 9F-1015?

American Panel 9F-1015 is a genuine OEM heated pressure relief vent used in compatible commercial walk-in refrigeration applications.

What voltage is American Panel 9F-1015?

The vent is identified for 115V operation.

What are the approximate dimensions?

Published dimensions are approximately 7" long x 6.35" wide x 3.9" high.

What does a heated pressure relief vent do?

It provides a controlled path for air pressure equalization between the refrigerated enclosure and the surrounding area while helping reduce ice buildup around the vent.

Can a blocked pressure relief vent make a walk-in door hard to open?

Yes. A restricted vent can prevent pressure equalization and contribute to increased door-opening resistance.

Why is the vent heated?

The heating function helps reduce frost and ice accumulation that could obstruct the vent passage in low-temperature environments.

Is the pressure relief vent the same as the door gasket?

No. The vent manages pressure equalization, while the door gasket seals the door perimeter.

Can ice buildup damage the vent?

Yes. Repeated icing can restrict airflow and may damage the vent or surrounding components.

Does 9F-1015 have a verified model list?

A reliable public model-fitment list is not currently available from the OEM parts source checked for this listing. Verify equipment identification and original part before ordering.

Can I replace 9F-1015 with another 115V pressure vent?

No. Verify OEM part number 9F-1015, dimensions, heater configuration, mounting arrangement, equipment application, and original component before ordering.

How do I confirm American Panel 9F-1015 is correct?

Verify OEM part number 9F-1015, the complete American Panel equipment identification, 115V requirement, dimensions, mounting arrangement, and electrical connections before ordering.

Is professional installation recommended?

Yes. Heated walk-in refrigeration components should be diagnosed and installed by qualified commercial refrigeration personnel.
