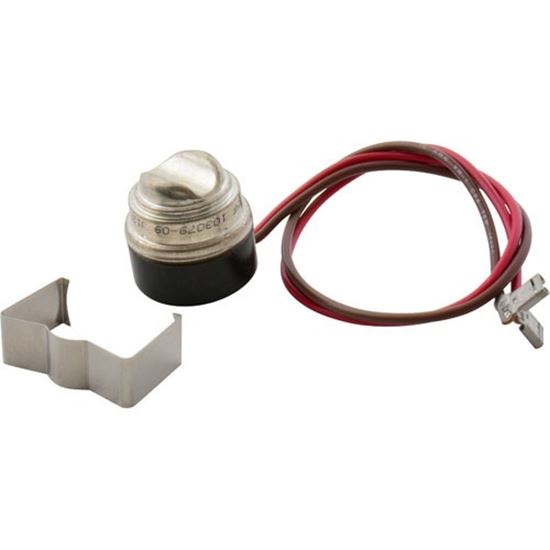

The American Panel 9E-1061 Defrost Fan Delay Control is a genuine OEM refrigeration control used in compatible American Panel commercial refrigeration systems. The control works within the evaporator fan and defrost sequence to delay fan operation until the refrigeration system reaches the appropriate operating condition after defrost.

Proper evaporator fan sequencing is important in walk-in cooler and freezer applications because restarting the fans too early can move warm, moisture-laden air from the evaporator area into the refrigerated space. A fan-delay control that fails electrically, sticks, operates intermittently, or no longer responds correctly can contribute to abnormal fan operation, poor temperature recovery, or evaporator airflow concerns.

When qualified diagnosis confirms fan-delay control replacement is required, using the correct American Panel OEM 9E-1061 helps restore the original defrost and fan-control configuration intended for compatible equipment.

OEM Part Details

• Manufacturer: American Panel
• OEM Part Number: 9E-1061
• MPN: 9E-1061
• Part Type: Defrost Fan Delay Control
• Application: Commercial Refrigeration
• System: Evaporator Fan / Defrost Control
• Function: Post-Defrost Evaporator Fan Delay

What the American Panel 9E-1061 Fan Delay Control Does

The American Panel 9E-1061 controls when the applicable evaporator fan circuit is allowed to resume operation following defrost. During a normal defrost event, the evaporator fan may remain off while frost and ice are removed from the coil. The fan-delay control helps prevent fan operation until the required post-defrost condition has been reached.

Proper fan-delay operation helps support:

• Correct evaporator fan restart timing
• Normal post-defrost airflow
• Reduced movement of warm defrost air into the refrigerated space
• Stable cabinet or walk-in temperatures
• Proper evaporator airflow after defrost
• Reliable commercial refrigeration operation

Common Signs of a Fan Delay Control Problem

Qualified commercial refrigeration technicians may inspect the American Panel 9E-1061 when troubleshooting conditions such as:

• Evaporator fans remain off after the equipment should return to refrigeration
• Fans restart earlier than expected after defrost
• Fan operation becomes intermittent around the defrost cycle
• Fan circuit does not respond normally to evaporator temperature conditions
• Control remains electrically open or closed when it should change state
• Control leads or terminals are damaged
• Wiring shows corrosion or heat damage
• Equipment has abnormal temperature recovery after defrost
• Evaporator airflow does not resume normally after defrost

These symptoms do not automatically confirm failure of the 9E-1061 control. Defrost timers, heaters, evaporator fan motors, wiring, relays, temperature controls, ice accumulation, and other refrigeration components can produce similar symptoms. Diagnose the complete fan and defrost circuit before replacing the control.

Diagnosing Fans That Do Not Restart After Defrost

If the evaporator fans remain off after defrost, technicians should determine whether the fan-delay control is preventing operation or whether another part of the fan circuit is responsible.

Depending on the equipment configuration, inspect:

• 9E-1061 fan-delay control state
• Evaporator fan motors
• Fan wiring
• Electrical connectors
• Defrost timer or controller
• Control relays
• Evaporator temperature
• Supply voltage

Testing the complete circuit helps prevent unnecessary replacement of a functioning control when another electrical or mechanical problem is responsible.

Diagnosing Fans That Restart Too Early

If the evaporator fans restart while the coil area is still warm after defrost, technicians should verify the fan-delay control and the conditions that determine when fan operation is permitted.

Possible inspection points include:

• Fan-delay control operation
• Control mounting or sensing location
• Evaporator temperature
• Defrost-control sequence
• Electrical wiring
• Related fan-control components

Fan Delay Control vs. Defrost Control

The fan-delay control and the primary defrost control perform related but separate functions.

• Defrost Control: Manages when the refrigeration system enters or exits the applicable defrost cycle.
• Fan Delay Control: Helps determine when the evaporator fans can resume operation after defrost.

A problem in either circuit can produce abnormal post-defrost operation, so both areas should be evaluated during service.

Inspect the Evaporator Fan Motors

If the fan-delay control is switching correctly but airflow does not resume, inspect the evaporator fan motors and related mechanical components.

Check for:

• Failed fan motors
• Motor overheating
• Loose wiring
• Damaged fan blades
• Ice obstructing the blade
• Worn bearings
• Motor shaft binding
• Incorrect fan rotation

Inspect the Defrost System

Fan-delay problems can sometimes be secondary to another defrost-system condition. If the evaporator remains heavily iced after defrost, technicians should inspect the entire system.

Possible areas include:

• Defrost heater
• Defrost timer or electronic controller
• Defrost termination control
• Drain system
• Evaporator fan operation
• Door gasket condition
• Warm-air infiltration

Inspect Wiring & Electrical Connections

A damaged electrical connection can prevent the control from operating correctly even when the control itself is functional.

Inspect for:

• Broken conductors
• Loose connectors
• Corrosion
• Heat-damaged insulation
• Pinched wiring
• Moisture contamination
• Loose crimps
• Evidence of previous improper repair

Correct damaged wiring or connectors before installing the replacement control.

Technician Checks Before Ordering

Before ordering American Panel 9E-1061, verify:

• OEM part number 9E-1061
• Complete American Panel equipment identification
• Equipment model where available
• Equipment serial number
• Original control markings
• Original wire and lead arrangement
• Mounting configuration
• Control location
• Defrost-system configuration
• Evaporator fan-control circuit

Do not substitute a similar-looking fan-delay control without verifying the switching function. Commercial refrigeration controls can use different operating characteristics, wiring arrangements, and equipment-specific sequences.

No Verified Public Model Fitment List

A reliable public model-fitment list is not currently available for American Panel 9E-1061 from the OEM parts source used for this listing. For that reason, compatibility should be confirmed using the 9E-1061 OEM number, equipment model, serial number, original control, wiring, and service documentation before ordering.

Commercial Refrigeration Applications

American Panel refrigeration systems and walk-in equipment are used in demanding foodservice and cold-storage environments including:

• Walk-in coolers
• Walk-in freezers
• Restaurants
• Commercial kitchens
• Supermarkets
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Cold-storage facilities
• Foodservice operations

Installation & Electrical Safety Notes

Disconnect electrical power before servicing commercial refrigeration fan or defrost controls.

Before removing the original 9E-1061 control, document:

• Control mounting location
• Wire positions
• Lead routing
• Connector arrangement
• Relationship to the evaporator and fan circuit

Compare the replacement American Panel 9E-1061 with the original component before installation.

After installation, qualified personnel should operate the equipment through the applicable refrigeration and defrost sequence and verify:

• Evaporator fans remain off when required
• Fans restart normally after defrost
• No abnormal electrical heating occurs
• Normal evaporator airflow is restored
• Temperature recovery occurs normally
• Fan operation remains consistent through repeated cycles

Why Correct American Panel OEM Identification Matters

Commercial refrigeration fan-delay controls can appear similar while using different switching characteristics, wiring arrangements, mounting methods, and equipment applications.

Using American Panel OEM part number 9E-1061 provides the clearest replacement reference when comparing the replacement with the original control.

Frequently Asked Questions

What is American Panel 9E-1061?

American Panel 9E-1061 is a genuine OEM defrost fan delay control used in compatible American Panel commercial refrigeration equipment.

What does a fan delay control do?

It helps keep the evaporator fans off during the appropriate post-defrost period and permits fan operation when the refrigeration system reaches the required condition.

Is 9E-1061 an OEM American Panel part?

Yes. Current OEM parts listings identify 9E-1061 as an American Panel genuine OEM replacement part.

Can a bad fan delay control keep the fans from running?

Yes. A failed control can prevent the fan circuit from returning to normal operation. Fan motors, wiring, relays, and defrost controls should also be inspected.

Can a bad fan delay cause the fans to restart too early?

Yes. Incorrect switching can contribute to premature evaporator fan operation after defrost.

Can fan-delay problems cause temperature issues?

They can contribute to abnormal airflow and temperature recovery after defrost, although other refrigeration-system problems can produce similar symptoms.

Should the defrost system be checked when replacing the fan delay?

Yes. The fan-delay control works as part of the larger defrost and evaporator-fan sequence, so related controls and heaters should be inspected as needed.

Does 9E-1061 have a verified model-fitment list?

A reliable model-fitment list is not currently published by the OEM parts source checked for this listing. Verify the equipment model and serial number before ordering.

Can I replace 9E-1061 with another fan-delay control that looks similar?

No. Verify OEM part number 9E-1061, switching function, wiring, mounting arrangement, equipment model, and serial number before ordering.

How do I confirm American Panel 9E-1061 is correct?

Verify OEM part number 9E-1061, the complete equipment identification, original control markings, wiring arrangement, mounting, and defrost/fan-control configuration before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration fan and defrost controls should be diagnosed and installed by qualified refrigeration service personnel.
