American Panel 9C-1250 Door Hinge Spring Kit

American Panel 9C-1250 Door Hinge Spring Kit

American Panel 9C-1250 identifies a replacement door hinge spring kit with a listed brushed-chrome finish. The kit is referenced for selected FW3677 door assemblies and should be matched to the original hinge mechanism.

Order by the complete part reference 9C-1250 and verify the original assembly before selecting a replacement.

Specifications

Weight is a catalog shipping reference; actual packed weight can vary.

Fitment and ordering details

Catalog model references include FW3677. Confirm the full equipment model, serial number and door revision before ordering; model references do not establish fit for every production version.

Compare the spring, rod, sleeve and end fittings with the original hinge assembly and parts diagram. Confirm the 9C-1250 reference, hinge configuration and door revision; this kit is not a complete replacement hinge.

Service symptoms and checks

A door that no longer returns or closes as expected can prompt an inspection of the hinge spring mechanism. Check door alignment, hinge wear, the latch and any separate closer before identifying the spring as the failed component. Dragging or a damaged gasket can also affect closing behavior.

Frequently asked questions

What is American Panel 9C-1250 used for?

It identifies a spring kit for a matching door hinge mechanism. Confirm the hinge assembly reference and door configuration before ordering.

Which model is referenced?

Catalog model references include FW3677. Confirm the full equipment model, serial number and door revision before ordering; model references do not establish fit for every production version.

What finish is listed?

The catalog lists brushed chrome. Match the kit reference and hinge construction first; finish alone does not establish compatibility.

Is this a complete hinge?

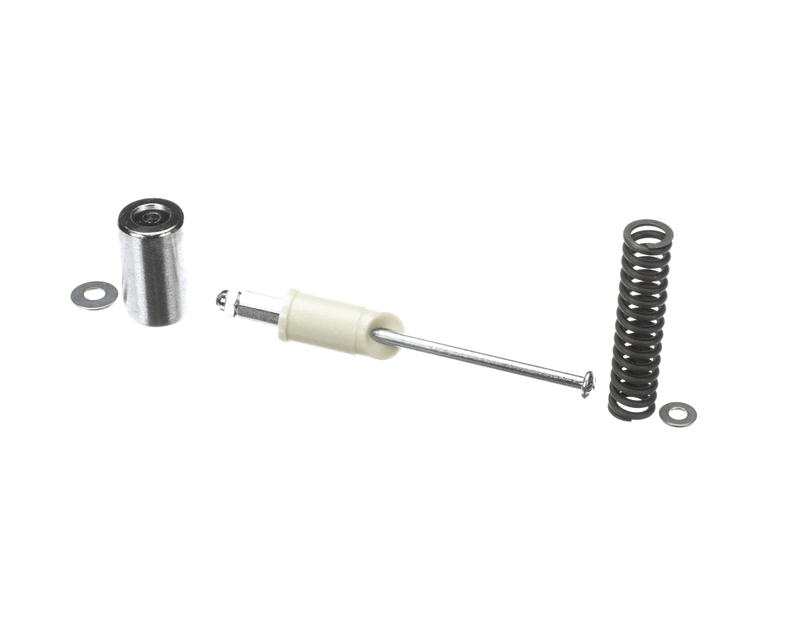

No. This listing is for the hinge spring kit. Compare the pictured spring, rod, sleeve and fittings with the repair requirement and check the hinge body separately.

What should be checked before installation?

Compare the spring, rod, sleeve and end fittings with the original hinge assembly and parts diagram. Confirm the 9C-1250 reference, hinge configuration and door revision; this kit is not a complete replacement hinge. Have a qualified technician support the door and follow the manufacturer procedure for handling spring tension.

How can I get help verifying 9C-1250?

Call PartsDirectOnline at 631-873-0509 with reference 9C-1250, the door model and serial number, and details of the original hinge assembly.

California Proposition 65 warning: This product can expose you to nickel, which California identifies as a cancer and reproductive-harm hazard. See P65Warnings.ca.gov.
