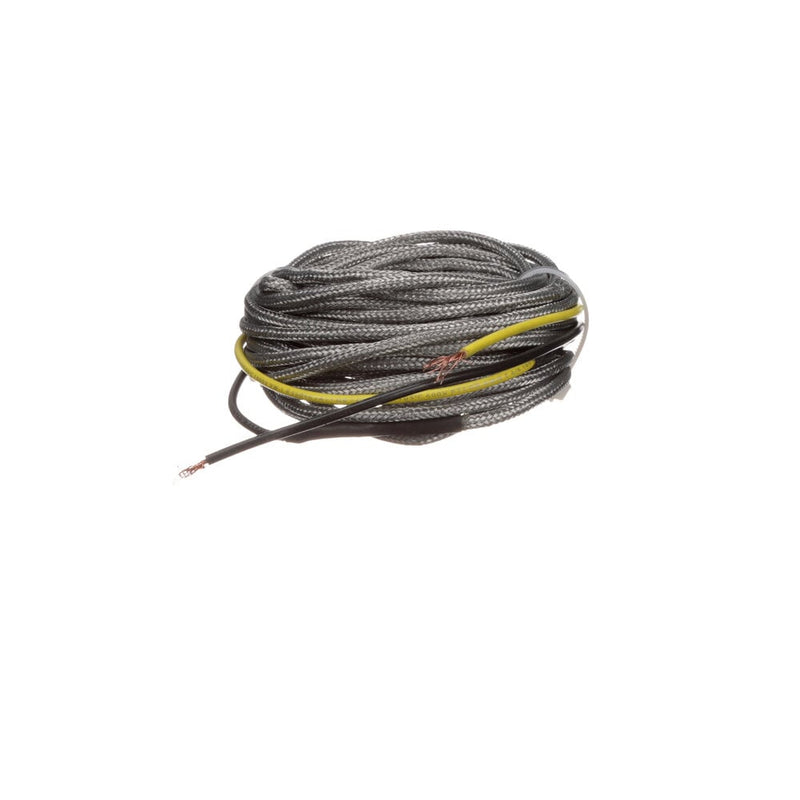

American Panel 9B-1020 Door Frame Heater Wire

American Panel 9B-1020 Door Frame Heater Wire

American Panel 9B-1020 identifies a replacement heater wire for a matching commercial refrigeration door-frame application. The FW3077 model reference helps narrow the selection, while the original heater number and equipment serial number establish the correct version.

Order by the complete part reference 9B-1020 and verify the original assembly before selecting a replacement.

Specifications

Weight is a catalog shipping reference; actual packed weight can vary.

Fitment and ordering details

Catalog model references include FW3077. Confirm the full equipment model, serial number and door revision before ordering; model references do not establish fit for every production version.

Confirm the 9B-1020 reference in the door assembly parts list. Compare the installed wire route, connection style and supply rating before removal; length, wattage and voltage are not specified in this listing.

Service symptoms and checks

Persistent condensation or frost around a door frame can prompt an inspection of the heater circuit. A technician should also check the door seal, alignment, wiring and heater controls. Moisture around the opening alone does not prove that the heater wire has failed.

Frequently asked questions

What is American Panel 9B-1020 used for?

It identifies a door-frame heater wire for matching commercial refrigeration equipment. A correctly functioning frame heater helps limit condensation or frost around the door opening.

How do I confirm the correct heater wire?

Confirm the 9B-1020 reference in the door assembly parts list. Compare the installed wire route, connection style and supply rating before removal; length, wattage and voltage are not specified in this listing.

Which equipment models are referenced?

Catalog model references include FW3077. Confirm the full equipment model, serial number and door revision before ordering; model references do not establish fit for every production version.

Does this include the complete door frame?

This listing identifies the heater wire. Confirm any additional retainers, connectors, insulation or frame components required for the repair separately.

Can a longer heater wire be cut to fit?

Do not shorten or modify a heater wire unless the equipment manufacturer explicitly permits it. Use the specified replacement and have a qualified technician isolate power and follow the service instructions.

What information helps verify 9B-1020?

Provide part reference 9B-1020, the full model and serial number, and the original heater label or door diagram. Call PartsDirectOnline at 631-873-0509 for help checking the order.
