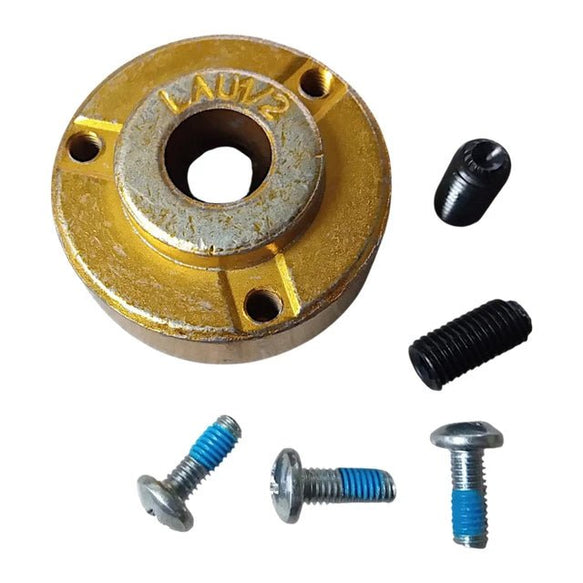

1/2" Bore Steel Fan Blade Hub – Commercial Refrigeration

1/2" Bore Steel Fan Blade Hub for Commercial Refrigeration Fan Assemblies

This 1/2-inch bore steel fan blade hub is a replacement mounting component designed for compatible commercial refrigeration and cooling-system fan assemblies. The hub provides the connection point between the applicable fan blade and a 1/2" motor shaft, helping secure the blade so rotational force can be transferred from the motor to the fan.

Correct hub selection is important to safe, reliable fan operation. A hub with the wrong shaft bore, blade mounting pattern, offset, or hardware arrangement can cause blade wobble, vibration, slipping, improper alignment, or damage to the fan motor and surrounding components.

Before ordering, compare the original hub carefully and verify the 1/2" shaft bore, blade mounting pattern, hub dimensions, shaft engagement, and required fan-blade configuration.

Product Details

• Part Type: Fan Blade Steel Hub
• Shaft Bore: 1/2"
• Material: Steel Hub Assembly
• Application: Commercial Refrigeration / Cooling Fan Assemblies
• Function: Fan Blade to Motor Shaft Mounting

What a Fan Blade Hub Does

The fan blade hub connects the fan blade to the applicable motor shaft. As the motor rotates, the hub transfers that motion to the blade so airflow can be produced through the refrigeration or cooling system.

A properly matched hub helps support:

• Secure fan-blade mounting
• Correct blade alignment
• Consistent transfer of motor rotation
• Reduced blade wobble
• Reduced vibration
• Proper shaft engagement
• Dependable refrigeration airflow

1/2-Inch Shaft Bore

This hub is identified with a 1/2-inch bore for the applicable motor shaft. Shaft diameter is one of the most important fitment measurements when selecting a replacement fan hub.

Do not force an incorrectly sized hub onto a motor shaft. A bore that is too large can allow excessive play or slipping, while a bore that is too small will not mount correctly and can damage the hub or shaft.

Steel Fan Hub Construction

The hub uses a steel mounting structure intended to provide a rigid connection between the fan blade and motor shaft. The original hub design should still be matched for bore size, mounting-hole pattern, offset, blade attachment, and shaft-locking arrangement.

Common Signs of a Damaged Fan Blade Hub

Qualified commercial refrigeration technicians may inspect the hub when troubleshooting conditions such as:

• Fan blade wobbles during operation
• Blade slips on the motor shaft
• Fan produces excessive vibration
• Abnormal rattling or mechanical noise
• Hub is visibly cracked, bent, or distorted
• Blade mounting screws repeatedly loosen
• Set screw will not remain secure
• Internal bore is worn or damaged
• Hub no longer centers the fan blade correctly
• Fan blade contacts the shroud or guard

These symptoms do not automatically confirm hub failure. A bent motor shaft, worn motor bearings, damaged fan blade, loose motor mount, incorrect blade pitch, or shroud alignment problem can create similar symptoms.

Why Hub Alignment Matters

The hub must center the fan blade correctly on the motor shaft. Even small alignment problems can create vibration that places additional load on the motor bearings and fan assembly.

Improper hub installation can contribute to:

• Uneven fan rotation
• Blade wobble
• Motor-bearing wear
• Noise
• Fan-shroud contact
• Reduced airflow
• Premature fan-component failure

Inspect the Motor Shaft

Before installing a new 1/2" fan hub, inspect the motor shaft carefully.

Check for:

• Bent shaft
• Excessive shaft play
• Worn flats or key surfaces where applicable
• Corrosion
• Damaged threads where applicable
• Scoring or wear at the previous hub location
• Motor-bearing movement

A damaged motor shaft can cause a new hub and fan blade to run out of alignment.

Inspect the Fan Blade

The fan blade should also be inspected before reusing it with the replacement hub.

Look for:

• Bent blades
• Cracks
• Distorted mounting holes
• Loose mounting hardware
• Damage around the blade center
• Uneven blade pitch
• Evidence of previous shroud contact

A damaged or unbalanced fan blade can create vibration even when the hub is installed correctly.

Technician Checks Before Ordering

Before ordering this fan blade hub, verify:

• 1/2" motor shaft diameter
• Original hub bore
• Blade mounting-hole pattern
• Number of blade mounting points
• Hub diameter
• Hub depth / offset
• Set-screw or shaft-locking arrangement
• Original fan-blade configuration
• Motor shaft condition
• Required fan alignment

Do not order by shaft size alone. Two hubs with a 1/2" bore may still have different blade mounting patterns, offsets, diameters, or hardware configurations.

Hub vs. Fan Blade Fitment

The hub and blade must work together as one properly centered rotating assembly. Matching the shaft bore alone does not guarantee the blade will bolt correctly to the hub.

Compare the original assembly for:

• Mounting-hole spacing
• Fastener size
• Blade-center opening
• Hub offset
• Blade orientation
• Overall assembled clearance

Installation Notes

Disconnect electrical power before servicing any commercial refrigeration fan assembly.

Before removing the original hub, document:

• Hub position on the shaft
• Fan-blade orientation
• Blade mounting position
• Set-screw location
• Shaft engagement depth
• Clearance from the fan guard or shroud

Install the replacement hub securely and make sure the blade remains centered. Tighten mounting hardware appropriately for the original fan assembly.

Before restoring power, rotate the fan by hand and verify:

• Blade turns freely
• No blade wobble is visible
• Hub remains centered
• Blade clears the guard and shroud
• No wiring or surrounding components interfere with rotation

After power is restored, verify smooth operation without abnormal vibration or noise.

Commercial Refrigeration Applications

This type of fan blade hub may be used in compatible fan assemblies found in:

• Commercial refrigerators
• Commercial freezers
• Walk-in coolers
• Walk-in freezers
• Reach-in refrigeration
• Condensing units
• Evaporator fan assemblies
• Commercial cooling equipment
• Foodservice refrigeration systems

Why Exact Fan Hub Identification Matters

Commercial fan hubs can look similar while having different shaft bores, blade mounting patterns, offsets, depths, locking methods, and equipment applications.

For this replacement, the primary verified specification is the 1/2" shaft bore. Match the original mounting pattern and physical hub configuration before ordering.

Frequently Asked Questions

What size motor shaft does this fan hub fit?

This hub is identified for a 1/2-inch motor shaft.

Is this a fan blade or only the hub?

This listing is for the fan blade hub assembly, not the fan blade itself.

What does a fan blade hub do?

The hub connects the fan blade to the motor shaft and transfers rotational force from the motor to the blade.

Can a worn hub cause fan vibration?

Yes. A loose, distorted, or worn hub can cause blade wobble, misalignment, and excessive vibration.

Can I use this on any 1/2" motor shaft?

Not automatically. The blade mounting pattern, hub offset, locking arrangement, and fan configuration must also match.

Should I inspect the motor shaft before installing the new hub?

Yes. A bent or worn motor shaft can cause improper alignment and damage the replacement hub or blade.

Should I inspect the fan blade too?

Yes. A bent, cracked, or unbalanced blade can produce vibration even with a new hub.

How do I know if my existing hub is worn?

Common signs include excessive play on the shaft, damaged bore surfaces, blade wobble, slipping, loose hardware, or visible hub deformation.

How do I confirm this is the correct replacement?

Verify the 1/2" shaft bore, mounting-hole pattern, hub dimensions, blade interface, set-screw arrangement, and original fan assembly before ordering.

Is professional installation recommended?

Qualified commercial refrigeration personnel can verify shaft condition, hub alignment, blade mounting, clearance, and fan operation during replacement.
